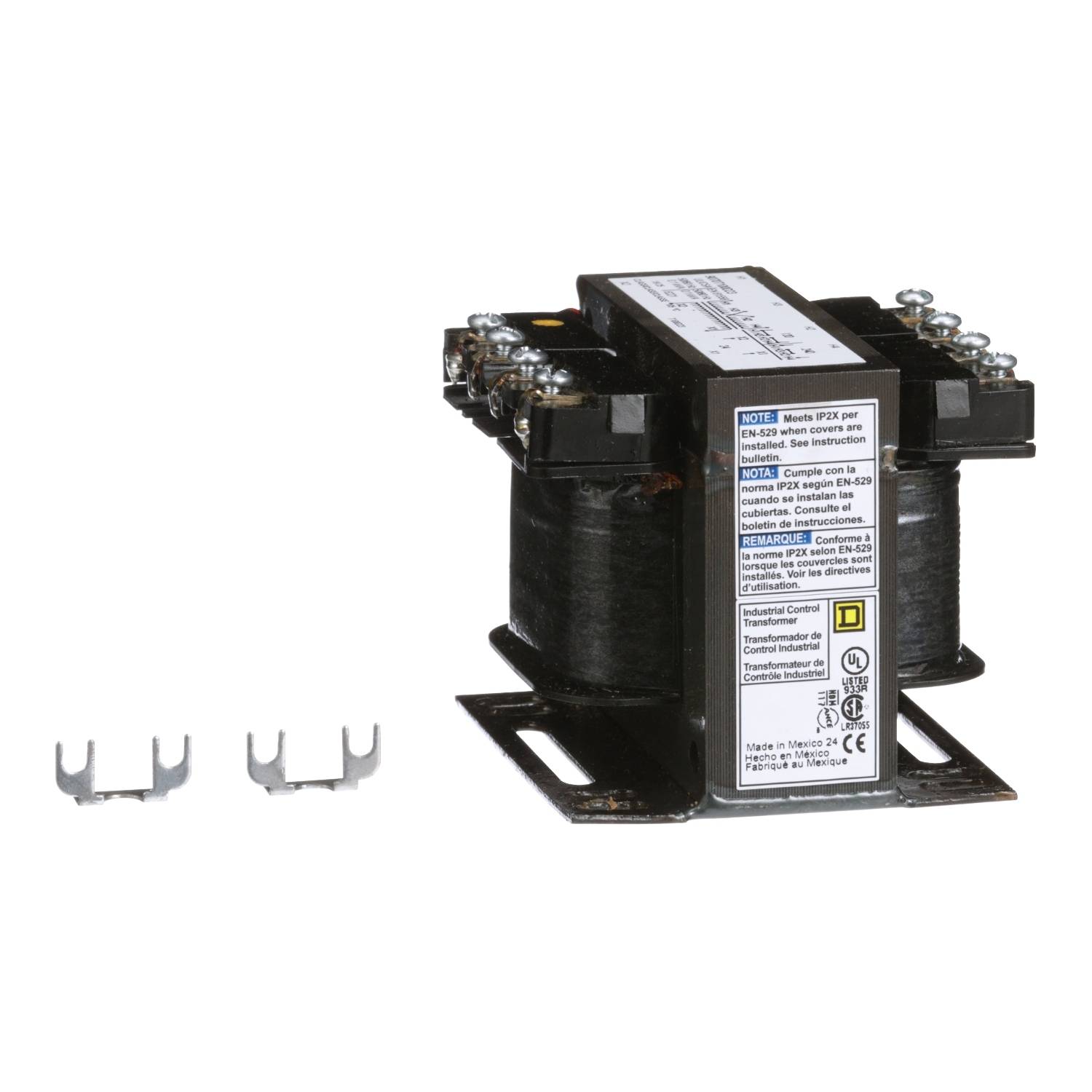

Schneider Electric 9070T100D23 Control transformer 1 x 24 V AC 100 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
14-day return policy included
Highlights & Details
Converter controller type T, 100VA, 120/240V AC primary, 24V AC secondary
- 1 x 24 V AC
- 100 VA
Technical specifications
- Product type
Control transformer
- Output voltage
24 V AC
- No. of outputs
1 x
- No. of inputs
1 x
100 VA
- Connection
Screw terminal
- Width
85.9 mm
- Height
73.4 mm
- Length
84.8 mm
- Dim
(L x W x H) 84.8 x 85.9 x 73.4 mm
- Output voltage (number x voltage)
1 x 24 V AC
- Content
1 pc(s)
- Dimensions
85.9mm x 73.4mm x 84.8mm (BxHxT) mm
- Type
9070T100D23
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2927203 Schneider Electric 9070T100D23 Control transformer 1 x 24 V AC 100 VA
Datasheet 2927203 Schneider Electric 9070T100D23 Control transformer 1 x 24 V AC 100 VA
User & Safety Instructions
User & Safety Instructions 2927203 Schneider Electric 9070T100D23 Control transformer 1 x 24 V AC 100 VA
Information
Information 2927203 Schneider Electric 9070T100D23 Control transformer 1 x 24 V AC 100 VA
Information 2927203 Schneider Electric 9070T100D23 Control transformer 1 x 24 V AC 100 VA
Information 2927203 Schneider Electric 9070T100D23 Control transformer 1 x 24 V AC 100 VA
Information 2927203 Schneider Electric 9070T100D23 Control transformer 1 x 24 V AC 100 VA
Description
Type T is our most popular and complete range of control transformers. They have unsurpassed design innovations for top performance and are made from the most modern insulation materials. The type T control transformer is the best choice when size and cost are important. Schneider Electric offers transformers with internally pre-wired 24 inch primary and secondary lines instead of terminal boards to make installation easier and faster for many applications. These are only available for applications with a primary and a secondary voltage. Schneider Electric offers type T and EO transformers in the multitap version. This industrial control transformer has a rated power of 100VA and is 1-phase. This transformer has a primary voltage of 120 x 240V AC and a secondary voltage of 24V AC. The transformer complies with UL, and CSA standards. The dimensions for this product are 85.9mm x 73.4mm x 84.8mm (WxHxD). This transformer has screw terminal connections. The winding material used for this product is copper. This product is compatible with FSC1.
