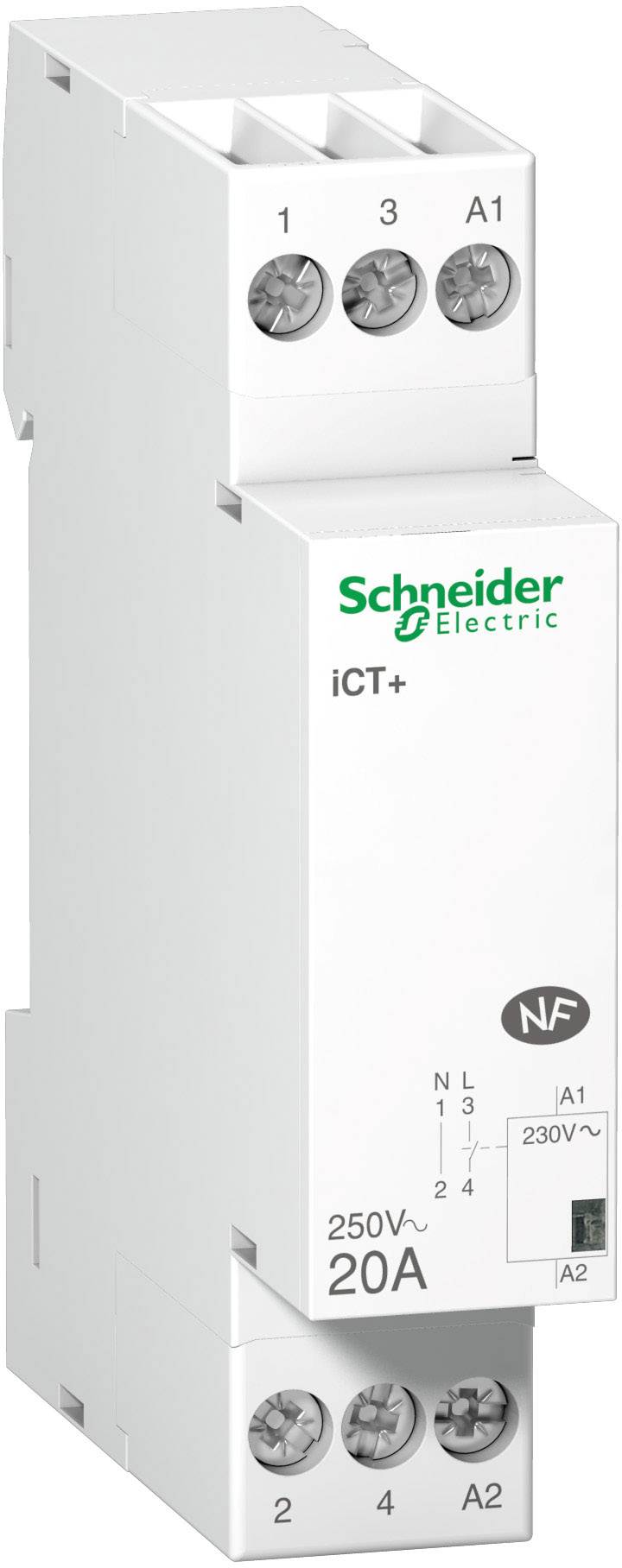

Schneider Electric A9C15031 Contactor 1 maker 3.6 kW 250 V AC 20 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
1-pin
Nominal voltage
250 V AC
Current load
20 A
Power
3.6 kW
Technical specifications
- Product type
Contactor
- Type
A9C15031
- No. of pins
1-pin
- Contact type
1 maker
- Auxiliary contact type
1 maker
- Nominal voltage
250 V AC
- Control voltage (min.)
230 V AC
- Control voltage (max.)
230 V AC
- Control voltage range
230 - 230 V AC
- Switching voltage (max.)
250 V AC
- Permanent current (max.)
20 A
- Current load
20 A
3.6 kW
- Mounting type
Screw-fit
- Durability
5000000 cycles
IP40
IP20
- Min. temperature
-5 °C
- Max. temperature
+55 °C
- Width
18 mm
- Height
81 mm
- Depth
60 mm
- Dim
(W x H x D) 18 x 81 x 60 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1861814 Schneider Electric A9C15031 Contactor 1 maker 3.6 kW 250 V AC 20 A 1 pc(s)
Description
Cutter A9C 15031 pre-high-performance protection iCT+1-pin N1S20A 230VAC
