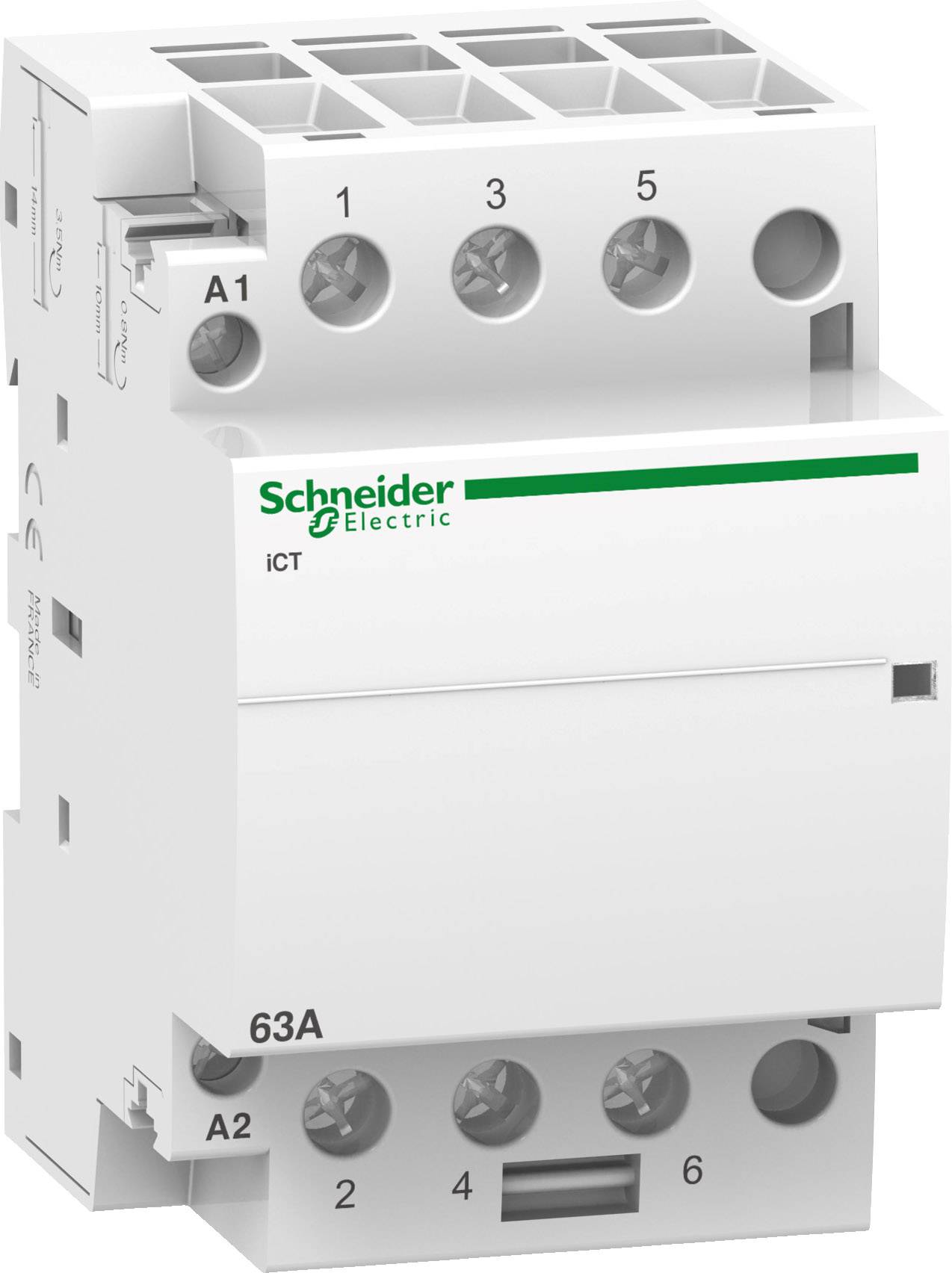

Schneider Electric A9C20663 Remote switch 3 makers 2.1 W 400 V AC 63 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
3-pin
Nominal voltage
400 V AC
Current load
63 A
Power
2.1 W
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
A9C20663
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Nominal voltage
400 V AC
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
2.1 W
- Permanent current (max.)
63 A
- Current load
63 A
2.1 W
- Mounting type
Screw-fit
- Electrical lifespan
100000 cycles
- Durability
1 000 000 cycles
IP40
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
54 mm
- Height
85 mm
- Depth
68.5 mm
- Dim
(W x H x D) 54 x 85 x 68.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1862833 Schneider Electric A9C20663 Remote switch 3 makers 2.1 W 400 V AC 63 A Piece 1 pc(s)
Description
Installation protection iCT 63A 3S 220/240 V 60Hz. Application of protection: Motor - Heating - lighting product range: iCT product or component type: Protection - Short description of the device: iCT description of Poles: 3P-type: AC-Use Category: AC-1 royalty? In accordance with EN 60947-4-1, AC-3 royalty? In accordance with EN 60947-4-1, AC-5A royalty? In accordance with EN 60947-4-1, AC-5B royalty? In accordance with EN 60947-4-1, AC-7A royalty? EN 61095, AC-7A royalty? IEC 1095, AC-7B royalty? EN 61095, AC-7B royalty? IEC 1095-Control Type: Remote Control
