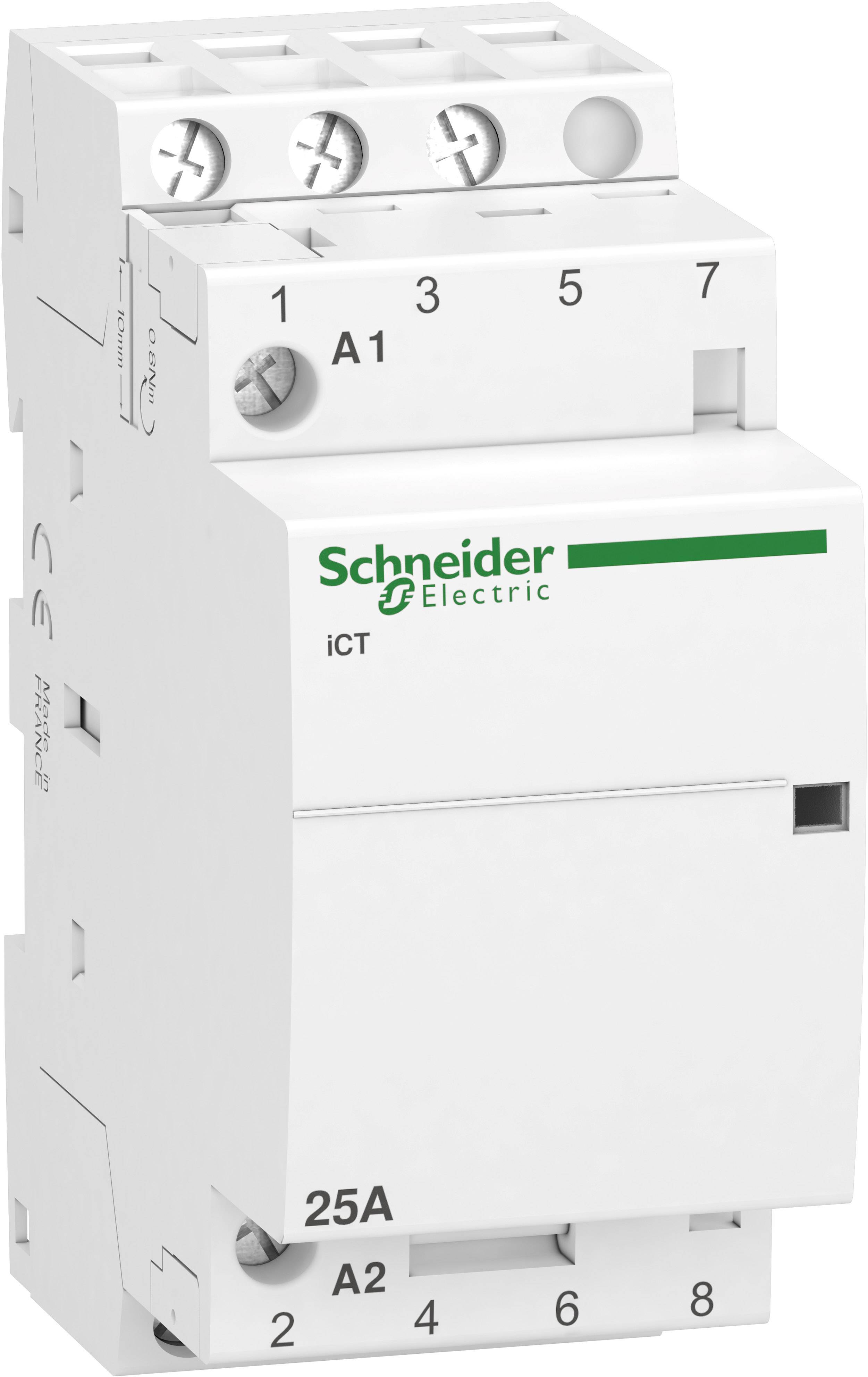

Schneider Electric A9C20833 Remote switch 3 makers 1.6 W 400 V AC 25 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
3-pin
Nominal voltage
400 V AC
Current load
25 A
Power
1.6 W
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
A9C20833
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Nominal voltage
400 V AC
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
5700 W
- Permanent current (max.)
25 A
- Current load
25 A
1.6 W
- Mounting type
Screw-fit
- Electrical lifespan
100000 cycles
- Durability
1 000 000 cycles
IP40
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
36 mm
- Height
81 mm
- Depth
60 mm
- Dim
(W x H x D) 36 x 81 x 60 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1870545 Schneider Electric A9C20833 Remote switch 3 makers 1.6 W 400 V AC 25 A Piece 1 pc(s)
Description
Cutter A9C 20833 installation protection iCT 25A 3S 220/240 V 50 Hz
