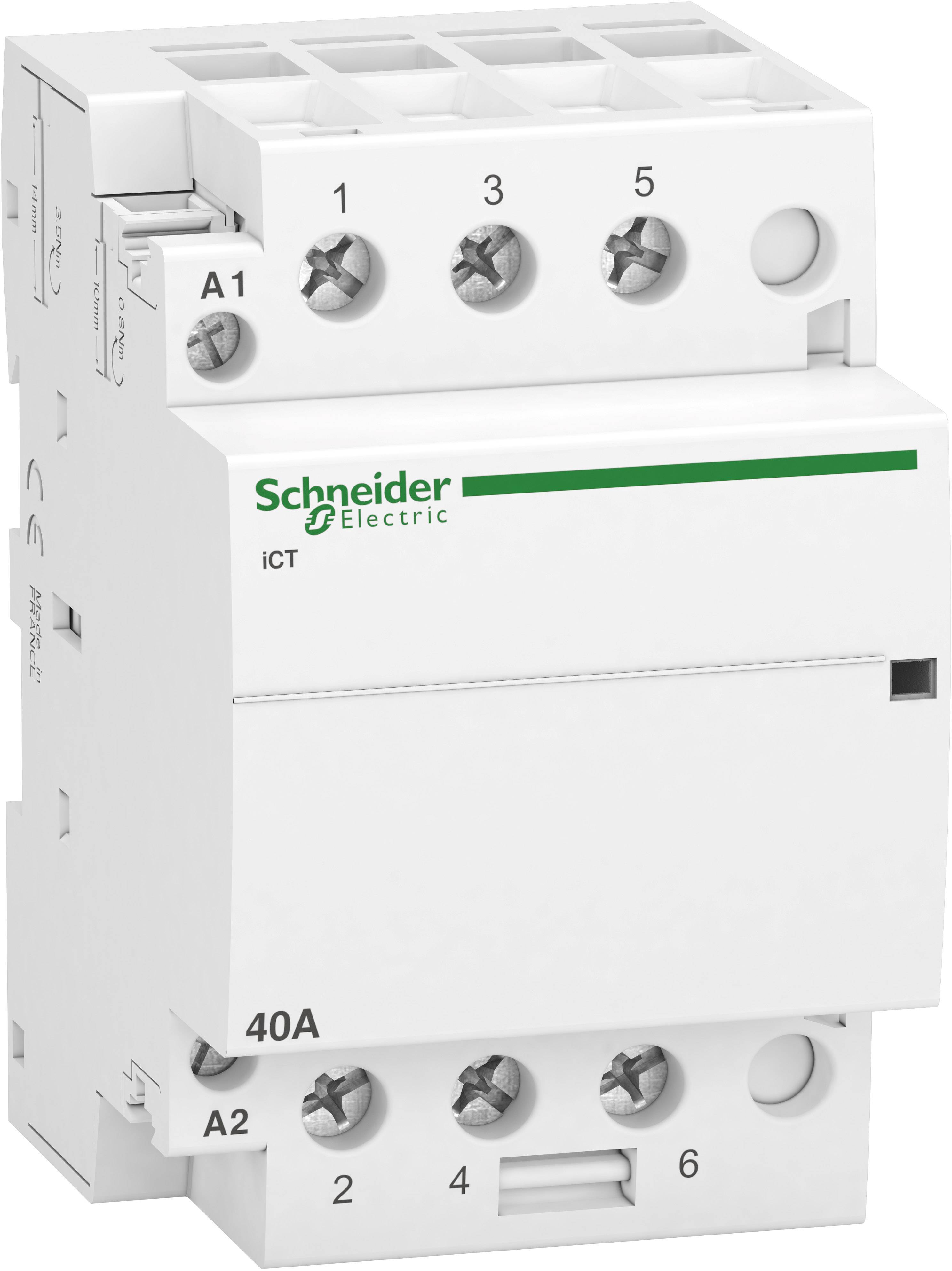

Schneider Electric A9C20843 Remote switch 3 makers 2.1 W 400 V AC 40 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
3-pin
Nominal voltage
400 V AC
Current load
40 A
Power
2.1 W
Technical specifications
- Product type
Remote switch
- Type
A9C20843
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
400 V AC
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
- Current load
40 A
2.1 W
- Mounting type
Screw-fit
- Electrical lifespan
100000 cycles
- Durability
1 000 000 cycles
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
54 mm
- Height
85 mm
- Depth
60 mm
- Dim
(W x H x D) 54 x 85 x 60 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1870550 Schneider Electric A9C20843 Remote switch 3 makers 2.1 W 400 V AC 40 A 1 pc(s)
Description
Cutter A9C 20843 installation protection iCT 40A 3S 220/240 V 50Hz
