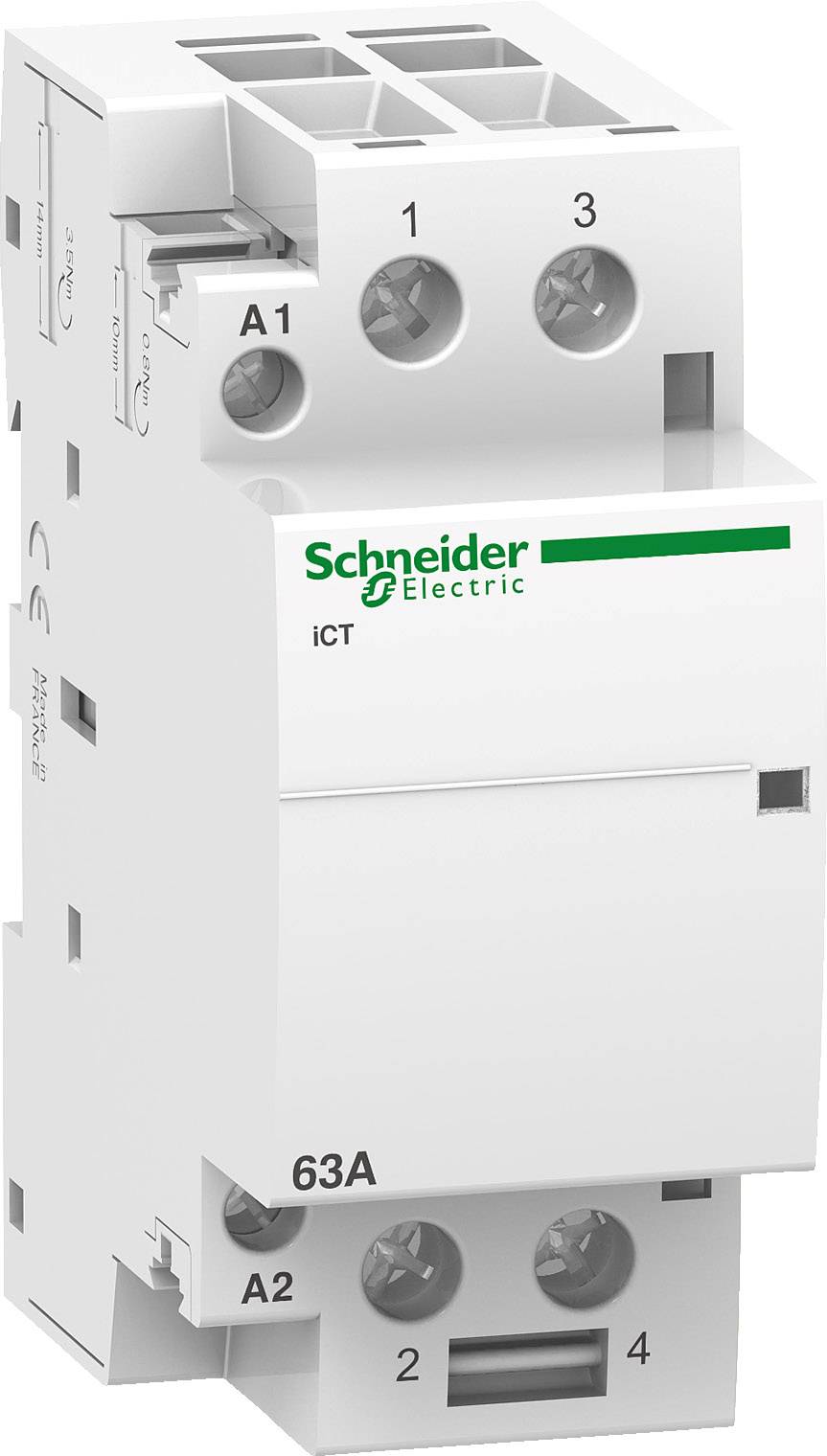

Schneider Electric A9C20862 Remote switch 2 makers 1.6 W 250 V AC 63 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
2-pin
Nominal voltage
250 V AC
Current load
63 A
Power
1.6 W
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
A9C20862
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Nominal voltage
250 V AC
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
- Switching voltage (max.)
250 V AC
- Max. switching capacity
1.6 W
- Permanent current (max.)
63 A
- Current load
63 A
1.6 W
- Mounting type
Screw-fit
- Electrical lifespan
100000 cycles
- Durability
1 000 000 cycles
IP40
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
36 mm
- Height
85 mm
- Depth
68.5 mm
- Dim
(W x H x D) 36 x 85 x 68.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1870553 Schneider Electric A9C20862 Remote switch 2 makers 1.6 W 250 V AC 63 A Piece 1 pc(s)
Description
Cutter A9C 20862 installation protection iCT 63A 2S 220/240 V 50 Hz
