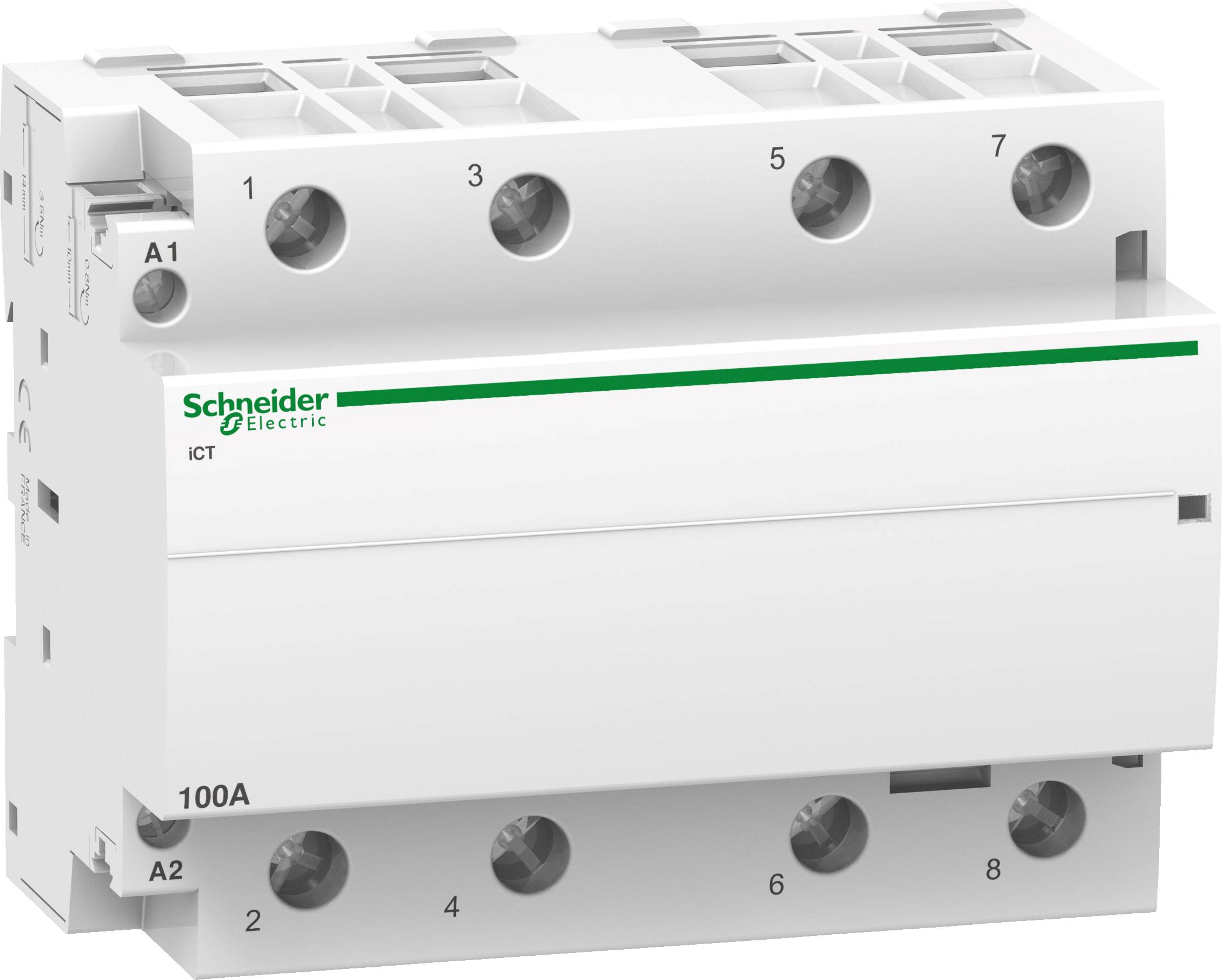

Schneider Electric A9C20884 Remote switch 4 makers 4.2 W 400 V AC 100 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
4-pin
Nominal voltage
400 V AC
Current load
100 A
Power
4.2 W
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
A9C20884
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Nominal voltage
400 V AC
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
22500 W
- Permanent current (max.)
100 A
- Current load
100 A
4.2 W
- Mounting type
Screw-fit
- Electrical lifespan
30000 cycles
IP40
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
108 mm
- Height
85 mm
- Depth
60 mm
- Dim
(W x H x D) 108 x 85 x 60 mm
- Content
1 pc(s)
- Weight
0.62
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1870559 Schneider Electric A9C20884 Remote switch 4 makers 4.2 W 400 V AC 100 A Piece 1 pc(s)
Description
Installation protection 4S 100A 220-240 VAC A9C 208
