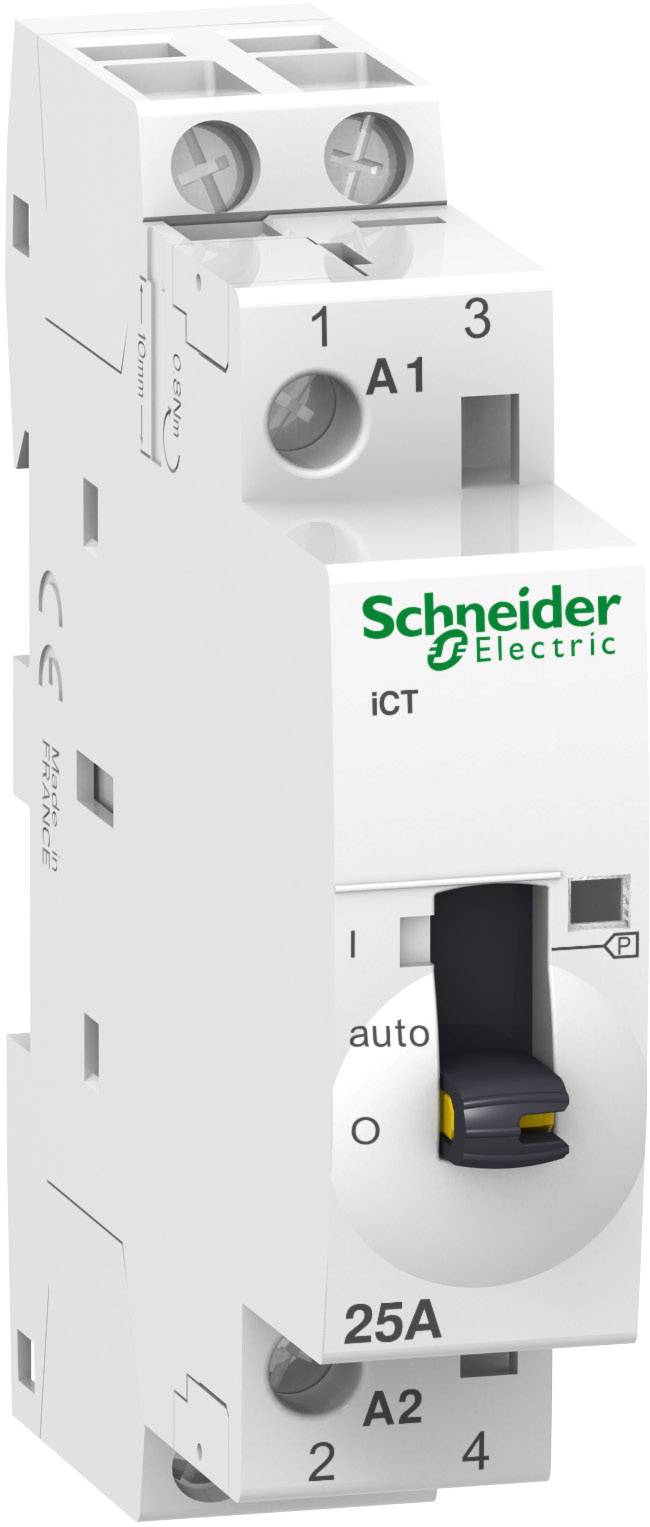

Schneider Electric A9C21132 Remote switch 2 makers 1.3 W 250 V AC 25 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
2-pin
Nominal voltage
250 V AC
Current load
25 A
Power
1.3 W
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
A9C21132
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Nominal voltage
250 V AC
- Control voltage (min.)
24 V AC
- Control voltage (max.)
24 V AC
- Control voltage range
24 - 24 V AC
- Switching voltage (max.)
250 V AC
- Max. switching capacity
1.3 W
- Permanent current (max.)
25 A
- Current load
25 A
1.3 W
- Mounting type
Screw-fit
- Electrical lifespan
100000 cycles
- Durability
1 000 000 cycles
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
18 mm
- Height
81 mm
- Depth
60 mm
- Dim
(W x H x D) 18 x 81 x 60 mm
- Content
1 pc(s)
- Weight
0.12
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1861830 Schneider Electric A9C21132 Remote switch 2 makers 1.3 W 250 V AC 25 A Piece 1 pc(s)
Description
Cutter A9C20297 Installation protection iCT 25A 2S 24V 50Hz MO
