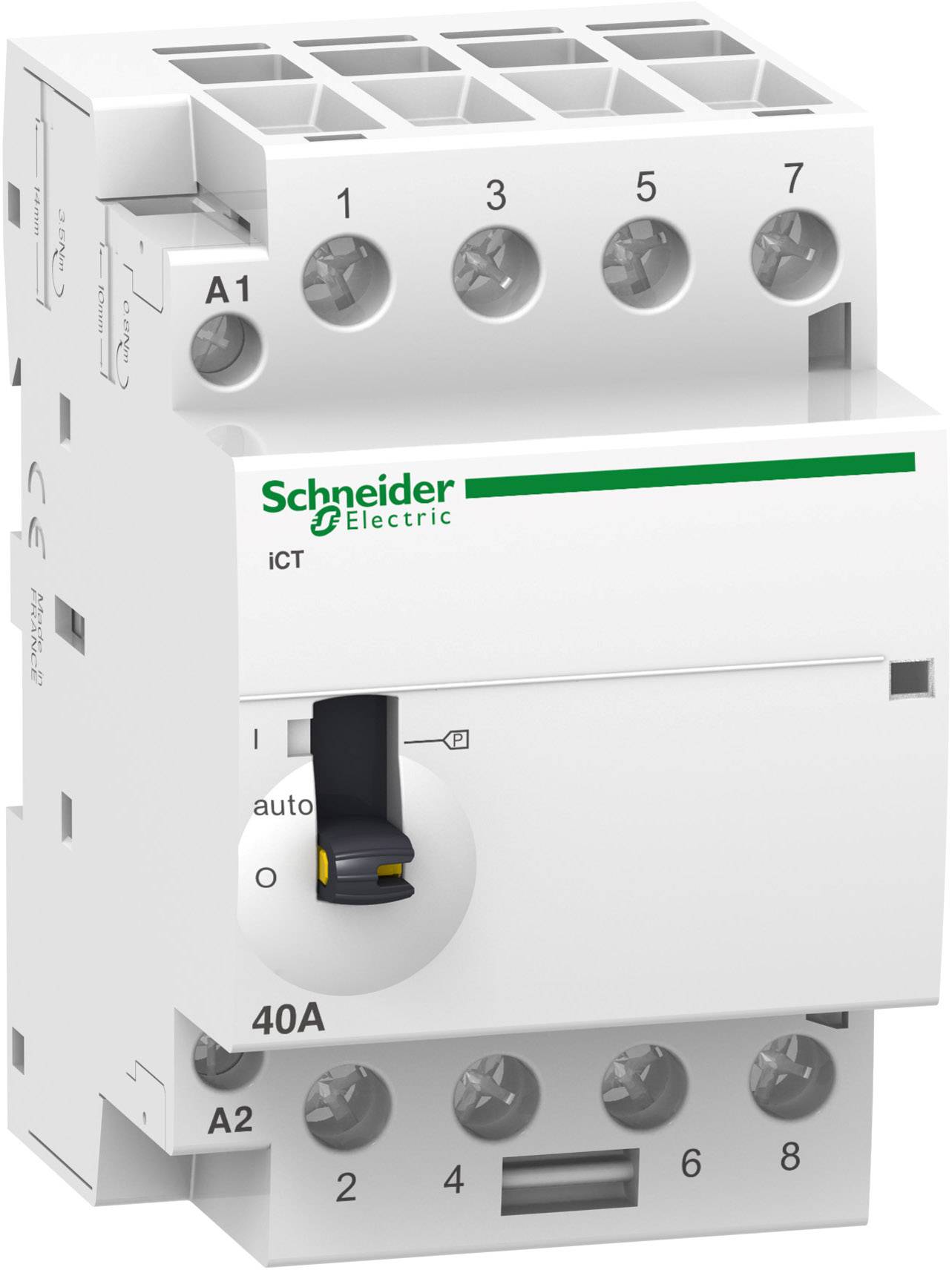

Schneider Electric A9C21144 Remote switch 4 makers 2.1 W 400 V AC 40 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
4-pin
Nominal voltage
400 V AC
Current load
40 A
Power
2.1 W
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
A9C21144
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Nominal voltage
400 V AC
- Control voltage (min.)
24 V AC
- Control voltage (max.)
24 V AC
- Control voltage range
24 - 24 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
2.1 W
- Permanent current (max.)
40 A
- Current load
40 A
2.1 W
- Mounting type
Screw-fit
- Electrical lifespan
30000 cycles
- Durability
1 000 000 cycles
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
54 mm
- Height
85 mm
- Depth
73.5 mm
- Dim
(W x H x D) 54 x 85 x 73.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1861833 Schneider Electric A9C21144 Remote switch 4 makers 2.1 W 400 V AC 40 A Piece 1 pc(s)
Description
Cutter A9C 21144 installation protection iCT 40A 4S 24V 50Hz MO
