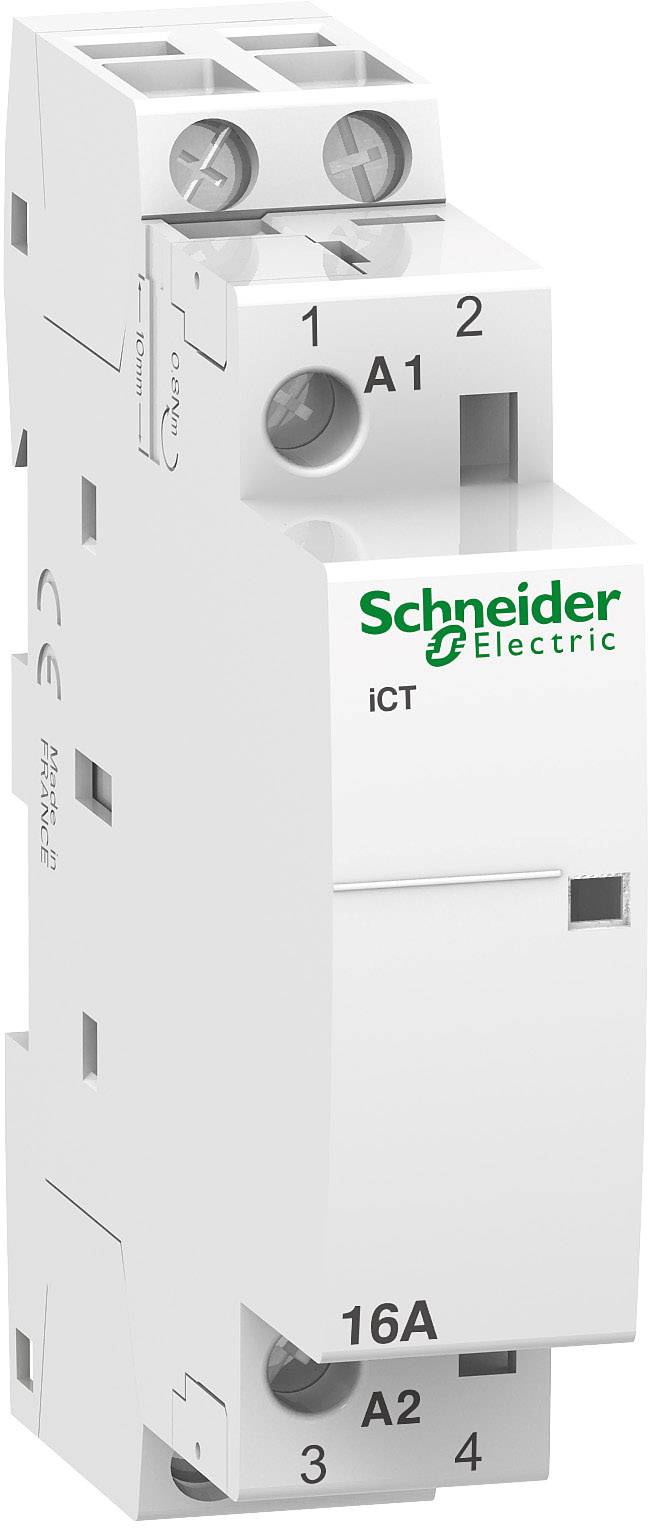

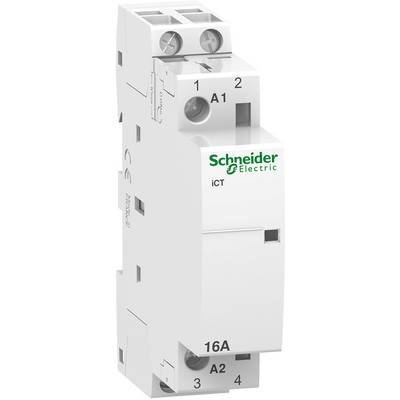

Schneider Electric A9C22212 Remote switch 2 makers 1.3 W 250 V AC 16 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
2-pin
Nominal voltage
250 V AC
Current load
16 A
Power
1.3 W
Technical specifications
- Product type
Remote switch
- Type
A9C22212
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Nominal voltage
250 V AC
- Control voltage (min.)
48 V AC
- Control voltage (max.)
48 V AC
- Control voltage range
48 - 48 V AC
- Switching voltage (max.)
250 V AC
- Max. switching capacity
1.3 W
- Permanent current (max.)
16 A
- Current load
16 A
1.3 W
- Mounting type
Screw-fit
- Electrical lifespan
30000 cycles
- Durability
1 000 000 cycles
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
18 mm
- Height
81 mm
- Depth
68.5 mm
- Dim
(W x H x D) 18 x 81 x 68.5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1861839 Schneider Electric A9C22212 Remote switch 2 makers 1.3 W 250 V AC 16 A 1 pc(s)
Description
Cutter A9C 22212 installation protection iCT 16 A 2S 48V 50Hz
