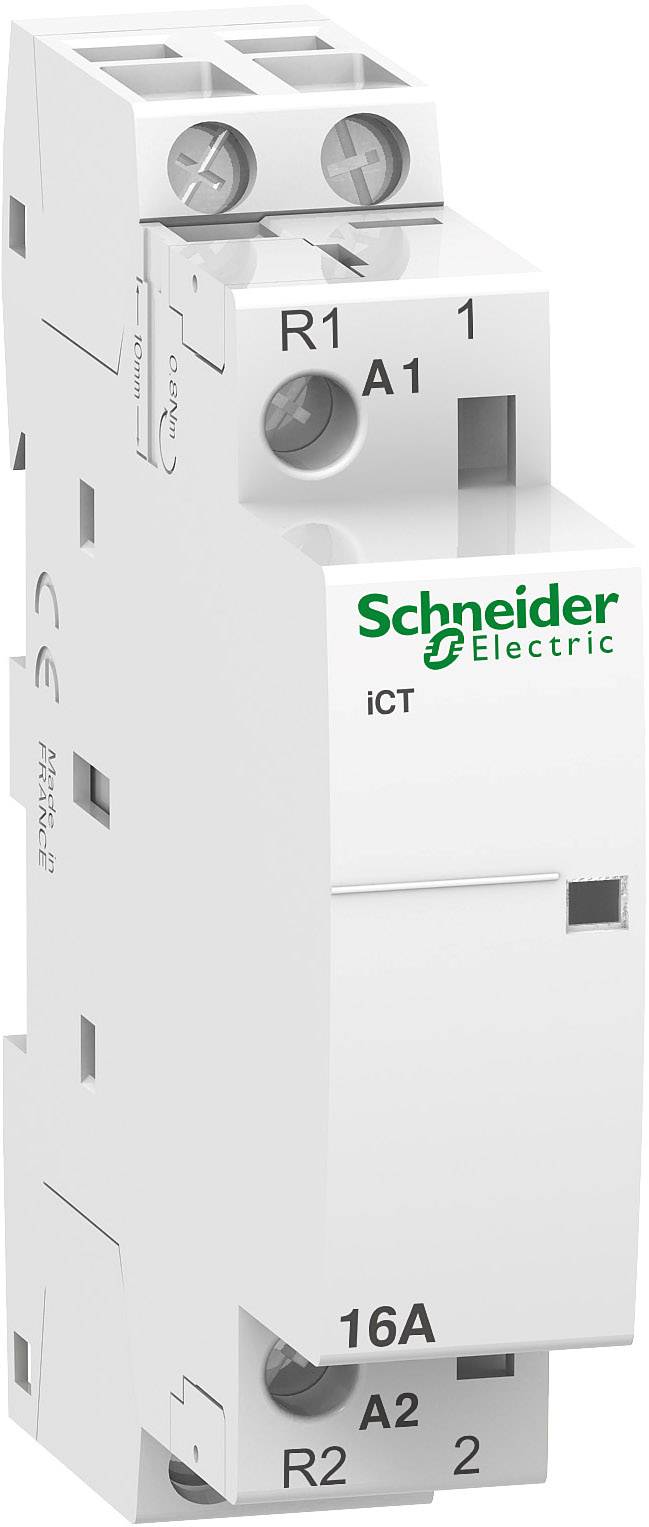

Schneider Electric A9C22615 Remote switch 1 maker, 1 breaker 0.9 W 250 V AC 16 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
2-pin
Nominal voltage
250 V AC
Current load
16 A
Power
0.9 W
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
A9C22615
- No. of pins
2-pin
- Contact type
1 maker
1 breaker
- Nominal voltage
250 V AC
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
- Switching voltage (max.)
250 V AC
- Max. switching capacity
0.9 W
- Permanent current (max.)
16 A
- Current load
16 A
0.9 W
- Mounting type
Screw-fit
- Electrical lifespan
100000 cycles
- Durability
1 000 000 cycles
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
18 mm
- Height
81 mm
- Depth
68.5 mm
- Dim
(W x H x D) 18 x 81 x 68.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1862835 Schneider Electric A9C22615 Remote switch 1 maker, 1 breaker 0.9 W 250 V AC 16 A Piece 1 pc(s)
Description
Installation protection iCT 16A 1S1Ö 220/240 V 60Hz. Application of protection: Motor - Heating - lighting product range: iCT product or component type: Protection - Short description of the device: iCT description of Poles: 2P-Zus. of the Polkontakts: 1 S + 1 O-type: AC-Use Category: AC-1 royalty? In accordance with EN 60947-4-1, AC-3 royalty? In accordance with EN 60947-4-1, AC-5A royalty? In accordance with EN 60947-4-1, AC-5B royalty? In accordance with EN 60947-4-1, AC-7A royalty? EN 61095, AC-7A royalty? IEC 1095, AC-7B royalty? EN 61095, AC-7B royalty? IEC 1095-Control Type: Remote Control
