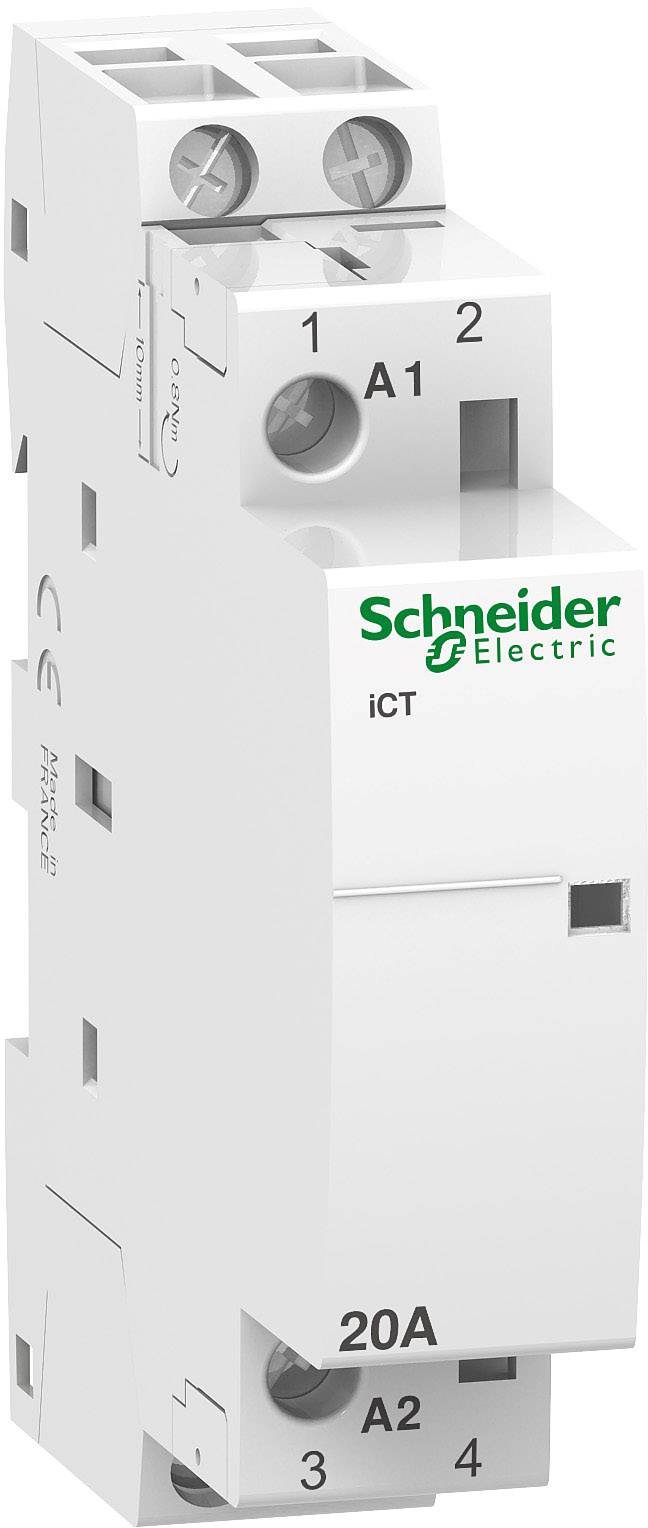

Schneider Electric A9C22722 Remote switch 2 makers 1.2 W 250 V AC 20 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
2-pin
Nominal voltage
250 V AC
Current load
20 A
Power
1.2 W
Technical specifications
- Product type
Remote switch
- Type
A9C22722
- No. of pins
2-pin
- Contact type
2 makers
- Nominal voltage
250 V AC
- Control voltage (min.)
230 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
230 - 240 V AC
- Current load
20 A
1.2 W
- Mounting type
Screw-fit
- Electrical lifespan
100000 cycles
- Durability
1 000 000 cycles
IP40
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
18 mm
- Height
81 mm
- Depth
68.5 mm
- Dim
(W x H x D) 18 x 81 x 68.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1861843 Schneider Electric A9C22722 Remote switch 2 makers 1.2 W 250 V AC 20 A 1 pc(s)
Description
Cutter A9C 22722 installation protection iCT 20A 2S# 230/240 V 50 Hz
