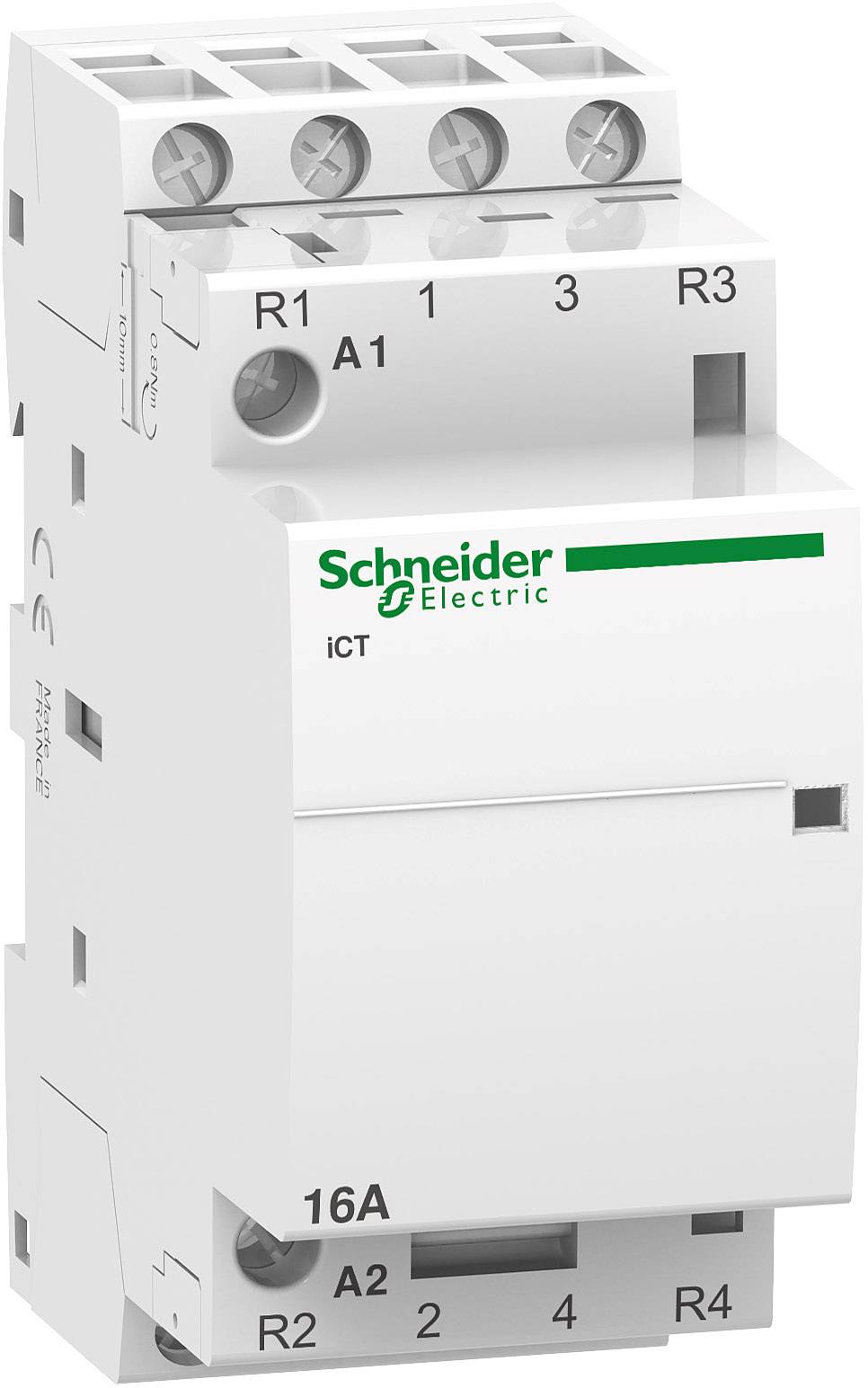

Schneider Electric A9C22818 Remote switch 2 makers, 2 breakers 1.6 W 400 V AC 16 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
4-pin
Nominal voltage
400 V AC
Current load
16 A
Power
1.6 W
Technical specifications
- Product type
Remote switch
- Type
A9C22818
- No. of pins
4-pin
- Contact type
2 makers
2 breakers
- Nominal voltage
400 V AC
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
1.6 W
- Permanent current (max.)
16 A
- Current load
16 A
1.6 W
- Mounting type
Screw-fit
- Electrical lifespan
100000 cycles
- Durability
1 000 000 cycles
IP20
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
36 mm
- Height
81 mm
- Depth
60 mm
- Dim
(W x H x D) 36 x 81 x 60 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1860075 Schneider Electric A9C22818 Remote switch 2 makers, 2 breakers 1.6 W 400 V AC 16 A 1 pc(s)
Description
Cutter A9C 22818 installation protection iCT 16A2S2O 220/240 V 50Hz
