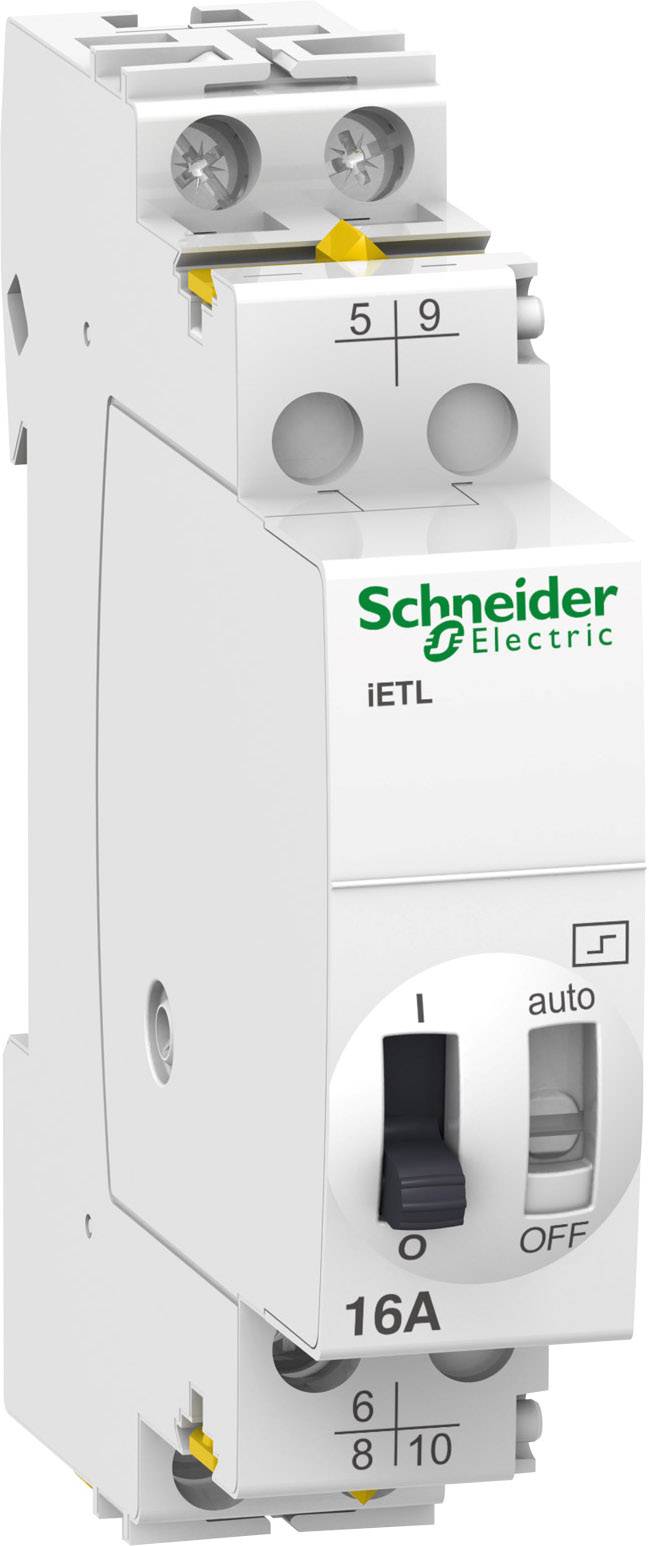

Schneider Electric A9C32116 Expansion board Nominal voltage: 415 V AC Switching current (max.): 16 A 1 change-over, 1 ma
EAN:
Part number:
Item no:
Product type
Expansion board
Contact type
1 change-over
1 maker
Nominal voltage
415 V AC
Switching current (max.)
16 A
Type
A9C32116
Technical specifications
- Product type
Expansion board
- Type
A9C32116
- Connection
Tunnel-type terminals
- Factory colour
White
- Contact type
1 change-over
1 maker
- Nominal voltage
415 V AC
- Switching current (max.)
16 A
- Electrical lifespan
200000 cycles
IP20
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Length
84 mm
- Width
18 mm
- Height
60 mm
- Dim
(L x W x H) 84 x 18 x 60 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1860356 Schneider Electric A9C32116 Expansion board Nominal voltage: 415 V AC Switching current (max.): 16 A 1 change-over, 1 ma
Description
Cutter A9C 32116 extension iETL iTL 2-pin 1W + 1C 16A 12VDC 24VAC 50/60Hz
