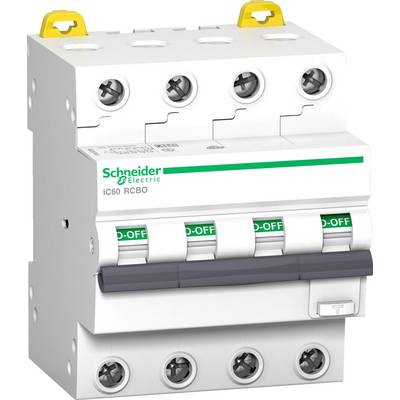

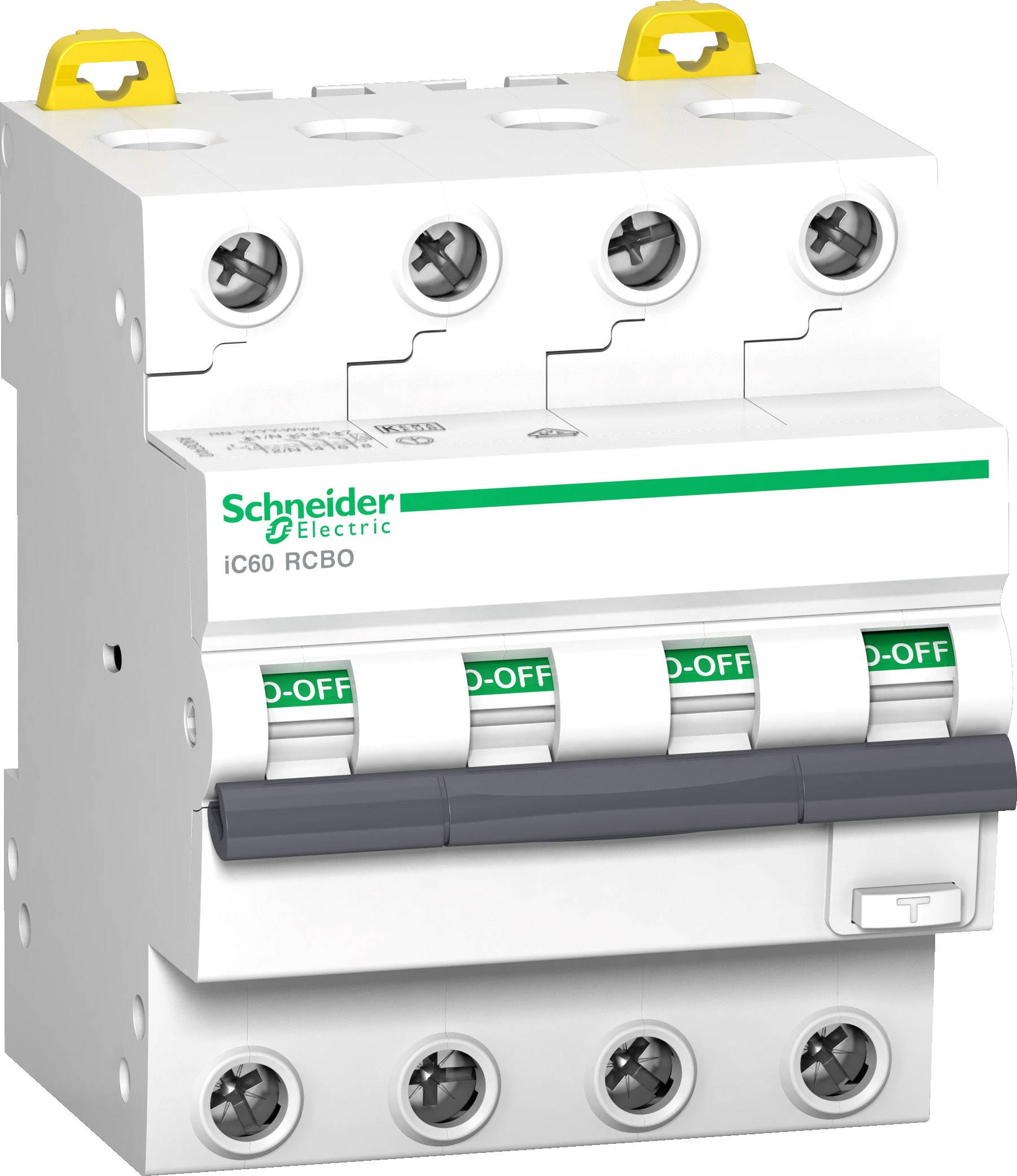

Schneider Electric A9D87432 RCBO 32 A 0.03 A 415 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
4
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
32 A
Technical specifications
- Nominal voltage (details)
380-415 V/AC 50 Hz
- Product type
RCBO
- Number of pins
4
- Release characteristics
B
- Differential current rating
0.03 A
- Dim
(W x H x D) 72 x 86 x 78 mm
- Content
1 pc(s)
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Switch-off capacity
6 kA
- Nominal voltage
415 V
- Width
72 mm
- Height
86 mm
- Depth
78 mm
AC
45 mm
32 A
400 V
B
500 V
0.03 A
1
3
2
4
IP20
4
TRUE
1-35 mm²
1-25 mm²
-25-40 °C
FALSE
4
4
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1867091 Schneider Electric A9D87432 RCBO 32 A 0.03 A 415 V
Description
FI/LS-Switch iC 60N, 4P, 32 A, B-characteristic, 30 mA type A. Application of the switch power distribution-Series: Activsense 9-product or component type: Ground Fault Circuit Breakers - Short description of the device: FI/LS iC 60 N-type: AC-ground-fault sensitivity: 30 mA-ground-fault protection time delay cnt: undelayed-rated breaking capacity (LCS) royalty? EN/IEC 61009-1 and EN/IEC 61009-2-1: 6000 A, VDE certification..
