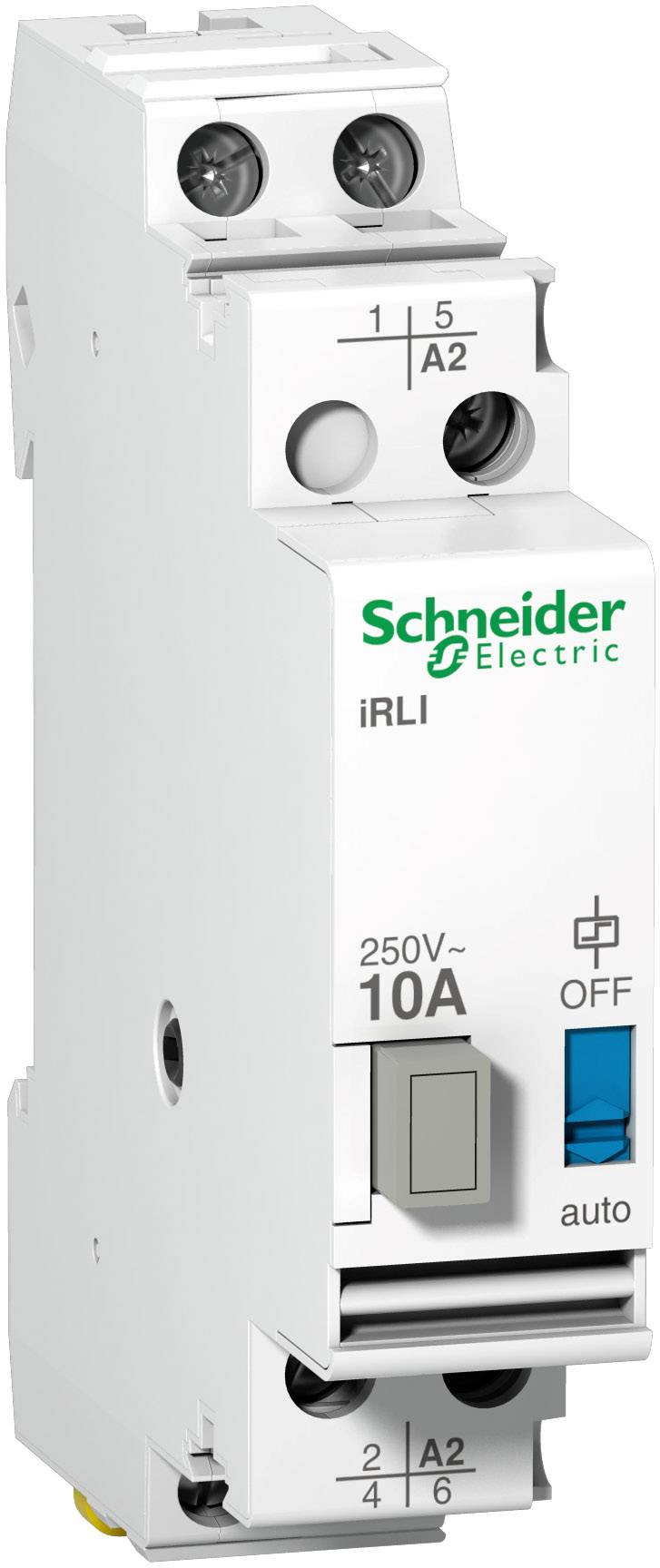

Schneider Electric A9E15535 Relay Nominal voltage: 240 V AC Switching current (max.): 10 A 1 change-over, 1 maker Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Relay
Contact type
1 change-over
1 maker
Nominal voltage
240 V AC
Switching current (max.)
10 A
Technical specifications
- Packaging type
Single
- Product type
Relay
- Type
A9E15535
- Connection
Tunnel-type terminals
- Factory colour
White
- Min. pick-up voltage
230 V AC
- Max. pick-up voltage
240 V AC
- Contact type
1 change-over
1 maker
- Nominal voltage
240 V AC
- Switching current (max.)
10 A
- Electrical lifespan
100000 cycles
IP20
- Max. temperature
+55 °C
- Min. temperature
-5 °C
- Length
70 mm
- Width
18 mm
- Height
88 mm
- Dim
(L x W x H) 70 x 18 x 88 mm
- Content
1 pc(s)
- Weight
0.112 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1862836 Schneider Electric A9E15535 Relay Nominal voltage: 240 V AC Switching current (max.): 10 A 1 change-over, 1 maker Single
Description
Switching relays irfi, 1W +1 S, 10A, 230V-240V AC. Relay Application: change-over relay product range: IRFI - Short description of the device: Irfi
