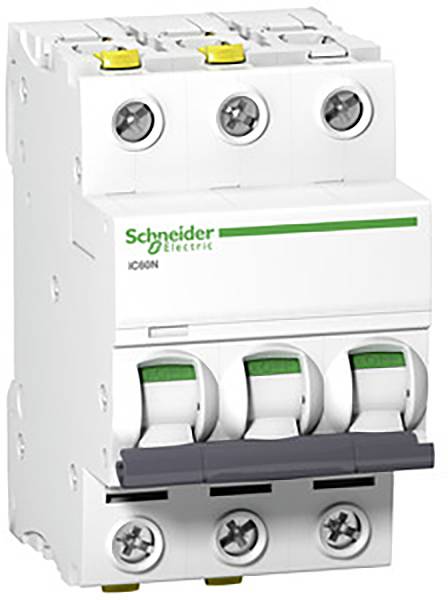

Schneider Electric A9F03325 APC - Schneider Electric A9F03325, Miniatur-Leistungsschalter, 10000 A, IP20 Circuit breaker
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Release characteristics
B
Factory colour
Multicolour
Dim
(W x H x D) 54 x 91 x 78.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.92
3
4% = € 1.25
€ 30.67
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
14-day return policy included
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
B
- Factory colour
Multicolour
- Dim
(W x H x D) 54 x 91 x 78.5 mm
- Content
1 pc(s)
- Switch-off capacity
10000 A
- Width
54 mm
- Height
91 mm
- Depth
78.5 mm
- Switch/button features
stackable
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2933866 Schneider Electric A9F03325 APC - Schneider Electric A9F03325, Miniatur-Leistungsschalter, 10000 A, IP20 Circuit breaker
Datasheet 2933866 Schneider Electric A9F03325 APC - Schneider Electric A9F03325, Miniatur-Leistungsschalter, 10000 A, IP20 Circuit breaker
User & Safety Instructions
User & Safety Instructions 2933866 Schneider Electric A9F03325 APC - Schneider Electric A9F03325, Miniatur-Leistungsschalter, 10000 A, IP20 Circuit breaker
Information
Information 2933866 Schneider Electric A9F03325 APC - Schneider Electric A9F03325, Miniatur-Leistungsschalter, 10000 A, IP20 Circuit breaker
Description
Circuit breaker Acti 9 iC60N, 6kA (IEC/EN 60898-1), 10kA (IEC/EN 60947-2). 3-pin, rated current 25A, B-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (UI) 500V AC. Double connection terminal for cable and pin-point rail at the top and bottom of the device. Jumber switching for low wear switching of the contacts. Along with traveling insulation cover. Actuation of the DIN rail mounting element at the front of the device for easy installation of tools and easy accessibility for the user. With mechanical front-side fault reporting display (VisiTrip) for displaying responses due to overload or short circuit. Secure contact display (VisiSafe) of the circuit breaker, in case of green display safe from voltage on the output side. Terminals IP20, traveling insulation cover. Double connection terminal from top or bottom. Easy removal of the individual device with installed phase rail, thanks to the front-accessible fixing element. Technology of the triggering unit- thermo-magnetic. Combined with the FI-circuit breaker of the series Acti 9 iID and the FI Block Vigi iC60. Additional attachable help modules (optional) - display of switching position, error triggering, work-current release, undervoltage release, over-voltage release. Colour tone RAL 9003. The iC60N line circuit breaker fulfills the following standards-IEC/EN 60898-1 and IEC/EN 60947-2. Moreover, this series is VDE certified!
