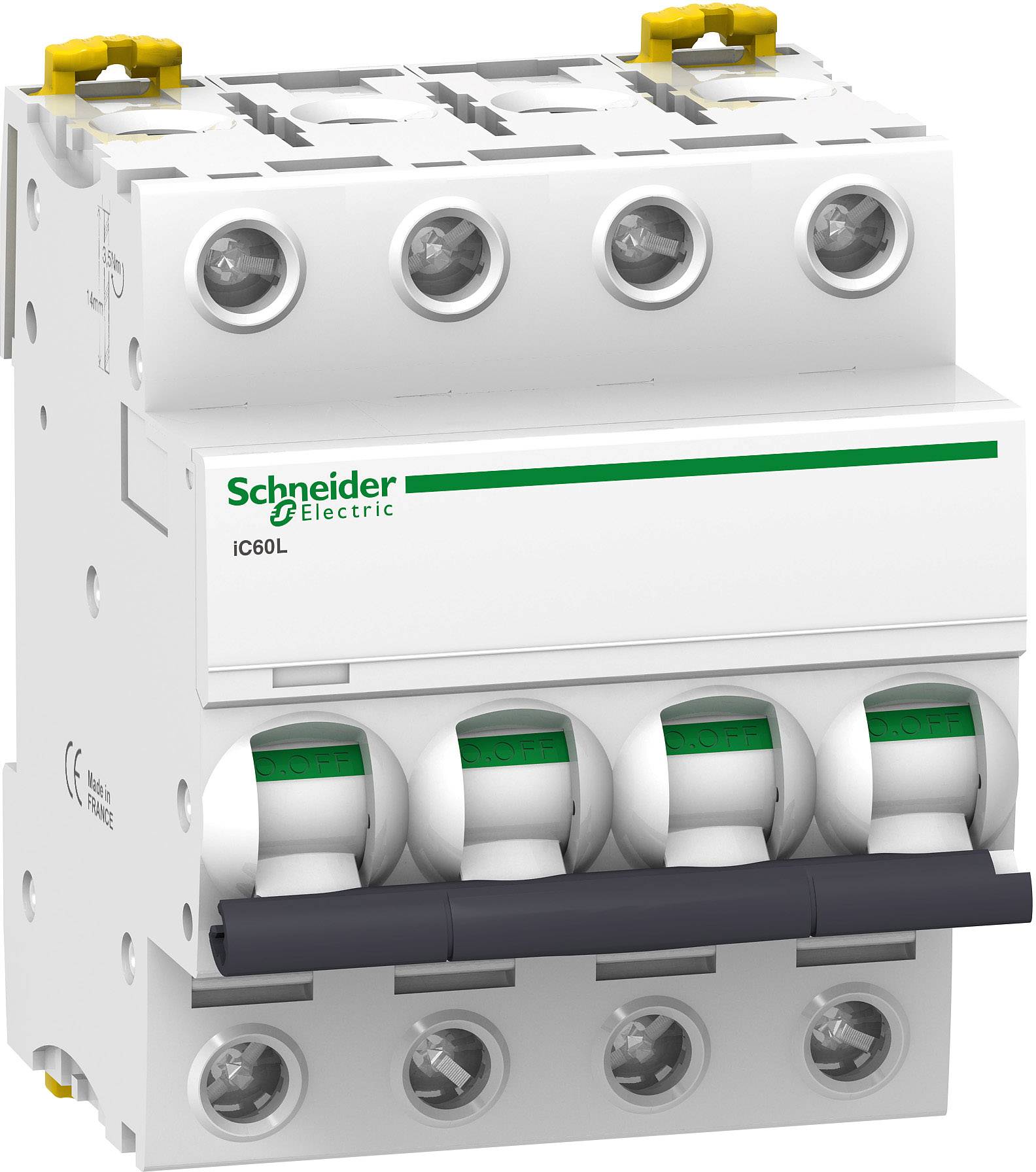

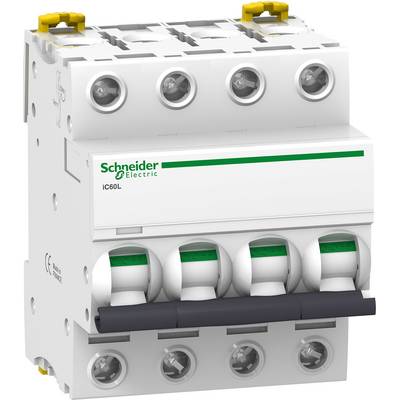

Schneider Electric A9F94440 A9F94440 Circuit breaker 40 A 400 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
4
Nominal current - rounded value
40 A
Nominal current
40 A
Factory colour
White
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Nominal current - rounded value
40 A
- Nominal current
40 A
- Factory colour
White
- Dim
(L x W x H) 78.5 x 72 x 85 mm
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
72 mm
- Height
85 mm
- Length
78.5 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1869965 Schneider Electric A9F94440 A9F94440 Circuit breaker 40 A 400 V
Conformity certificate
Conformity certificate 1869965 Schneider Electric A9F94440 A9F94440 Circuit breaker 40 A 400 V
Description
Circuit breaker switch activsense 9 iC 60L with breaking capacity of 20 kA according to IEC/EN 60947-2, 4-pole, 40 A characteristic C. With mechanical front-error message display for the display of tripping due to overload and short-circuit. Color RAL 9003. Easy connection terminal for cable and pen busbar on the top and bottom. Mitfahrende insulation cover. Rear horizontal rail mounting element on the top and bottom.
This text is machine translated.
This text is machine translated.
