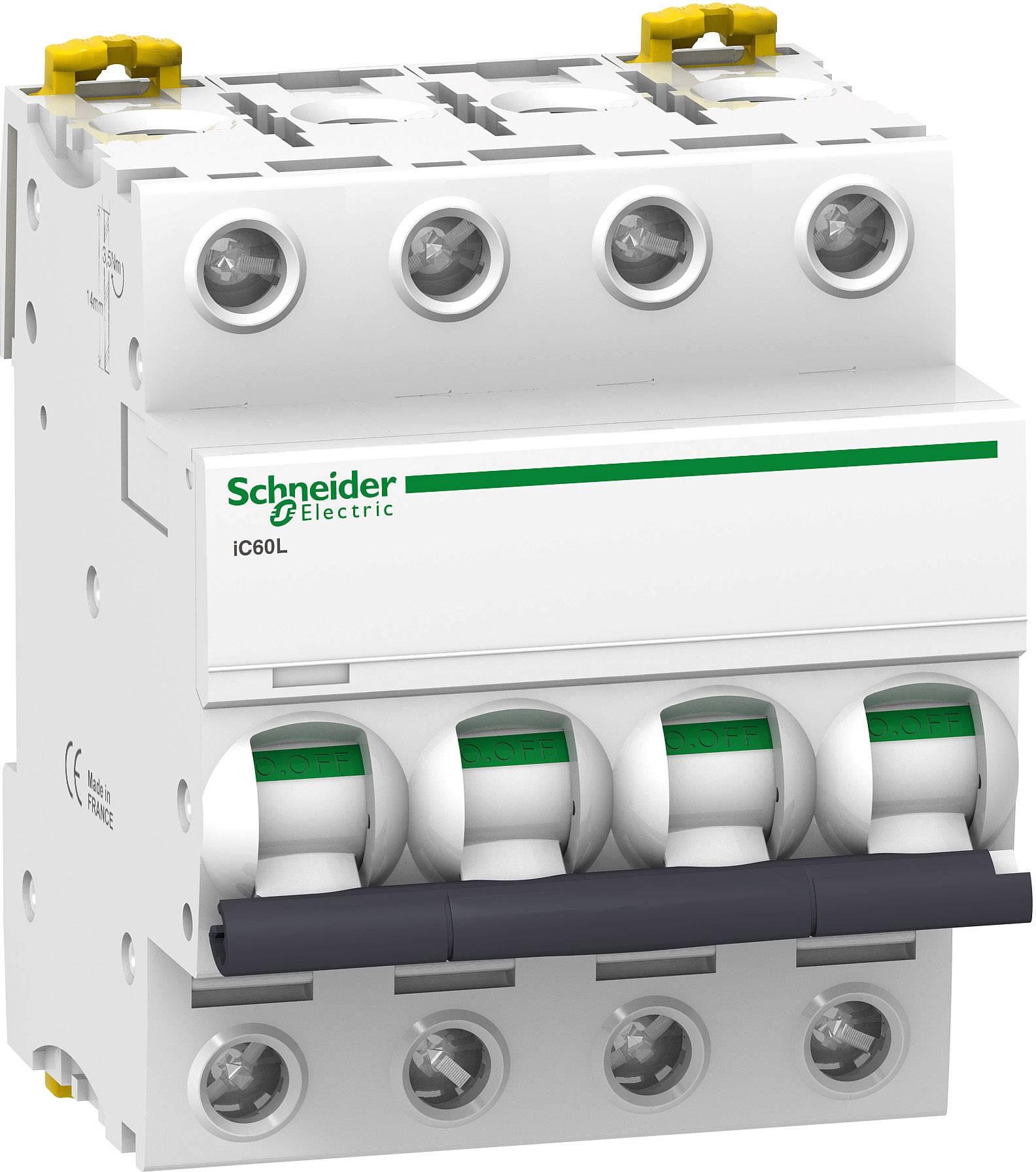

Schneider Electric A9F95425 A9F95425 Circuit breaker 25 A 400 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
4
Nominal current - rounded value
25 A
Nominal current
25 A
Factory colour
White
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Nominal current - rounded value
25 A
- Nominal current
25 A
- Factory colour
White
- Dim
(L x W x H) 78.5 x 72 x 85 mm
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
72 mm
- Height
85 mm
- Length
78.5 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1869962 Schneider Electric A9F95425 A9F95425 Circuit breaker 25 A 400 V
Conformity certificate
Conformity certificate 1869962 Schneider Electric A9F95425 A9F95425 Circuit breaker 25 A 400 V
Description
Circuit breaker switch activsense 9 iC 60L with breaking capacity of 25 kA according to IEC/EN 60947-2, 4-pin, 25 A characteristic K. With mechanical front-error message display for the display of tripping due to overload and short-circuit. Color RAL 9003. Easy connection terminal for cable and pen busbar on the top and bottom. Mitfahrende insulation cover. Rear horizontal rail mounting element on the top and bottom.
