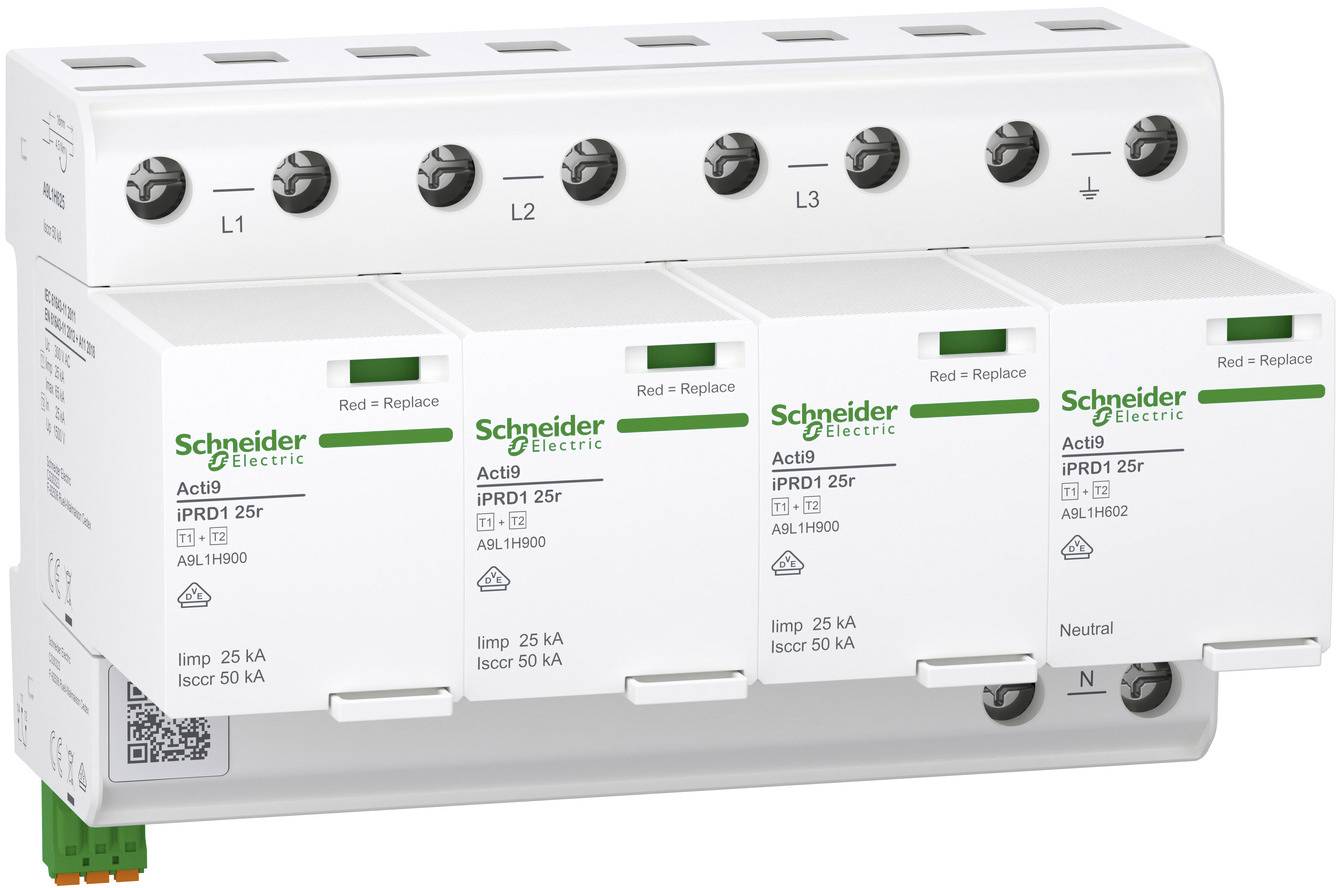

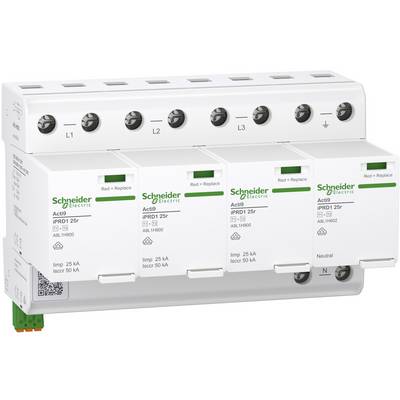

Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 441.18 / piece)
€ 441.18
plus VAT.
14-day return policy included
Technical specifications
- Product type
Lightning conductor
- Manufacturer part #
A9L1H625
- Dim
(W x H x D) 144 x 110.5 x 86 mm
- Width
144 mm
- Height
110.5 mm
- Depth
86 mm
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
25 kA
4
8 modular spacing
1.5 kV
TRUE
100 kA
300 V
240 V
Type 1 + 2
1.5 kV
Optic
IP20
1.5 kV
FALSE
35 mm²
25 mm²
156.2 kJ/Ohm
TRUE
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
315 A
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Information
Information 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Information 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Information 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Information 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Repairability/durability data sheet 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Conformity certificate
Conformity certificate 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Conformity certificate 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Conformity certificate 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Conformity certificate 3342403 Schneider Electric A9L1H625 A9L1H625 Lightning conductor 1 pc(s)
Description
Acti9 iPRD1 25r modular combi-conductor for use in lightning protection class I+II. Max. supply side over-current protection 315A gG. Telecommunication contact. Optical function/defect display of arrester (green OK/ red device defective). Suitable for TN-S and TT networks. U0 nominal voltage 240 V AC (50 Hz). UC maximum continuous voltage 305V AC (N-PE) / 300V AC (L-N). In-nominal leakage surge current 25/100 kA (L-N)/(N-PE). Imax maximum leakage surge current 65/130 kA (L-N)/(N-PE). IIMP 25/100kA (L-N/N-PE). Up protection level 1.5 kV (L-N/N-PE). DIN-Rail mount Dimensions (W) 144mm x (H) 110.5mm x (D) 86mm. Weight 1,074kg Protection class IP20 integrated. Operating temperature: -40 to +85 oC. COMPLIES WITH IEC 61643-11:2011, EN 61643-11:2012+A11:2018.
