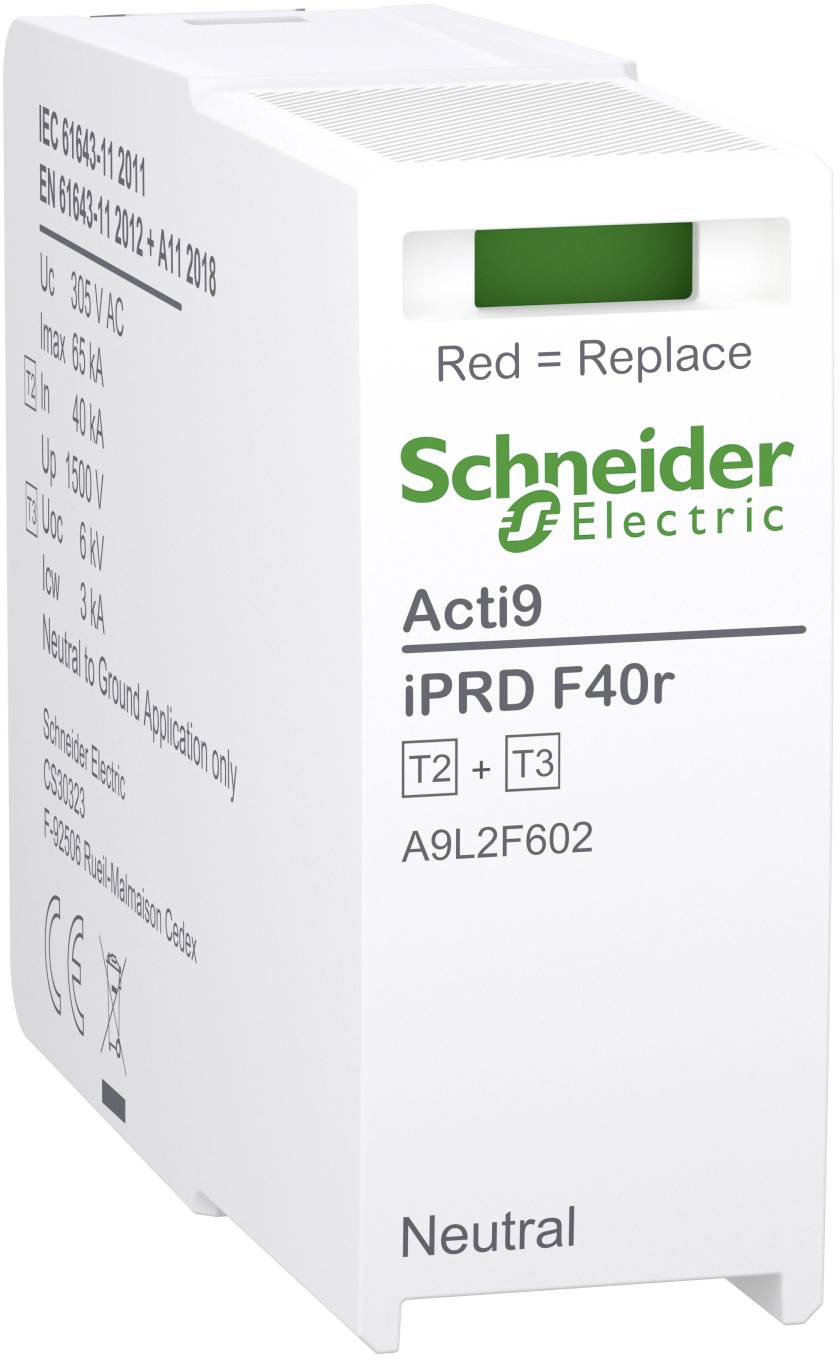

Schneider Electric A9L2F602 A9L2F602 Replacement module 40 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Technical specifications
- Product type
Replacement module
- Leakage current
40 kA
- Manufacturer part #
A9L2F602
- Dim
(W x H x D) 18 x 45 x 57.2 mm
- Width
18 mm
- Height
45 mm
- Depth
57.2 mm
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
1
1 modular spacing
1.5 kV
305 V
40 kA
240 V
TRUE
Optic
IP20
1.5 kV
TRUE
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
65 kA
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3343738 Schneider Electric A9L2F602 A9L2F602 Replacement module 40 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3343738 Schneider Electric A9L2F602 A9L2F602 Replacement module 40 kA 1 pc(s)
Description
Replacement insulation module for surge suppressor iPRD F40r 3P+N. Suitable for A9L2F640 (N-PE). With built-in fuse. Optical status display of arrester (green OK/ red device defective). U0 nominal voltage 240 V AC (50 Hz). UC – highest continuous voltage 305 VAC. In-nominal leakage surge current 40 kA. Imax maximum leakage surge current 65 kA. Uoc off-load voltage 6kV. Up-protection level 1.5 kV. Dimensions (W) 18mm x (H) 45mm x (D) 57.2mm. Weight: 42g. Protection class IP20 integrated. Operating temperature: -40 to +85 oC. COMPLIES WITH IEC 61643-11:2011, EN 61643-11:2012+A11:2018.
