Schneider Electric A9L40600 A9L40600 Surge arrester 40 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Surge arrester
- Leakage current
40 kA
- Nominal voltage
230 V AC
400 V AC
- Pick-up time (details)
25 ns
- Operating temperature
-25°C-60 °C
IP40
IP20
- Manufacturer part #
A9L40600
- Factory colour
White
- Dim
(W x H x D) 72 x 85 x 69 mm
- Width
72 mm
- Height
85 mm
- Depth
69 mm
- Content
1 pc(s)
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863721 Schneider Electric A9L40600 A9L40600 Surge arrester 40 kA 1 pc(s)
Description

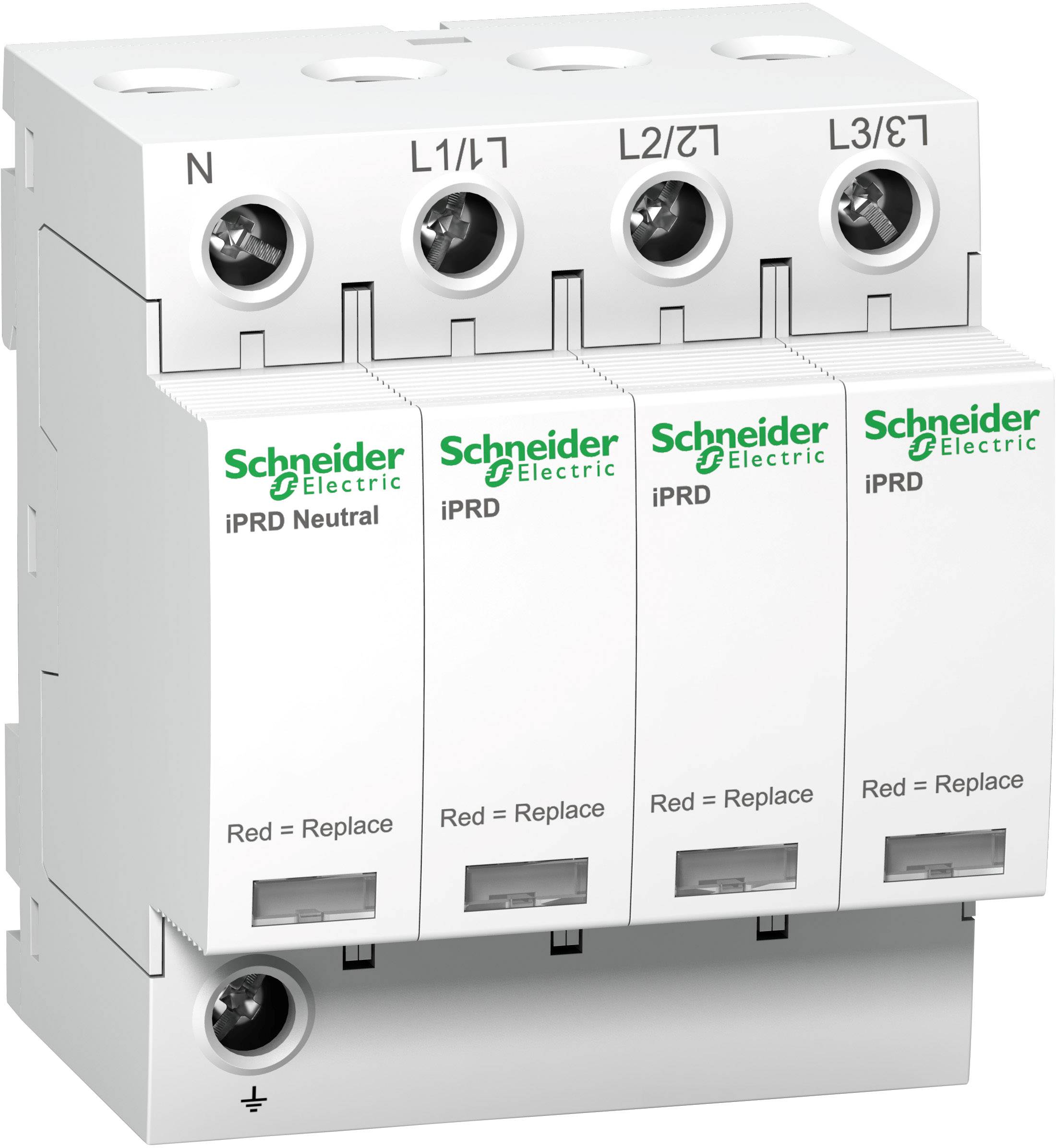

Surge suppressor iPRD40, Type 2, 3 P + N, Imax 40 kA, UC 260 V. Product range: iPRD-product or component type: surge arrester with pluggable protection module - Short description of the device: iPRD40 type. d. Surge arrester: Electrical Distribution Network Earthing System TT, TN-S.
