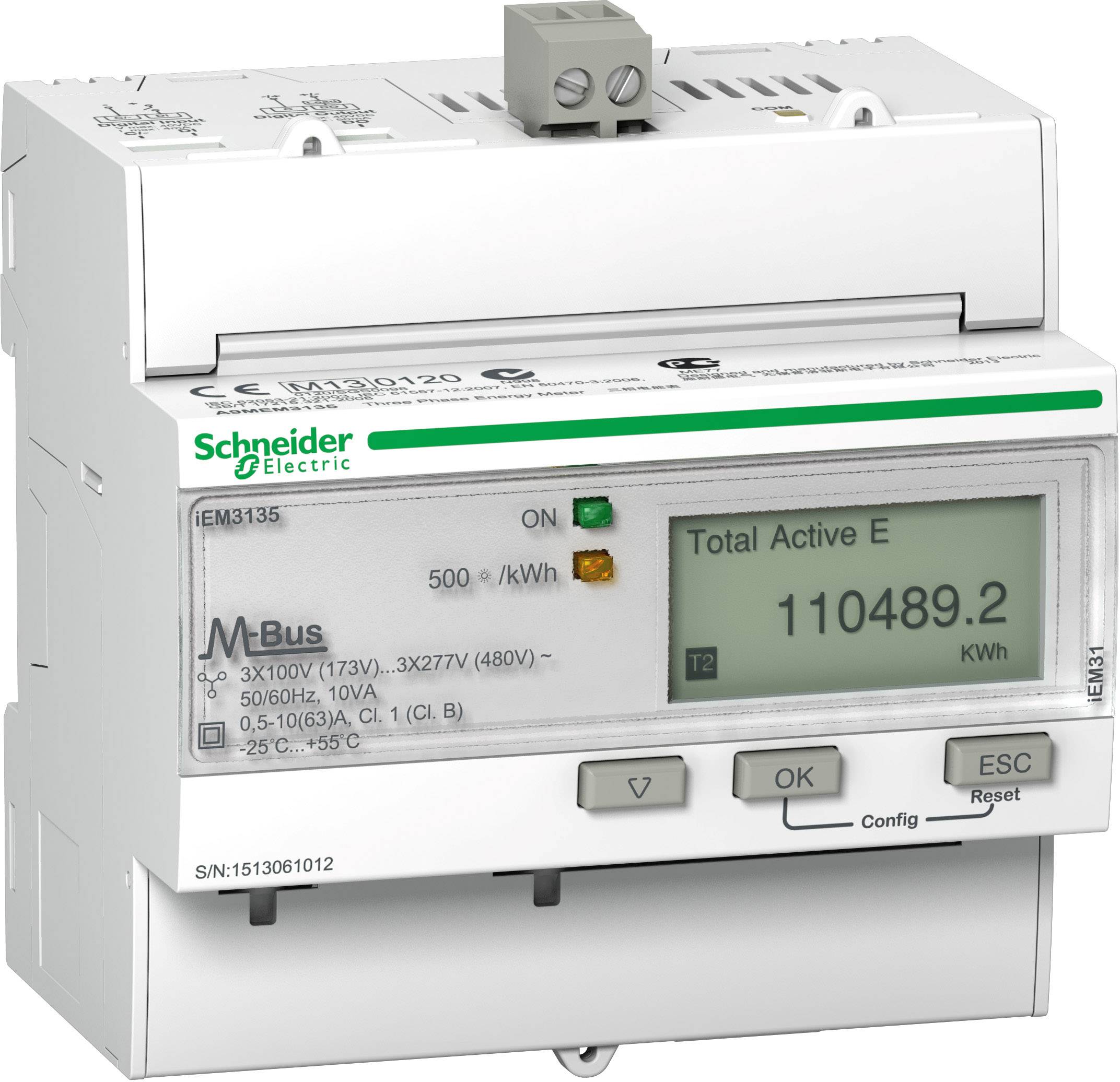

Schneider Electric A9MEM3135 A9MEM3135 Electricity meter Digital 63 A MID-approved: Yes Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter
Current load
63 A
Display
Digital
Operating voltage
100V-277V | | 173 V-480 V
Factory colour
White
Technical specifications
- Product type
Electricity meter
- Current load
63 A
- Display
Digital
- Operating voltage
100V-277V | | 173 V-480 V
- Factory colour
White
- Dim
(L x W x H) 69 x 90 x 95 mm
- Operating voltage
480 V
- Frequency
60 Hz
- Accuracy class
B
- MID-approved
Yes
- Reading type
Active energy
- Width
90 mm
- Height
95 mm
- Length
69 mm
- Current (max.)
63 A
- Current range
63 A (max)
- Type
A9MEM3135
- Packaging type
Piece
- Effective current range
63 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863643 Schneider Electric A9MEM3135 A9MEM3135 Electricity meter Digital 63 A MID-approved: Yes Piece 1 pc(s)
Description
Energy meter, 3-phase, 63 A, extended measuring function, M-Bus, 1E/1A, MID compliant. Series: Activsense 9-Product Name: Activsense 9 iEM 3000 - Short description of the device: iEM 3135 product or component type: energy meter.
