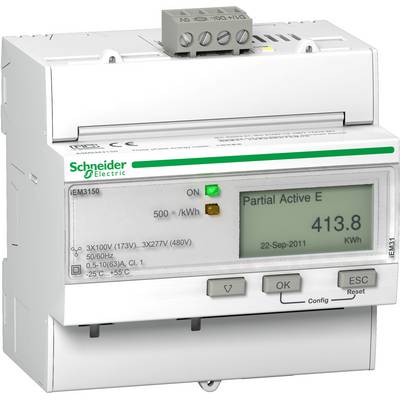

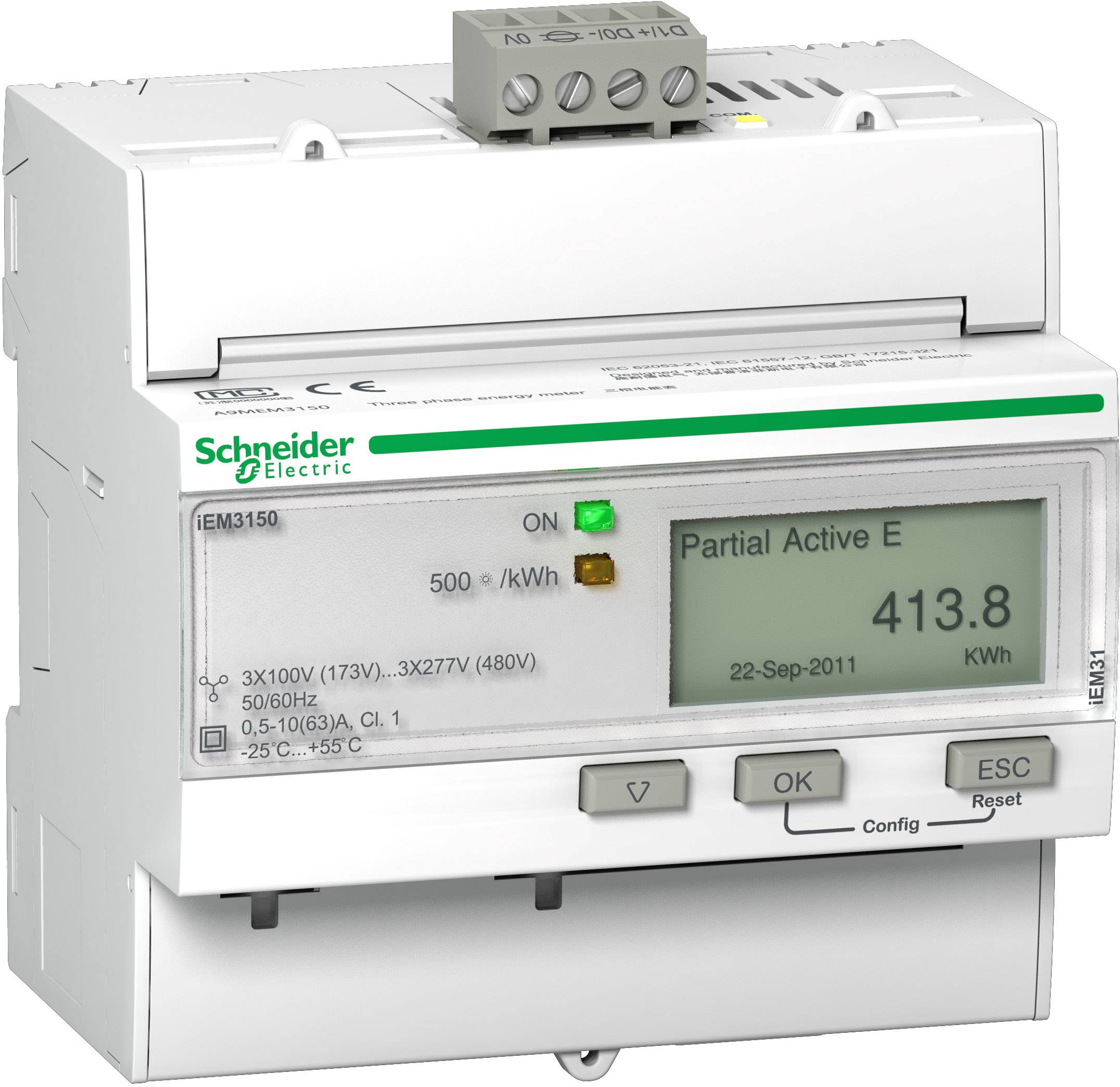

Schneider Electric A9MEM3150 A9MEM3150 Electricity meter Digital 63 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter
Current load
63 A
Display
Digital
Operating voltage
100V-277V | | 173 V-480 V
Factory colour
White
Technical specifications
- Product type
Electricity meter
- Current load
63 A
- Display
Digital
- Operating voltage
100V-277V | | 173 V-480 V
- Factory colour
White
- Dim
(L x W x H) 69 x 90 x 95 mm
- Weight
0.4392 kg
- Operating voltage
480 V
- Recess width
90 mm
- Frequency
60 Hz
- Accuracy class
B
- Reading type
Active power
- Nominal voltage range
100 up to 480 V
- Mains voltage (max.)
480 V
- Mains voltage (min.)
100 V
- Width
90 mm
- Height
95 mm
- Length
69 mm
- Current (max.)
63 A
- Current range
63 A (max)
- Type
A9MEM3150
- Packaging type
Piece
- Effective current range
63 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1862210 Schneider Electric A9MEM3150 A9MEM3150 Electricity meter Digital 63 A Piece 1 pc(s)
Description
Schneider Electric A9 MEM 3150. Type: Electronic, product color: white, unit of measure: A. Input voltage: 100 - 480, nominal current 63 A, AC input frequency: 50/60. Width: 90 mm, Depth: 69 mm, Height: 95 mm
