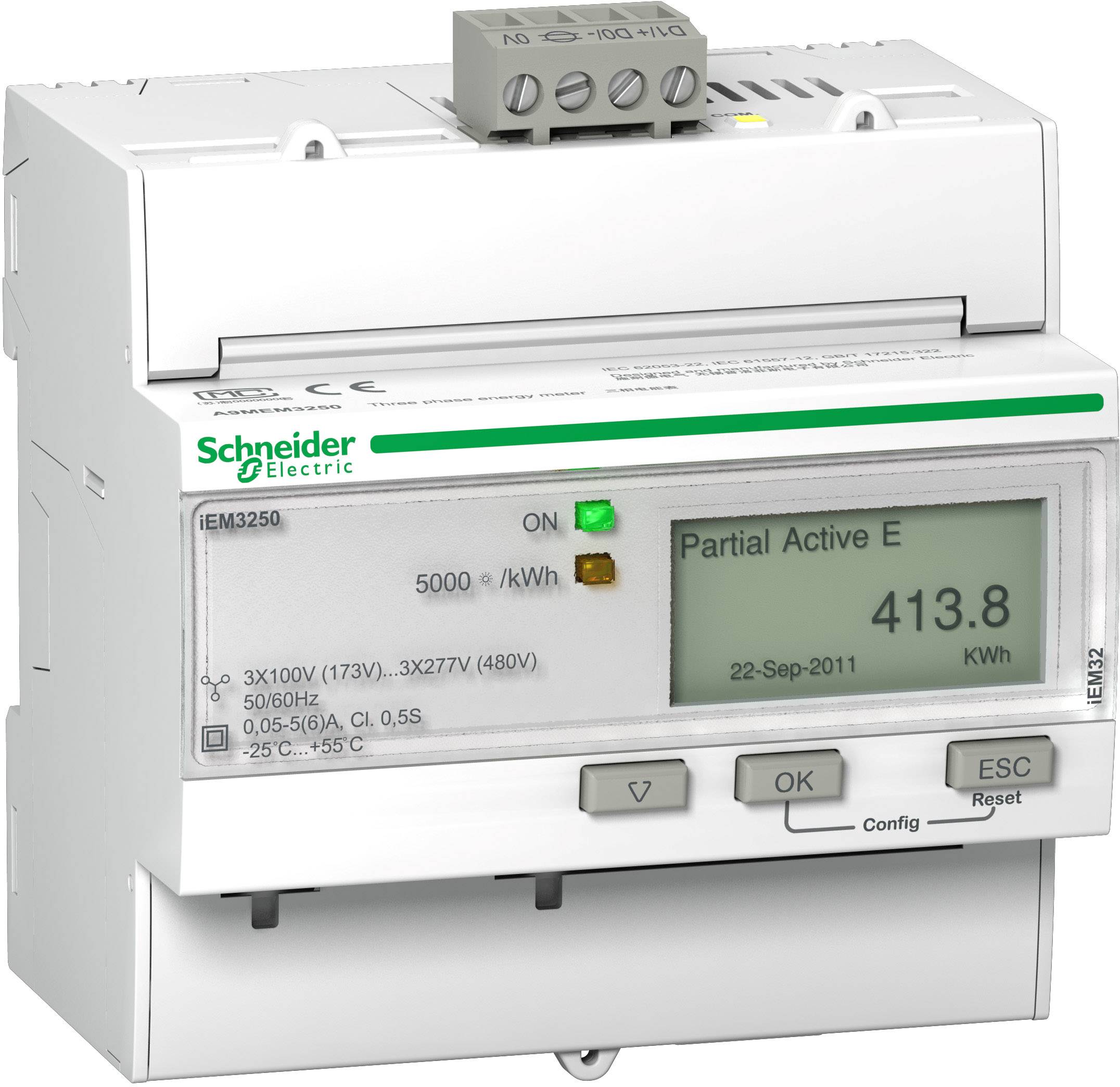

Schneider Electric A9MEM3250 A9MEM3250 Electricity meter Digital 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter
Display
Digital
Operating voltage
100V-277V | | 173 V-480 V
Factory colour
White
Dim
(L x W x H) 69 x 90 x 95 mm
Technical specifications
- Product type
Electricity meter
- Display
Digital
- Operating voltage
100V-277V | | 173 V-480 V
- Factory colour
White
- Dim
(L x W x H) 69 x 90 x 95 mm
- Weight
0.4235 kg
- Operating voltage
480 V
- Recess width
90 mm
- Frequency
60 Hz
- Accuracy class
C
- Reading type
Active power
- Nominal voltage range
100 up to 480 V
- Mains voltage (max.)
480 V
- Mains voltage (min.)
100 V
- Width
90 mm
- Height
95 mm
- Length
69 mm
- Current (max.)
5 A
- Current (min.)
1 A
- Current range
1 up to 5 A
- Type
A9MEM3250
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1862215 Schneider Electric A9MEM3250 A9MEM3250 Electricity meter Digital 1 pc(s)
Description
Energy meter IEM 3250 3P+N 5 A Modbus A9 MEM 325
