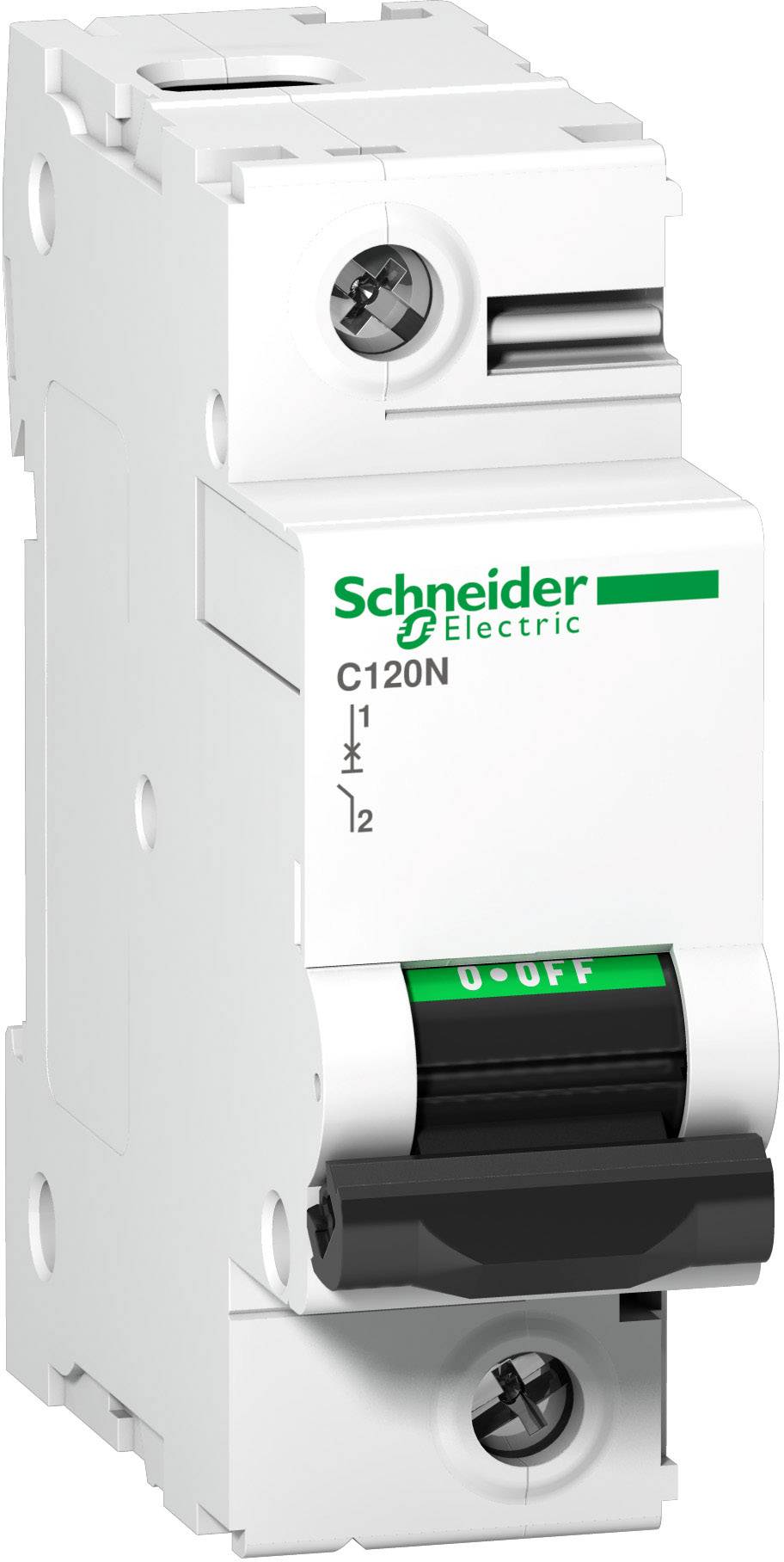

Schneider Electric A9N18358 A9N18358 Circuit breaker 100 A 144 V DC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Nominal current - rounded value
100 A
Nominal current
100 A
Factory colour
White
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Nominal current - rounded value
100 A
- Nominal current
100 A
- Factory colour
White
- Dim
(L x W x H) 73 x 27 x 81 mm
- Content
1 pc(s)
- Nominal voltage
144 V DC
- Width
27 mm
- Height
81 mm
- Length
73 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1862871 Schneider Electric A9N18358 A9N18358 Circuit breaker 100 A 144 V DC
Description
Line safety switch C120N, 1 P, 100A, C characteristic. Product range: C120-Series: Activsense 9-Product Name: C120 product or component type: miniature circuit breaker switch - short description of the device: C120N-type: AC technology of the trip unit: thermal-magnetic circuit capacity: 10kA Icu gema? EN/IEC 60947-2-<= 144 V DC, 10 kA Icu gema? EN/IEC 60947-2 - 220 ... 240 V AC 50/60 Hz, 10000 A Icn gema? EN/IEC 60898-1 - 230...400 V AC 50/60 Hz, 15 kA Icu gema? EN/IEC 60947-2 - 12 V DC, 15 kA Icu gema? EN/IEC 60947-2 - 125 V DC, 20 kA Icu gema? EN/IEC 60947-2-12V AC 50/60Hz, 20 kA Icu gema? EN/IEC 60947-2 - 130 V AC 50/60 Hz, 3kA Icu gema? EN/IEC 60947-2 - 380...415 V AC 50/60 Hz IT.
