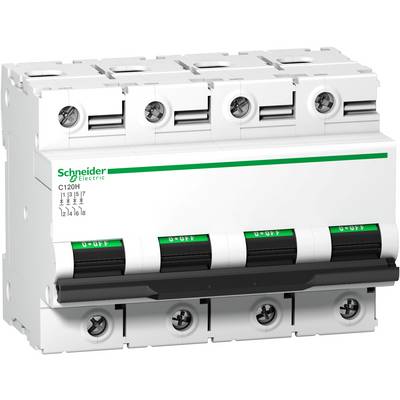

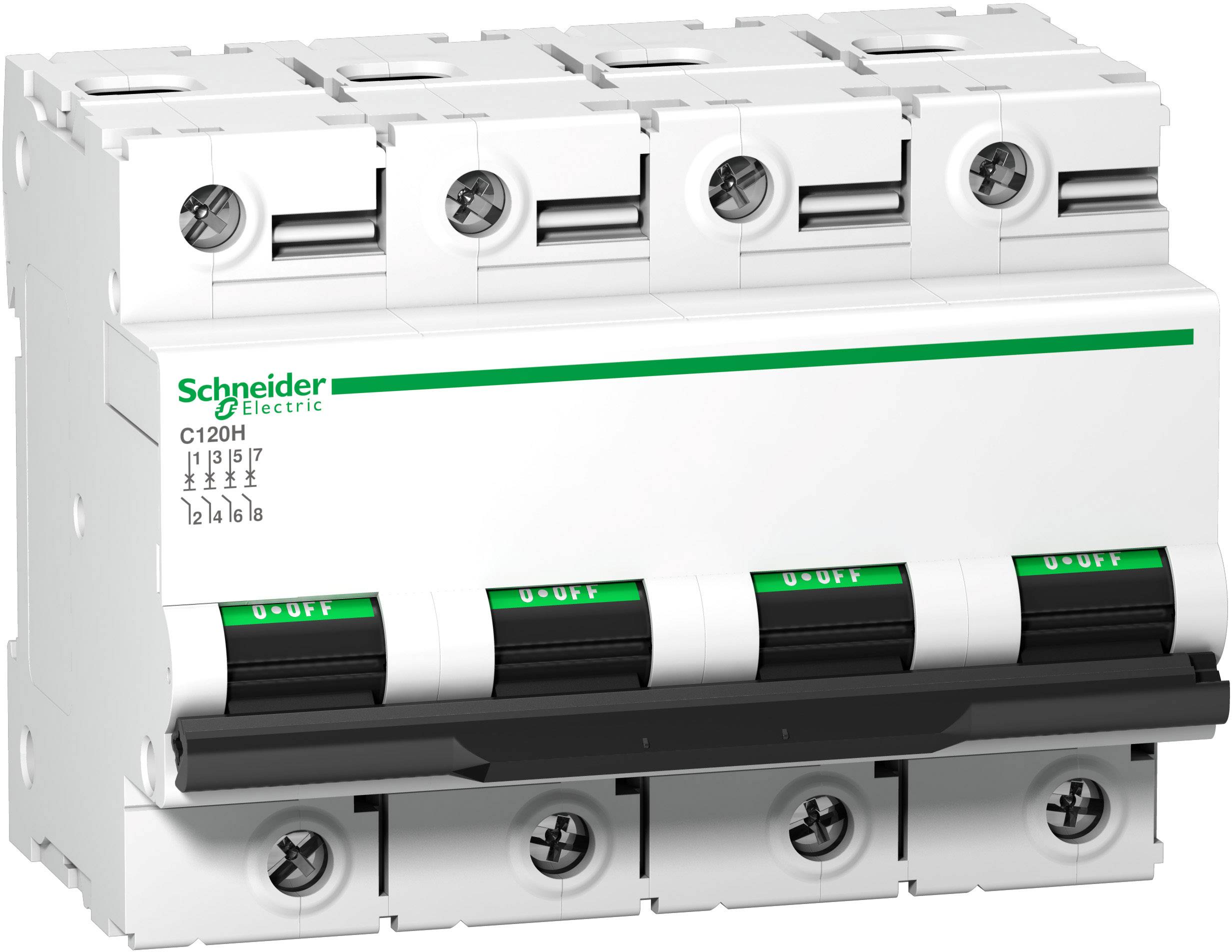

Schneider Electric A9N18523 A9N18523 Circuit breaker 80 A 500 V DC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
4
Nominal current - rounded value
80 A
Nominal current
80 A
Factory colour
White
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Nominal current - rounded value
80 A
- Nominal current
80 A
- Factory colour
White
- Dim
(L x W x H) 73 x 108 x 81 mm
- Content
1 pc(s)
- Nominal voltage
500 V DC
- Width
108 mm
- Height
81 mm
- Length
73 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863013 Schneider Electric A9N18523 A9N18523 Circuit breaker 80 A 500 V DC
Description
Line safety switch C 120 H, 4P, 80A, D characteristics. Product range: C120-Series: Activsense 9-Product Name: C120 product or component type: miniature circuit breaker switch - short description of the device: C120H-neutral position: left-type: AC technology of the trip unit: thermal-magnetic circuit capacity: 10kA Icu gema? EN/IEC 60947-2 - 440 V AC 50/60 Hz, 15 kA Icu gema? EN/IEC 60947-2-<=500 V DC, 15 kA Icu gema? EN/IEC 60947-2 - 380...415 V AC 50/60 Hz, 15000 A Icn gema? EN/IEC 60898-1 - 230...400 V AC 50/60 Hz, 30 kA Icu gema? EN/IEC 60947-2 - 220 ... 240 V AC 50/60 Hz.
