Schneider Electric A9N18558 A9N18558 RCCB A 125 A 0.3 A 415 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
3
Release characteristics
A
Differential current rating
0.3 A
Nominal current - rounded value
125 A
Technical specifications
- Product type
RCCB
- Number of pins
3
- Release characteristics
A
- Differential current rating
0.3 A
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Dim
(W x H x D) 171 x 95 x 73 mm
- Factory colour
White
- Content
1 pc(s)
- Nominal voltage
415 V
- Width
171 mm
- Height
95 mm
- Depth
73 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1871113 Schneider Electric A9N18558 A9N18558 RCCB A 125 A 0.3 A 415 V
Description

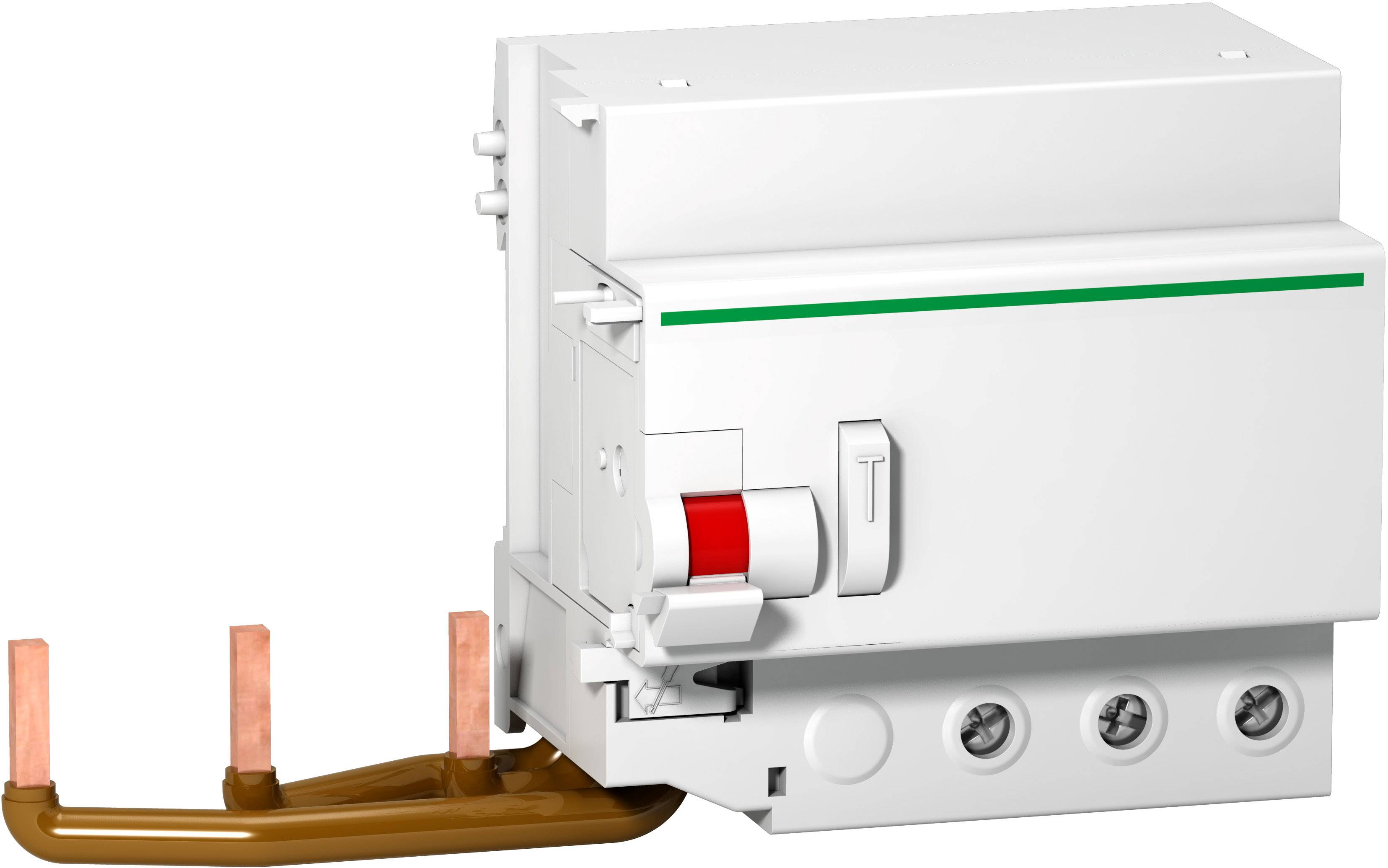

FI-Block Vigi C120, 3P, 300 mA, Type A selective, SI. Product or component type: Ground Fault Additional Block - Short description of the device: Vigi C120-Description of Poles: 3P-type: AC network frequency 50 Hz - Ground-fault sensitivity: 300 mA-ground-fault protection time delay cnt: selective-ground-fault protection class: Class SI.
