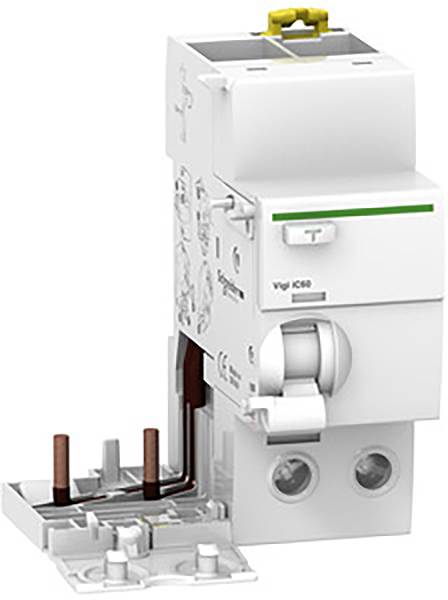

Schneider Electric A9V22263 FI-block Vigi iC60L, 2P, 63A, 100mA, type A Distribution board accessories 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board accessories
Content
1 pc(s)
UKCA
yes
Datasheet (PDF)
Number
Total (€ 247.90 / piece)
€ 247.90
plus VAT.
14-day return policy included
Technical specifications
- Product type
Distribution board accessories
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2972867 Schneider Electric A9V22263 FI-block Vigi iC60L, 2P, 63A, 100mA, type A Distribution board accessories 1 pc(s)
Datasheet 2972867 Schneider Electric A9V22263 FI-block Vigi iC60L, 2P, 63A, 100mA, type A Distribution board accessories 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2972867 Schneider Electric A9V22263 FI-block Vigi iC60L, 2P, 63A, 100mA, type A Distribution board accessories 1 pc(s)
Information
Information 2972867 Schneider Electric A9V22263 FI-block Vigi iC60L, 2P, 63A, 100mA, type A Distribution board accessories 1 pc(s)
Description
FI-block Acti 9 Vigi iC60L. 2-pole, rated current 63A, nominal residual current 100mA, type A, operating voltage (Ue) 400-415V AC, insulation voltage (UI) 500V AC. Can be mounted on the right side of the iC60L series circuit breaker. Triggering by residual current is indicated by a red mechanical display on the knob. Terminals IP20 Test button for regular function check. Technology of the triggering unit- thermo-magnetic. Additional stackable auxiliary modules (optional) - fault signaling switches, auxiliary switch, under-voltage release, over-voltage release, overcurrent release. The Vigi iC60L FI block meets the following IEC/EN 61009-1 standards. Moreover, this series is VDE certified!
