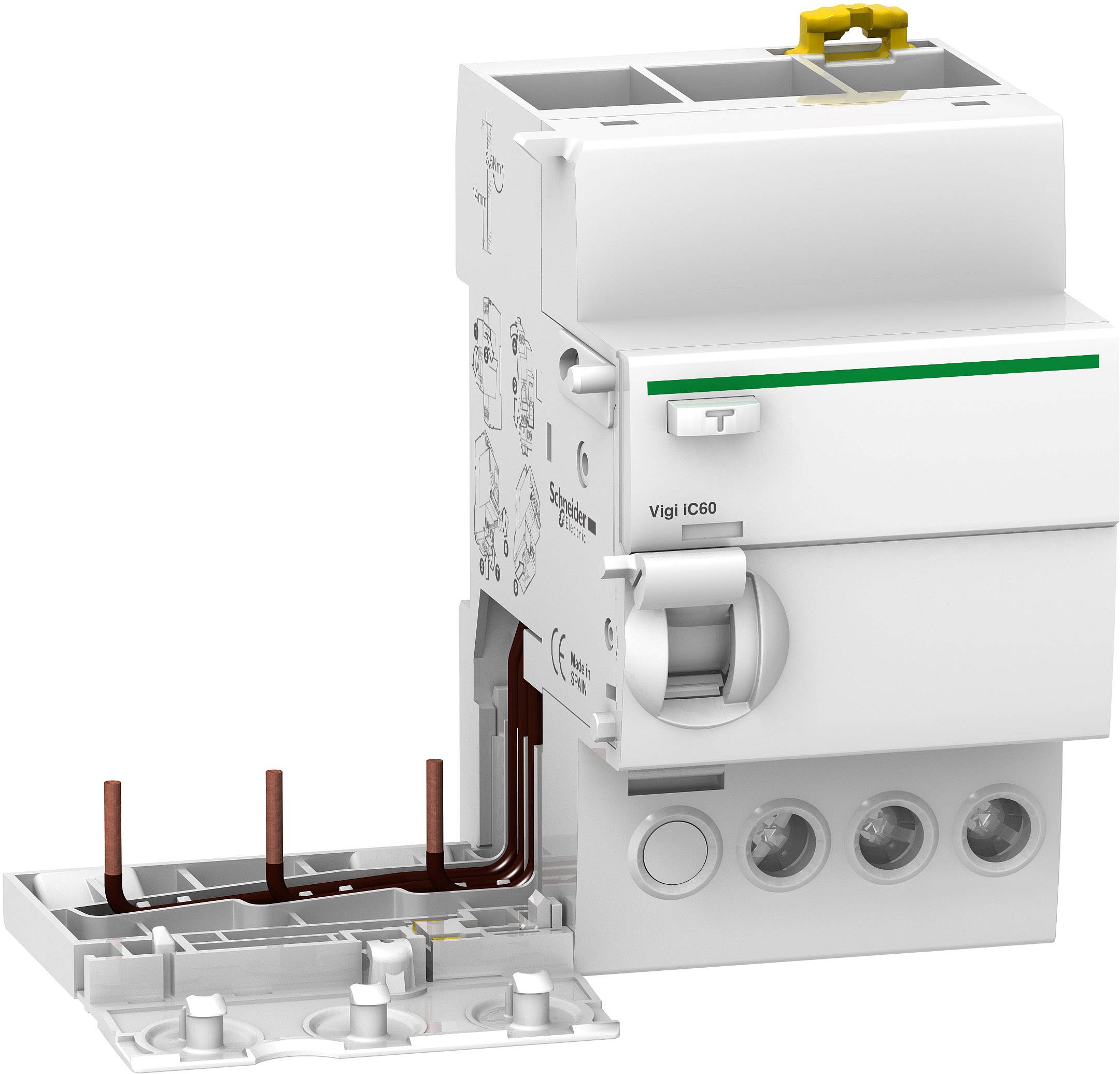

Schneider Electric A9V51325 A9V51325 RCCB A 25 A 0.03 A 415 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
3
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
25 A
Technical specifications
- Product type
RCCB
- Number of pins
3
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Content
1 pc(s)
- Nominal voltage
415 V
- Height
91 mm
- Depth
73.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863108 Schneider Electric A9V51325 A9V51325 RCCB A 25 A 0.03 A 415 V
Description
FI-Block Vigi iC 60L, 3P, 25 A, 30 mA, Type A. Product or component type: Ground Fault Additional Block - Short description of the device: Vigi iC 60 - Description of Poles: 3P-ground-fault sensitivity: 30 mA-ground-fault protection time delay cnt: undelayed-ground-fault protection class: Class A network type: AC network frequency: 50/60 Hz-rated operational voltage Ue 400 V AC 50/60 Hz gema? EN 61009-1, 400/415 V AC 50/60 Hz gema? IEC 61009-1.
