Schneider Electric A9V54263 A9V54263 RCCB A 63 A 0.3 A 415 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
A
Differential current rating
0.3 A
Nominal current - rounded value
63 A
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
A
- Differential current rating
0.3 A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)
- Nominal voltage
415 V
- Height
91 mm
- Depth
73.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863113 Schneider Electric A9V54263 A9V54263 RCCB A 63 A 0.3 A 415 V
Description

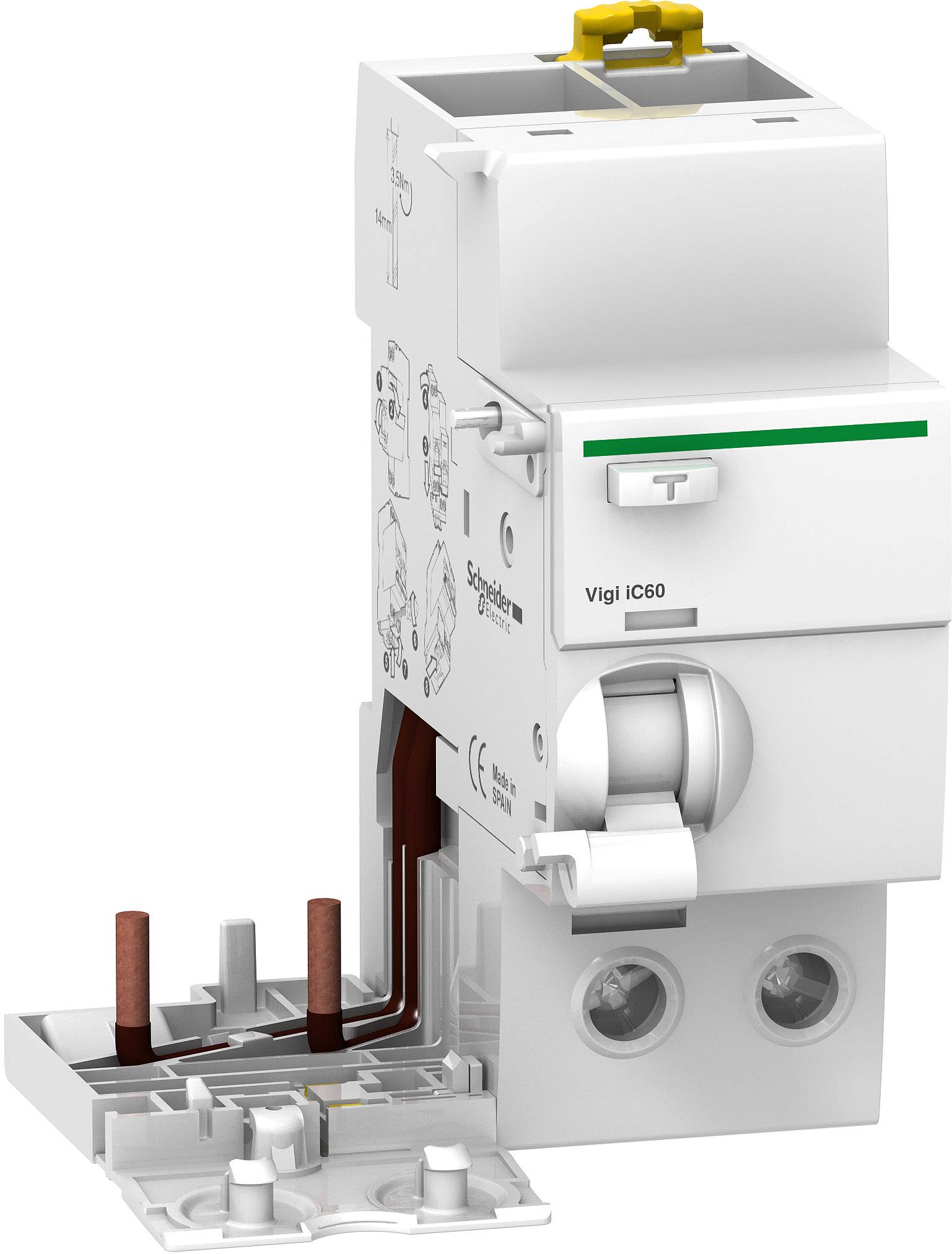

FI-Block Vigi iC 60L, 2P, 63 A, 300 mA, Type A. Product or component type: Ground Fault Additional Block - Short description of the device: Vigi iC 60 - Description of Poles: 2P-ground-fault sensitivity: 300 mA-ground-fault protection time delay cnt: undelayed-ground-fault protection class: Class A network type: AC network frequency: 50/60 Hz-rated operational voltage Ue: 230/400 V AC 50/60 Hz gema? EN 61009-1, 230/415 V AC 50/60 Hz gema? IEC 61009-1.
