Schneider Electric A9V61463 A9V61463 RCCB A 63 A 0.03 A 415 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
63 A
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)
- Nominal voltage
415 V
- Height
91 mm
- Depth
73.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863126 Schneider Electric A9V61463 A9V61463 RCCB A 63 A 0.03 A 415 V
Description

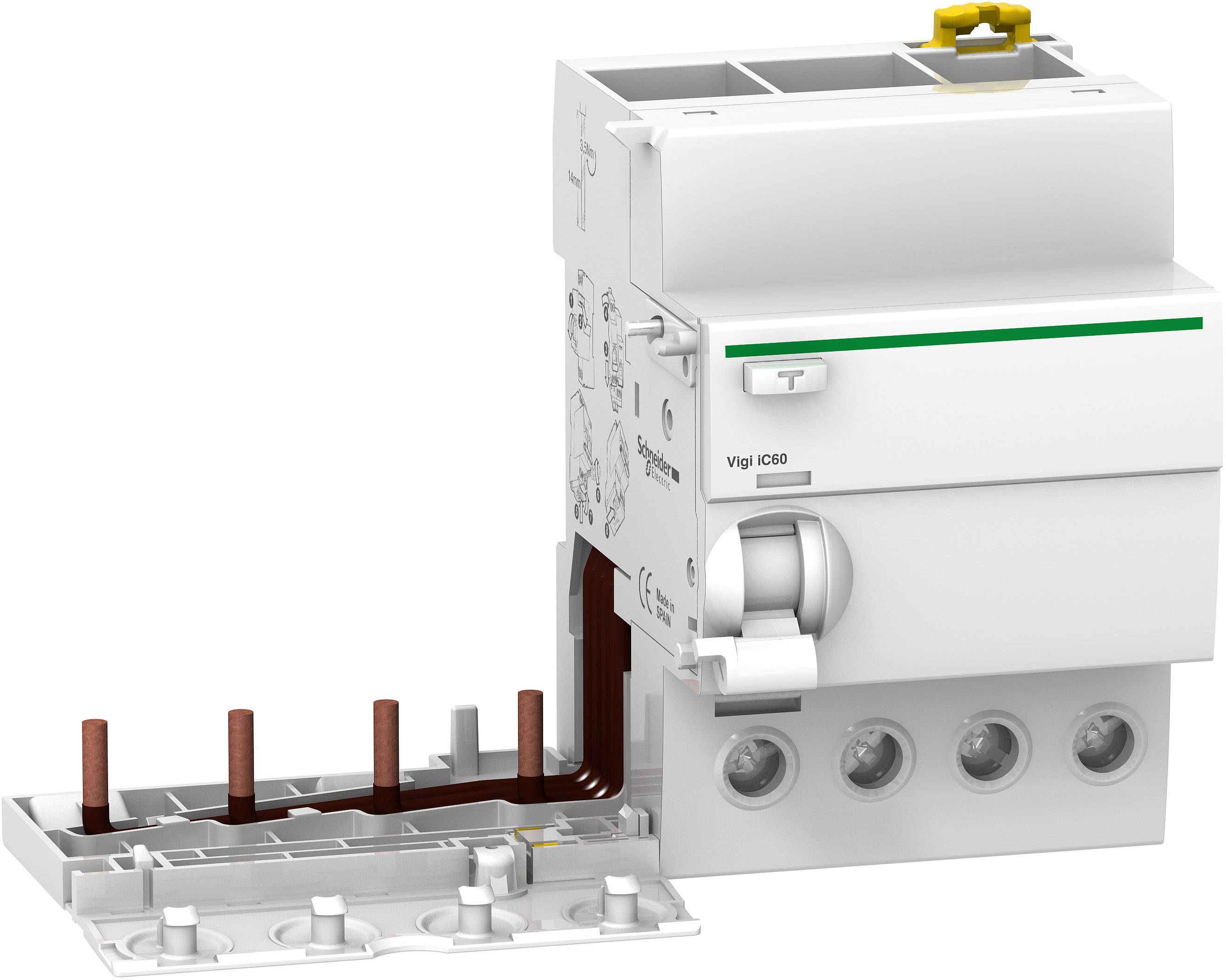

FI-Block Vigi iC 60L, 4P, 63 A, 30 mA, Type A, SI. Product or component type: Ground Fault Additional Block - Short description of the device: Vigi iC 60 - Description of Poles: 4P-ground-fault sensitivity: 30 mA-ground-fault protection time delay cnt: undelayed-ground-fault protection class: Class SI-type: AC network frequency: 50/60 Hz-rated operational voltage Ue 400 V AC 50/60 Hz gema? EN 61009-1, 400/415 V AC 50/60 Hz gema? IEC 61009-1.
