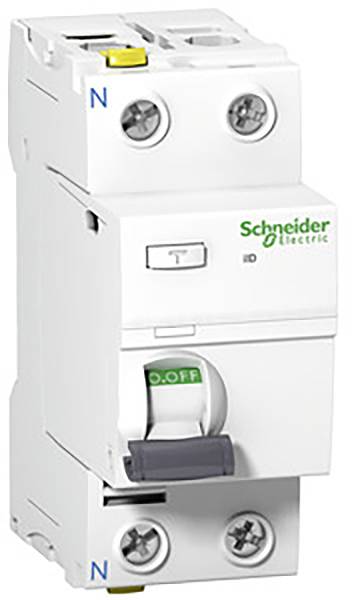

Schneider Electric A9Z24240 RCCB A 40 A 0.3 A

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 2-pole, rated current 40A, ground fault sensitivity 300mA, ground fault protection type A, operating voltage (Ue) 230V AC, insulation voltage (UI) 500V AC. Does the extra protection ensure if you touch it directly (? 30 mA) Error protection in case of indirect contact, e.g. in case of insulation faults (? 100mA, ? 300mA). Fault protection in construction current distributors (500mA). Switching and disconnecting of circuits. Jumber switching for low wear switching of the contacts. With mechanical front-side fault reporting display (VisiTrip) for displaying responses due to overload or short circuit. Reliable contact display (VisiSafe) of the error current protection switch, in case of green display Safe freedom of voltage on the output side. Test button for regular function check. Double terminals for connecting cables or phase rails on both sides. Easy removal of the individual device with installed phase rail, thanks to the front-accessible fixing element. Additional stackable auxiliary modules (optional) - undervoltage release (IMN), overvoltage release (iMSU), working current release (IMX), auxiliary switch for status message (IOF), error alarm switch (ISD). Tool-free assembly on the left side of the device. Colour tone RAL 9003. The fault current protection switch iID fulfills the following standards-IEC/EN 61008-1 and IEC/EN 60947-2. Moreover, this series is VDE certified!

This text is machine translated.
