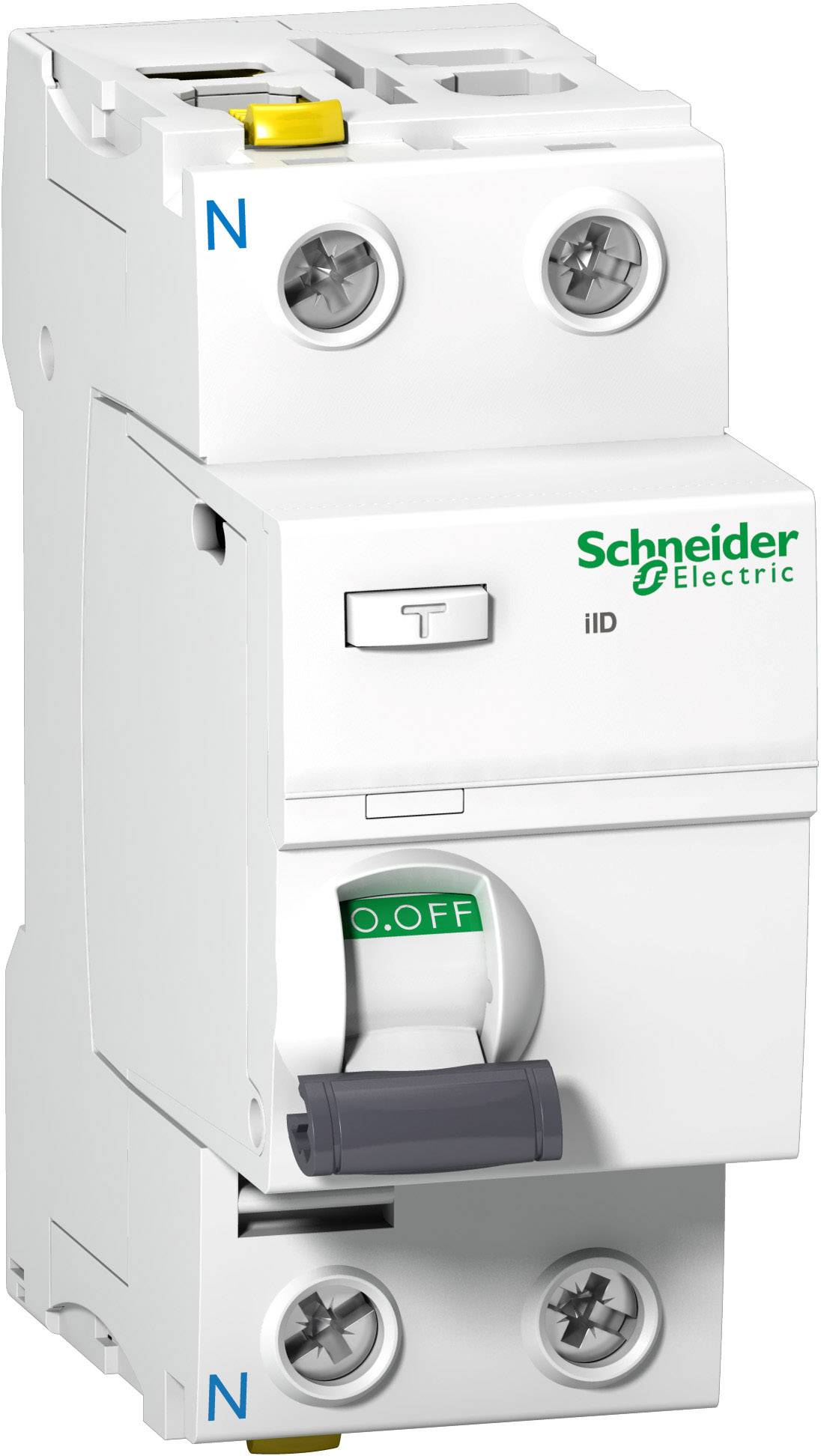

Schneider Electric A9Z24280 A9Z24280 RCCB A 80 A 0.3 A 240 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
A
Differential current rating
0.3 A
Nominal current - rounded value
80 A
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
A
- Differential current rating
0.3 A
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Dim
(W x H x D) 36 x 91 x 73 mm
- Factory colour
White
- Content
1 pc(s)
- Nominal voltage
240 V
- Width
36 mm
- Height
91 mm
- Depth
73 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863166 Schneider Electric A9Z24280 A9Z24280 RCCB A 80 A 0.3 A 240 V
Description
Residual current circuit breaker iID, 2P, 80A, 300 mA, Type A. Series: Activsense 9-product or component type: Ground fault protection - Short description of the device: iID - Description of Poles: 2P-neutral position: left-type: AC-rated break and Auslos. - Chapter: 1500 A royalty? EN 61008-1, 1500 A royalty? IEC 61008-1.
