Schneider Electric ABE7H16R11 Cable connector Interface module No. of pins (RJ): 16 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Cable connector
Connector type
Interface module
Connection side A
Screw terminal
Connection side B
Screw terminal
No. of pins
16
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Type
ABE7H16R11
- Product type
Cable connector
- Connector type
Interface module
- Connection side A
Screw terminal
- Connection side B
Screw terminal
- No. of pins
16
- Connection
Screw terminal
- Features
Industrial-grade
- Seal type
Screw-on
- Manufacturer part #
ABE7H16R11
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2922846 Schneider Electric ABE7H16R11 Cable connector Interface module No. of pins (RJ): 16 1 pc(s) Piece
Datasheet 2922846 Schneider Electric ABE7H16R11 Cable connector Interface module No. of pins (RJ): 16 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2922846 Schneider Electric ABE7H16R11 Cable connector Interface module No. of pins (RJ): 16 1 pc(s) Piece
Information
Information 2922846 Schneider Electric ABE7H16R11 Cable connector Interface module No. of pins (RJ): 16 1 pc(s) Piece
Information 2922846 Schneider Electric ABE7H16R11 Cable connector Interface module No. of pins (RJ): 16 1 pc(s) Piece
Information 2922846 Schneider Electric ABE7H16R11 Cable connector Interface module No. of pins (RJ): 16 1 pc(s) Piece
Information 2922846 Schneider Electric ABE7H16R11 Cable connector Interface module No. of pins (RJ): 16 1 pc(s) Piece
Description

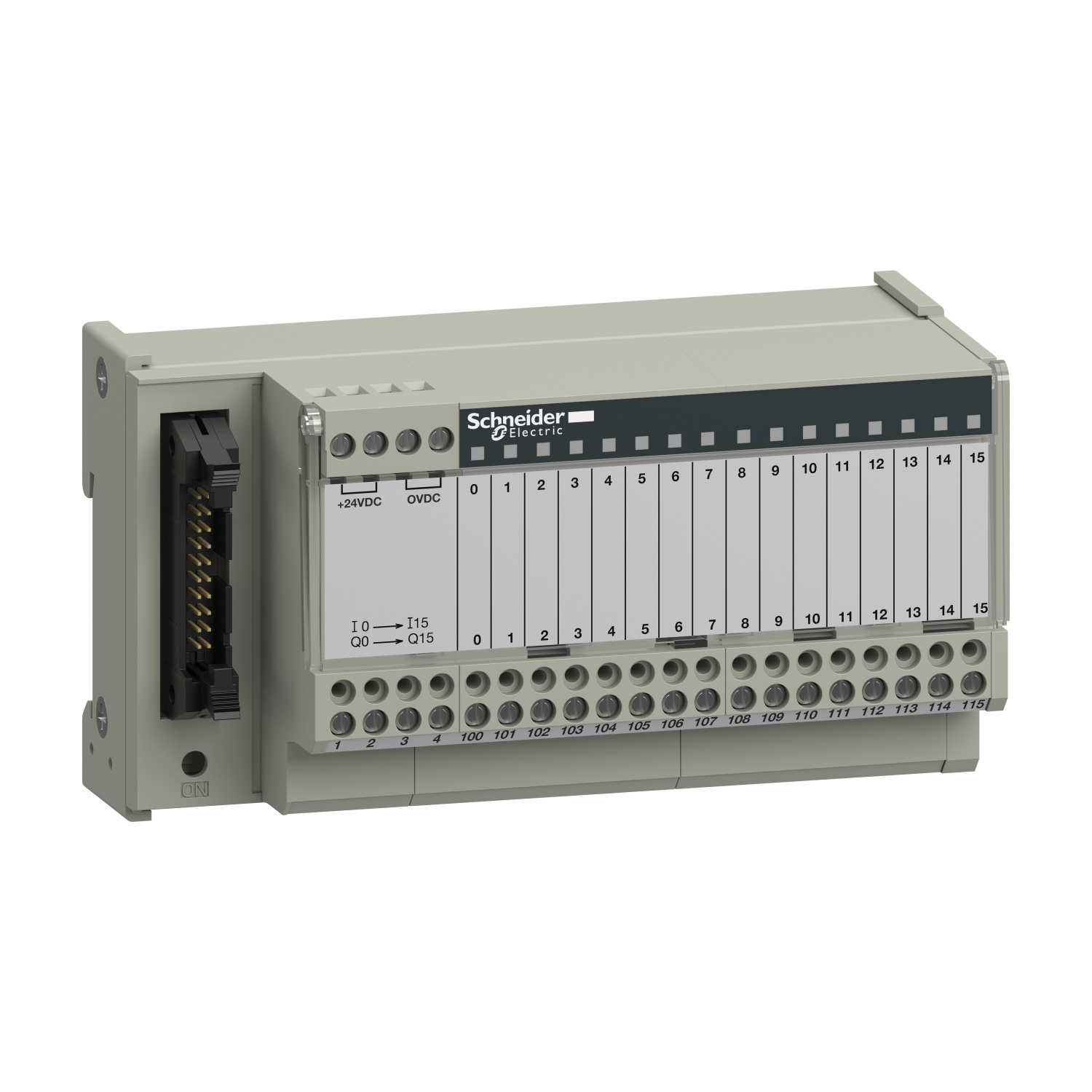

This product is part of the Modicon ABE7 range, a range of connector base plates for the pre-wired Telefast system. This passive terminal strip has 16 modular input/output channels. It has 1 terminal per channel. It is a chassis with a maximum supply current of 1.8 A and a nominal supply voltage of 19 V to 30 V. It is equipped with screw terminals for the electrical connection. It is a product of protection class IP2x. Its dimensions are 125 mm (width). It weighs 0.274kg. It is suitable for all kinds of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. They are fastened using clips (35 mm symmetrical DIN rail) and screws (solid plate with mounting set). Modicon ABE7 simplifies wiring in automation systems. Pre-wired system that allows the connection and adjustment of the control signals of the PLC cards equipped with HE10 connectors.
