Schneider Electric ABE7H16R21 Cable connector Wire connector 1 pc(s)

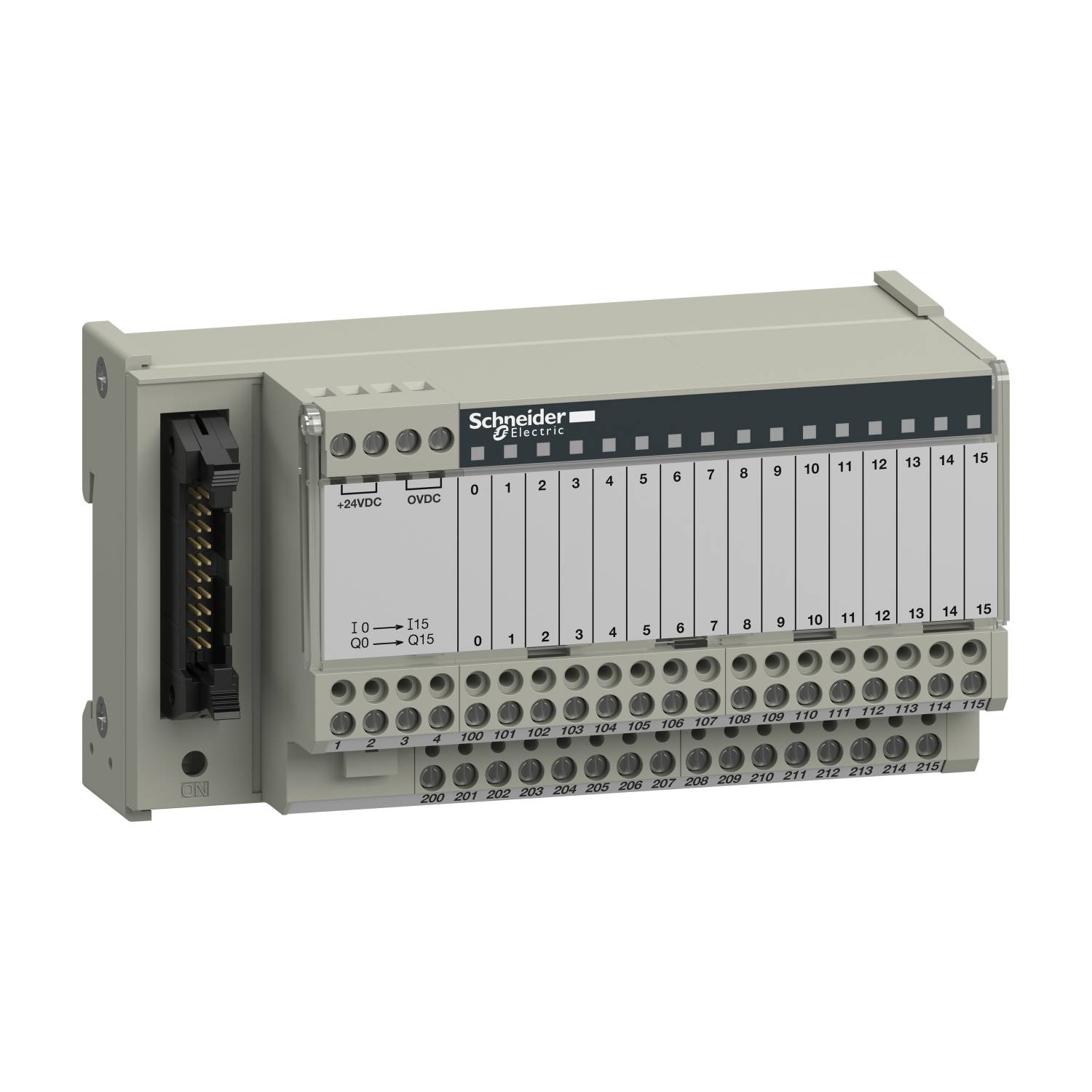

This product is part of the Modicon ABE7 range, a range of connector base plates for the pre-wired Telefast system. This passive terminal strip has 16 modular input/output channels. It has 2 terminals per channel. It is a chassis with a maximum supply current of 1.8 A and a nominal supply voltage of 19 V to 30 V. It is equipped with screw terminals for the electrical connection. It is a product of protection class IP2x. Its dimensions are 125 mm (width). It weighs 0.3 kg. It is suitable for all kinds of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. They are fastened using clips (35 mm symmetrical DIN rail) and screws (solid plate with mounting set). Modicon ABE7 simplifies wiring in automation systems. Pre-wired system that allows the connection and adjustment of the control signals of the PLC cards equipped with HE10 connectors.

This text is machine translated.
