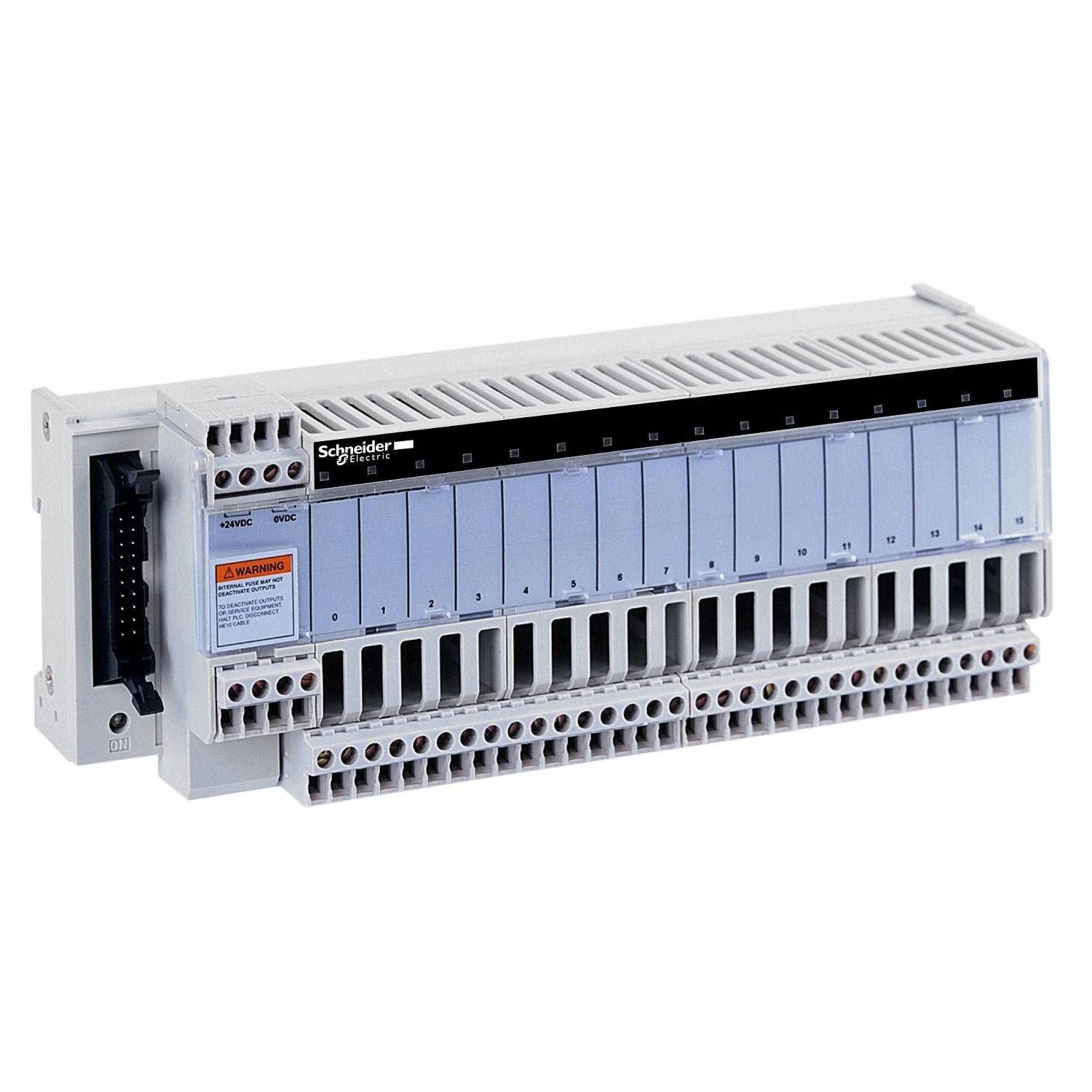

Schneider Electric ABE7S16E2B1 Distribution block Screw terminal 1 pc(s)

This product is part of the Modicon ABE7 range, a range of connector base plates for the pre-wired Telefast system. The connection plate with soldered semiconductor output relay offers 16 channels. It has 2 terminals per channel. This product enables the fast connection of I/O modules. It is a relay sub-assembly with a power supply voltage from 19V to 30V DC and a current of 0.012A per channel. It is equipped with screw terminals for the electrical connection. It is a product of protection class IP2x. It weighs 0.37 kg. It is suitable for all kinds of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. They are fastened using clips (35 mm symmetrical DIN rail) and screws (solid plate with mounting set). Modicon ABE7 simplifies wiring in automation systems. Pre-wired system that allows the connection and adjustment of the control signals of the PLC cards equipped with HE10 connectors.
