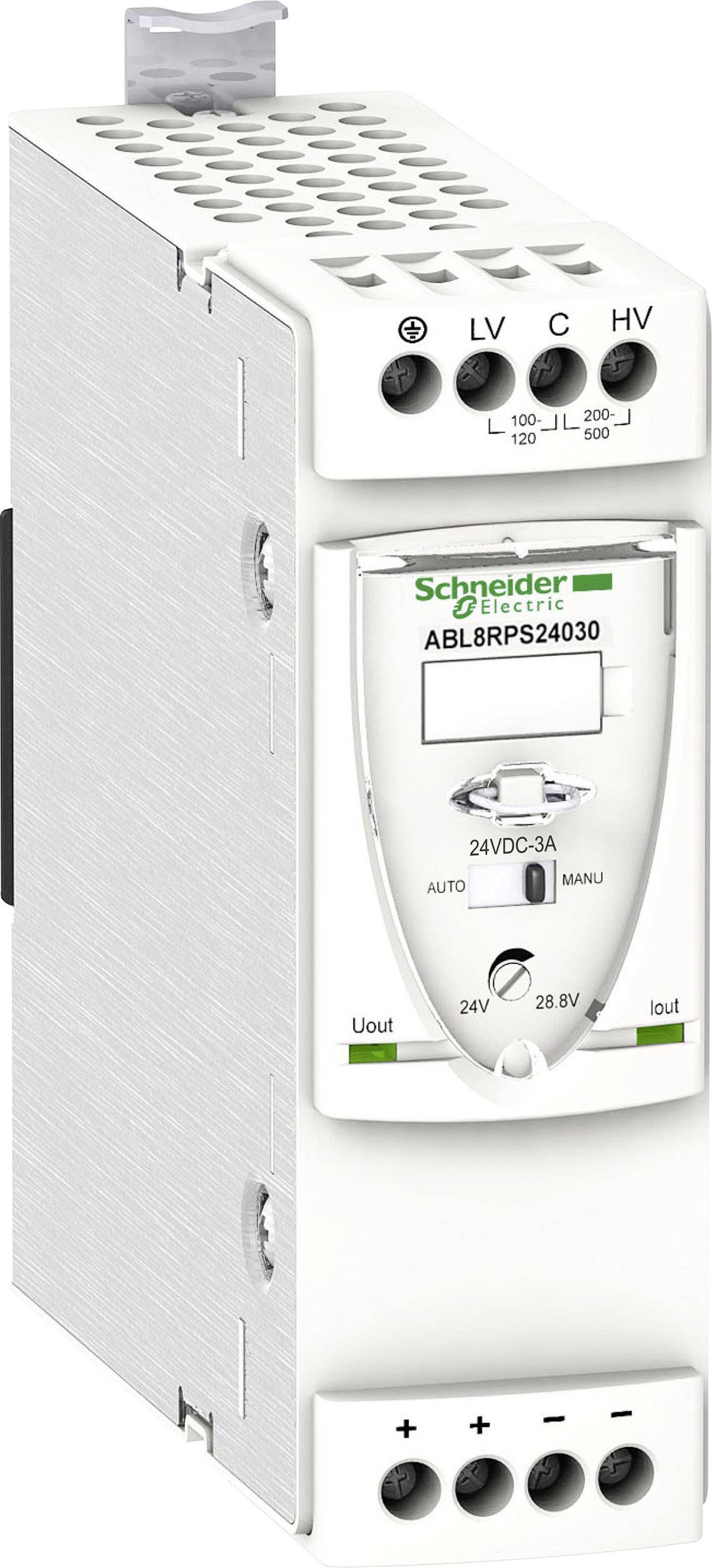

Schneider Electric ABL8RPS24030 Rail mounted PSU (DIN) 3 A 72 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V
- Output voltage
24 V DC
- Input voltage (max.)
500 V
- Max. output current
3 A
- Output current (max.) - rounded
3 A
72 W
- Connection
Punchdown block
- Weight
0
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
ABL8RPS24030
- Content
1 pc(s)
- Type
ABL8RPS24030
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1667422 Schneider Electric ABL8RPS24030 Rail mounted PSU (DIN) 3 A 72 W Content 1 pc(s)
Description
The power supply is particularly suitable for direct voltage supply in automation applications designed and is characterised by its robustness. Output: 24VDC with 3 A/72 W adjustable output voltage: 24-28.8 VDC overload: additional 50% performance by boost function behavior in the case of a short adjustable: manual or automatic reset input voltage: 100-120/200-500 V AC (50/60 Hz)-Universal connection of N-L or L1-L2-with PFC filter in accordance with EN 61000-3-2 - 2 LEDs for status messages-casing made of metal for DIN rail mounting with unlocking lever-Working Principle: electronic billing increments
