Schneider Electric ABLM1A24004 Power supply unit 0.4 A 10 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
14-day return policy included
Technical specifications
- Product type
Power supply unit
- Max. output current
0.4 A
- Output current (max.) - rounded
400 mA
10 W
- Manufacturer part #
ABLM1A24004
- Content
1 pc(s)
- Type
ABLM1A24004
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2933976 Schneider Electric ABLM1A24004 Power supply unit 0.4 A 10 W Content 1 pc(s)
Datasheet 2933976 Schneider Electric ABLM1A24004 Power supply unit 0.4 A 10 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2933976 Schneider Electric ABLM1A24004 Power supply unit 0.4 A 10 W Content 1 pc(s)
Information
Information 2933976 Schneider Electric ABLM1A24004 Power supply unit 0.4 A 10 W Content 1 pc(s)
Information 2933976 Schneider Electric ABLM1A24004 Power supply unit 0.4 A 10 W Content 1 pc(s)
Information 2933976 Schneider Electric ABLM1A24004 Power supply unit 0.4 A 10 W Content 1 pc(s)
Information 2933976 Schneider Electric ABLM1A24004 Power supply unit 0.4 A 10 W Content 1 pc(s)
Description

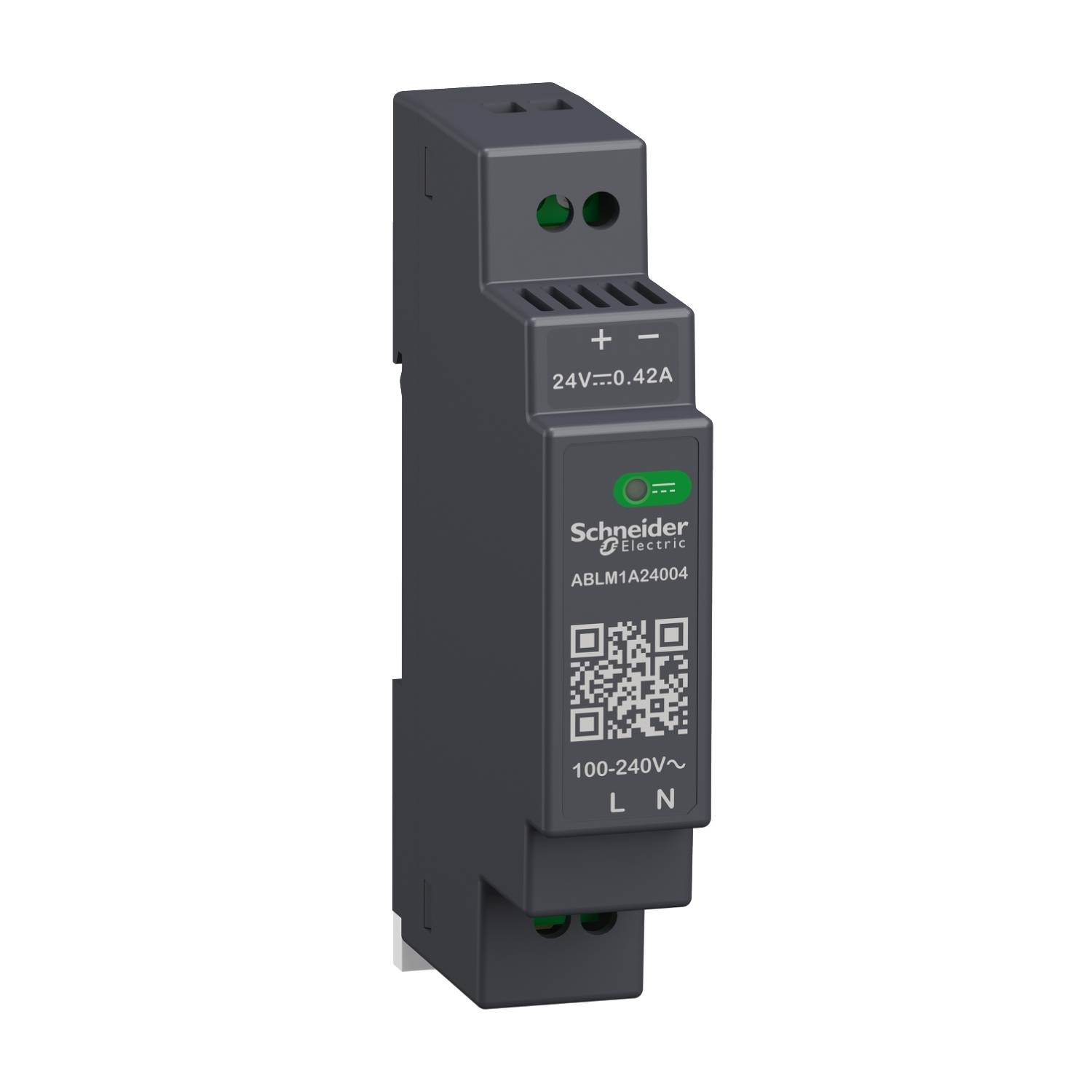

Power supply Modicon series MODULAR for applications in industry as well as commercial and residential buildings. Output: 24V/0.4A. Power rating 10W. Plastic case snaps onto a DIN rail, or onto a mounting plate. Electronic clocking principle. Possible operating temperature up to +70°C. Casing color is dark gray. Input below, outputs on top of the device. Input voltage 100-240 VAC (50/60 Hz). Access to documentation via QR code on the device. IEC/EN 62368-1 compliant, CE, CB-SCHEME,cULus,cURus,RCM,EAC. The Modicon ABLM Modular series includes power supplies with output voltages of 5VDC, 12VDC or 24VDC.
