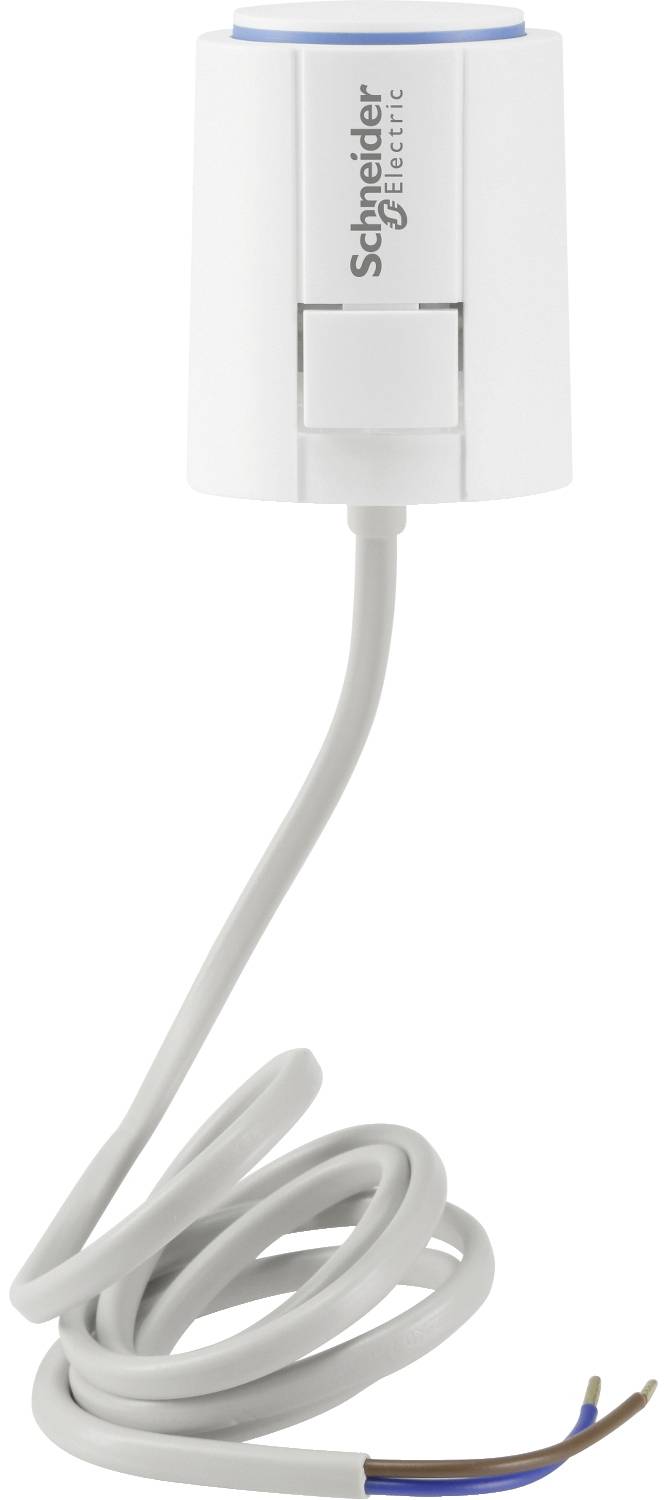

Schneider Electric Actuator thermal

Thermoelectric actuator 24 V. Thermoelectric actuator for opening and closing of valves. For the 2-point or PWM-control of heating, air-conditioning and ventilation systems, individual room regulation of panel heating, control of heating circuit distributors. For radiators, convection heaters, cooling blankets. Controlled by the heating actuator REG-K/6x24/230/0.16A, Fan Coil actuator REG-K or a room temperature controller (230 V) with 2-point or PWM output. Valve adapters enable compatibility with a variety of valve bases and heating circuit distributors. Functions: Initial opening function: The drive is set to open without current at the factory. This allows the heating to be operated during the shell phase. Closed without current Function display (open, close, intermediate) Settings control Pluggable connection cable. Pluggable mounting. Supply voltage: 24 V. Starting current: Max. 350 mA for max. 100 ms. Power consumption: 1 W. Hub: Approx. 4 mm. Operating time 3.5 min for 4 mm. Positioning force: 100 N ± 5 %. Temperature of circulating medium: 0-100°C. IP 54/II in all installation positions. Connection cable: 1 m, 2x0.75 mm2 can be plugged Dimensions: 59.2x44.3x56 mm (HxWxD). Colour: Polar white.
