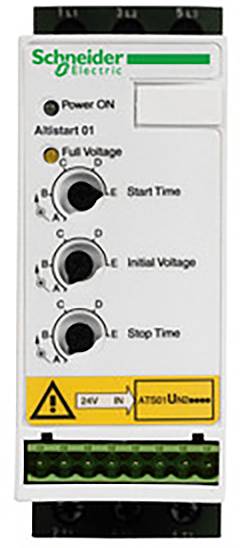

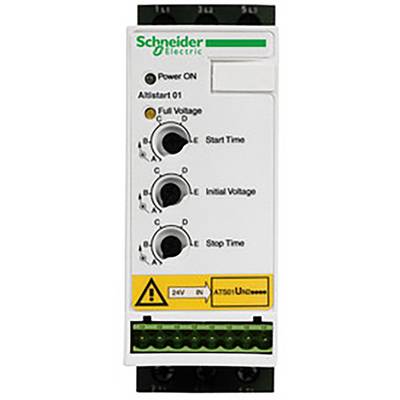

Schneider Electric ATSU01N206LT ATSU01N206LT Soft starter

The Altistart U01 is a soft start/soft stop device for 3-phase asynchronous motors. It is primarily intended for combination with TeSys U-Starter Controllers. It can be used for a motor with a nominal power of up to 3 kW or 3 HP for 3 phases (200 V to 480 V AC) and up to 6 A. With a width of 45 mm, it is one of the smallest soft starters on the market. It can be installed almost anywhere. It has an integrated bypass that reduces noise and heat dissipation. The protection class is IP20. It weighs 0.34 kg and has the following dimensions: 45 mm wide, 234 mm high, 150 mm deep. The Altistart U01 is designed for the following simple applications: Conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machines. It complies with the standards IEC/EN 60947-4-2 and is certified according to UL, CSA, C-Tick and CCC and the Certification. It can be easily combined with a TeSys U controller with the help of the power connector VW3G4104. It can be easily installed on a DIN rail. Altistart 01 combines simplicity with simple cabling, fast configuration and efficiency. Reduced machine wear and maintenance times optimize operation. Together with the TeSys model U it offers a unique motor starter solution.
