Buy Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module

Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module-0

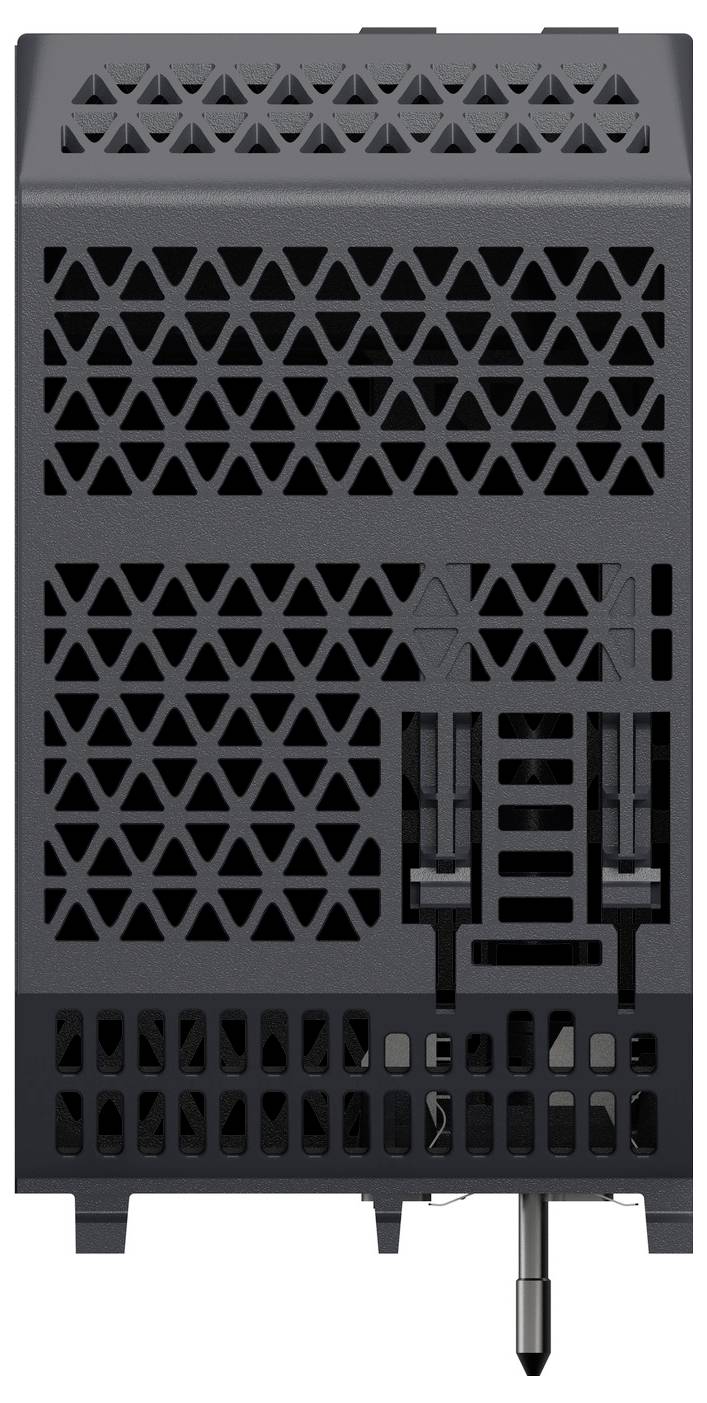

Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module-1

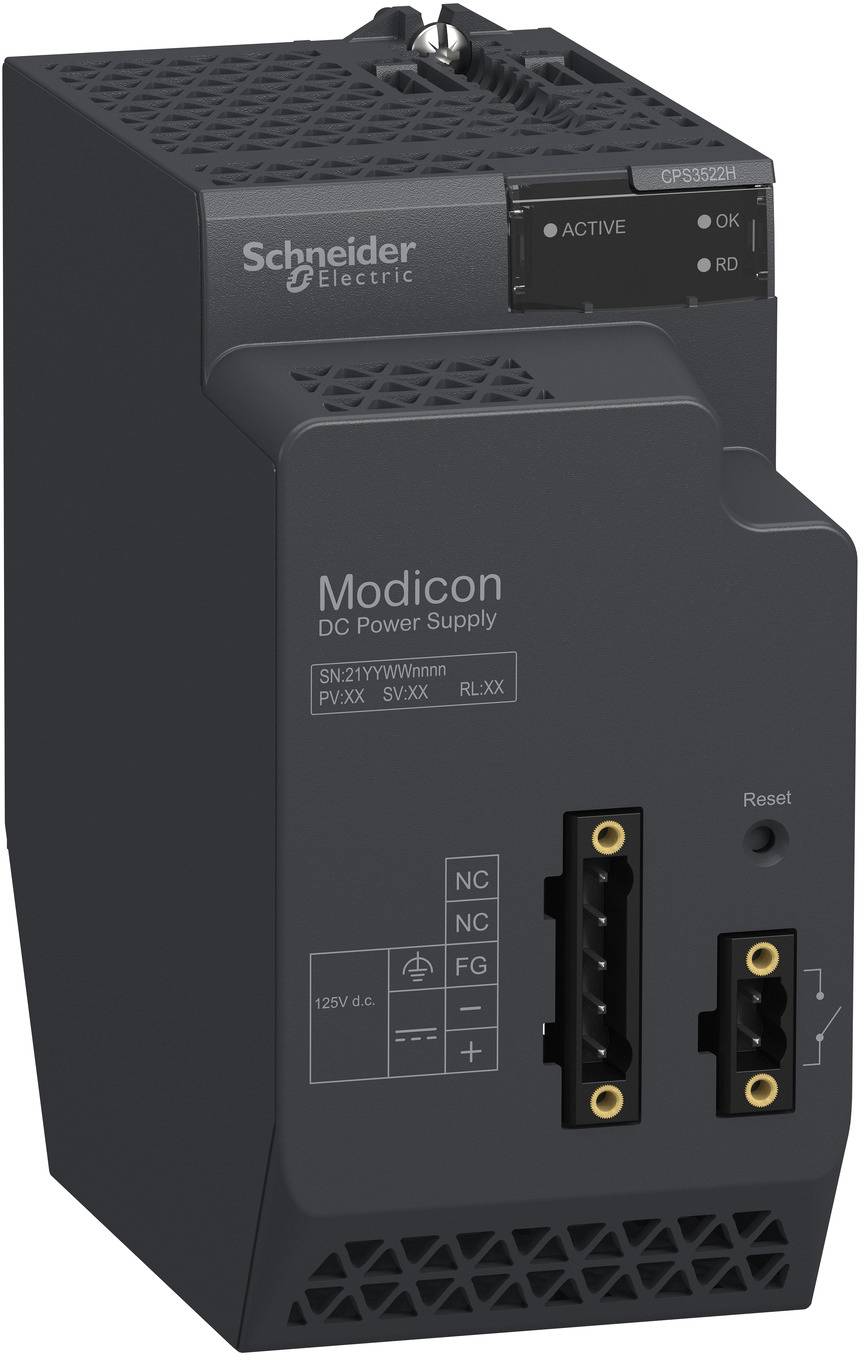

Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module-2

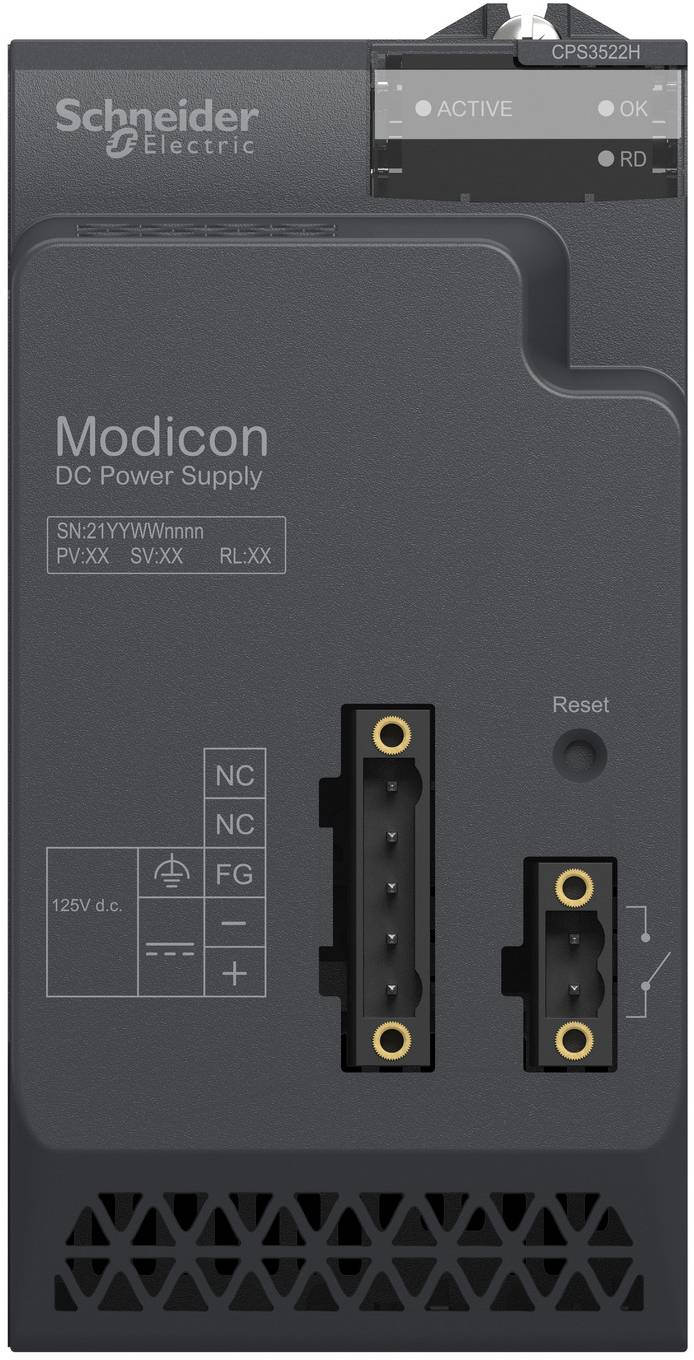

Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module-3

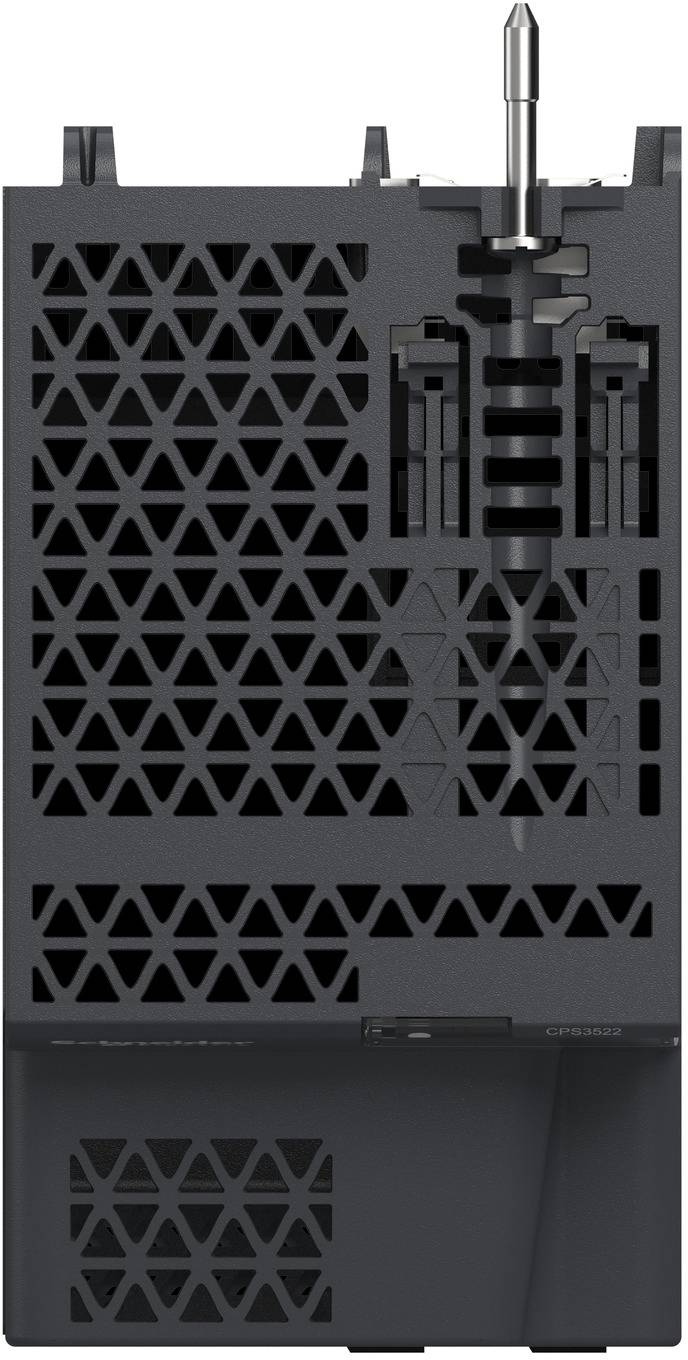

Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module-4

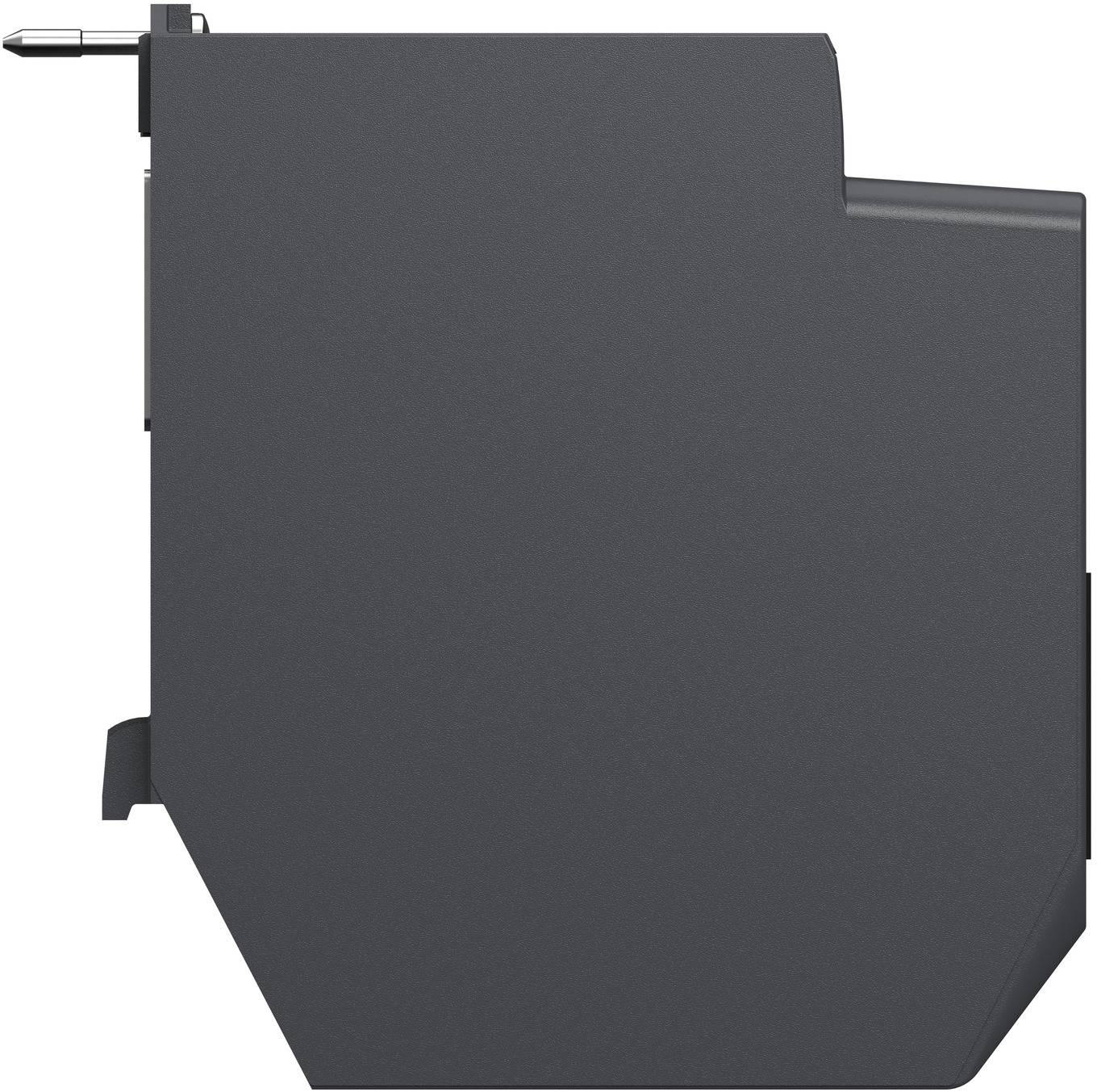

Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module-5

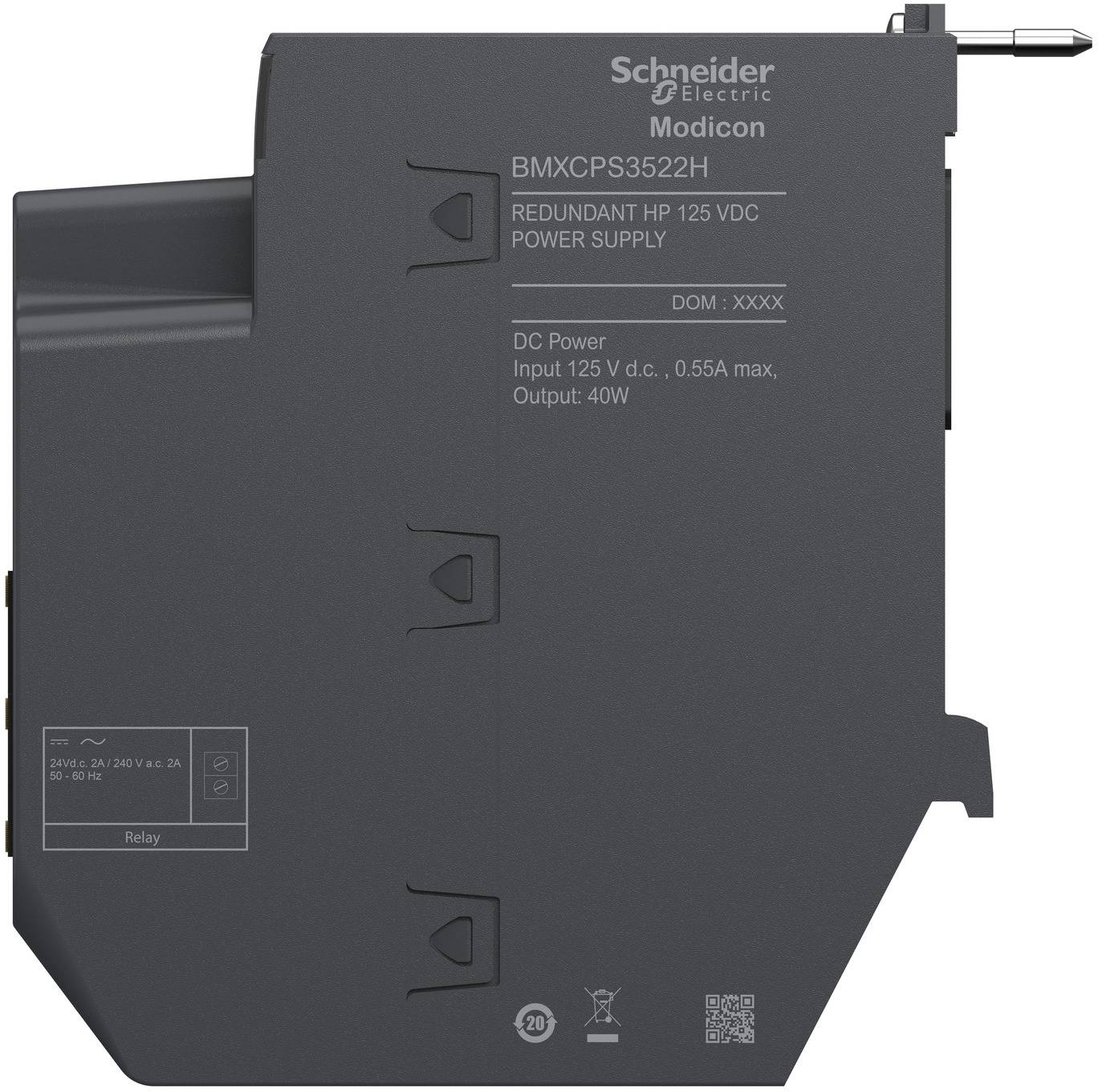

Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module-6

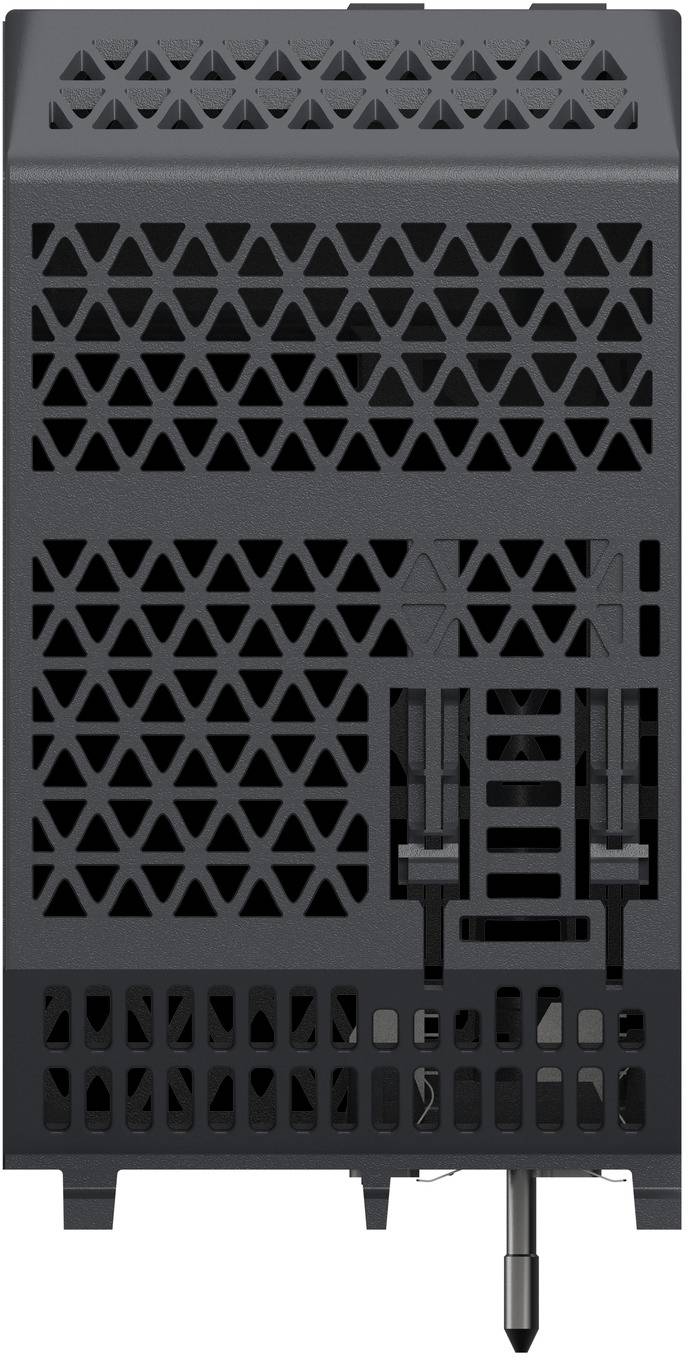

Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module-7

1/8

Datasheet (PDF)

Dispatches on Mon, 5 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,659.66 / piece)

€ 1,659.66

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Power supply module

Type: BMXCPS3522H

Manufacturer part #: BMXCPS3522H

: 68 mm

: 104 mm

: 99 mm

: FALSE

: AC/DC

: 40 W

: FALSE

: 3.3-24 V

: 3.3-24 V

: 125-125 V

: 125-125 V

: 4.5 A

: 0.6 A

: 0.6 A

: AC/DC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3343764 Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module

User & Safety Instructions

User & Safety Instructions 3343764 Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module

Information

Repairability/durability data sheet 3343764 Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module

Conformity certificate

Conformity certificate 3343764 Schneider Electric BMXCPS3522H BMXCPS3522H Power supply module

Description

This power supply for harsh environments is part of the Modicon X80 series, a set of common inputs and outputs for Modicon M340 and Modicon M580. This power supply module has a primary voltage of 125 V DC for harsh environments for building redundant architectures. This robust product can be used in harsh environments and operate in an extended temperature range from -25°C to +70°C. It is equipped with a 2-pin plug for the alarm relay, a 5-pin plug for the power supply and a protective earth for the electrical connection. It is an IP20 certified product. This product is certified by CE, UL, CSA, RCM, EAC and Merchant Navy and meets the standards EN 61000-6-5 and EN 61850-3. A set of two removable terminal blocks with cage (5-way and 2-way) is included with the power supply. The product must be installed in an X80 module carrier and secured with 2 screws.

This text is machine translated.
