Schneider Electric C063S4FM Isolator switch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
Width
327 mm
Height
280 mm
Content
1 pc(s)
Type
C063S4FM
Datasheet (PDF)
Number
Total (€ 2,122.73 / piece)
€ 2,122.73
plus VAT.
Technical specifications
- Product type
Isolator switch
- Width
327 mm
- Height
280 mm
- Content
1 pc(s)
- Type
C063S4FM
- Dim
(W x H x D) 327 x 280 x 147 mm
- Depth
147 mm
- Operation type
manually
- Number of pins
4
Documents & Downloads
Datasheet
Datasheet 3343105 Schneider Electric C063S4FM Isolator switch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3343105 Schneider Electric C063S4FM Isolator switch 1 pc(s)
Information
Repairability/durability data sheet 3343105 Schneider Electric C063S4FM Isolator switch 1 pc(s)
Conformity certificate
Conformity certificate 3343105 Schneider Electric C063S4FM Isolator switch 1 pc(s)
Conformity certificate 3343105 Schneider Electric C063S4FM Isolator switch 1 pc(s)
Conformity certificate 3343105 Schneider Electric C063S4FM Isolator switch 1 pc(s)
Description

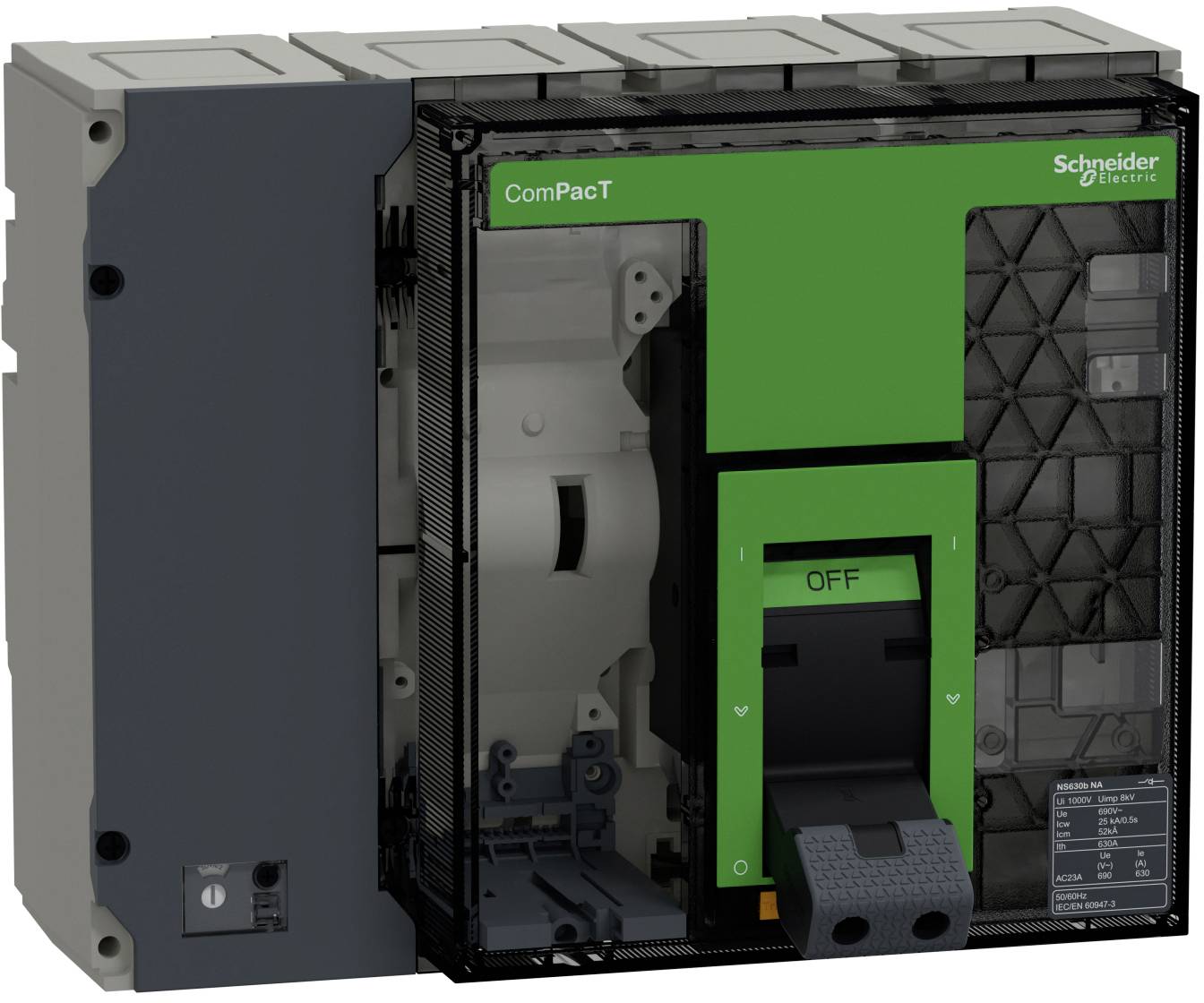

This compact NS630bNA is a 4-pole switch disconnectors. It is used to control and isolate power distribution circuits. This device is a fixed version and is operated manually. The operating current is 630 A (AC23A) and the operating voltage is 690 V 50/60 Hz. This basic version does not include the front and rear power connections. The dimensions are 327mm (width), 280mm (height) and 147mm (depth). This device complies with the standard IEC 60947-3.
