Schneider Electric C1032G100 C1032G100 Electronics module
EAN:
Part number:
Item no:
Product type
Electronics module
Number of pins
3
Content
1 pc(s)
Switch/button features
+ LED
Rated permanent current Iu
100 A
Datasheet (PDF)
Number
Total (€ 298.32 / piece)
€ 298.32
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Electronics module
- Number of pins
3
- Content
1 pc(s)
- Switch/button features
+ LED
100 A
3.0
Delayed
FALSE
1500
1500
Electronic release
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2935149 Schneider Electric C1032G100 C1032G100 Electronics module
Datasheet 2935149 Schneider Electric C1032G100 C1032G100 Electronics module
User & Safety Instructions
User & Safety Instructions 2935149 Schneider Electric C1032G100 C1032G100 Electronics module
Description

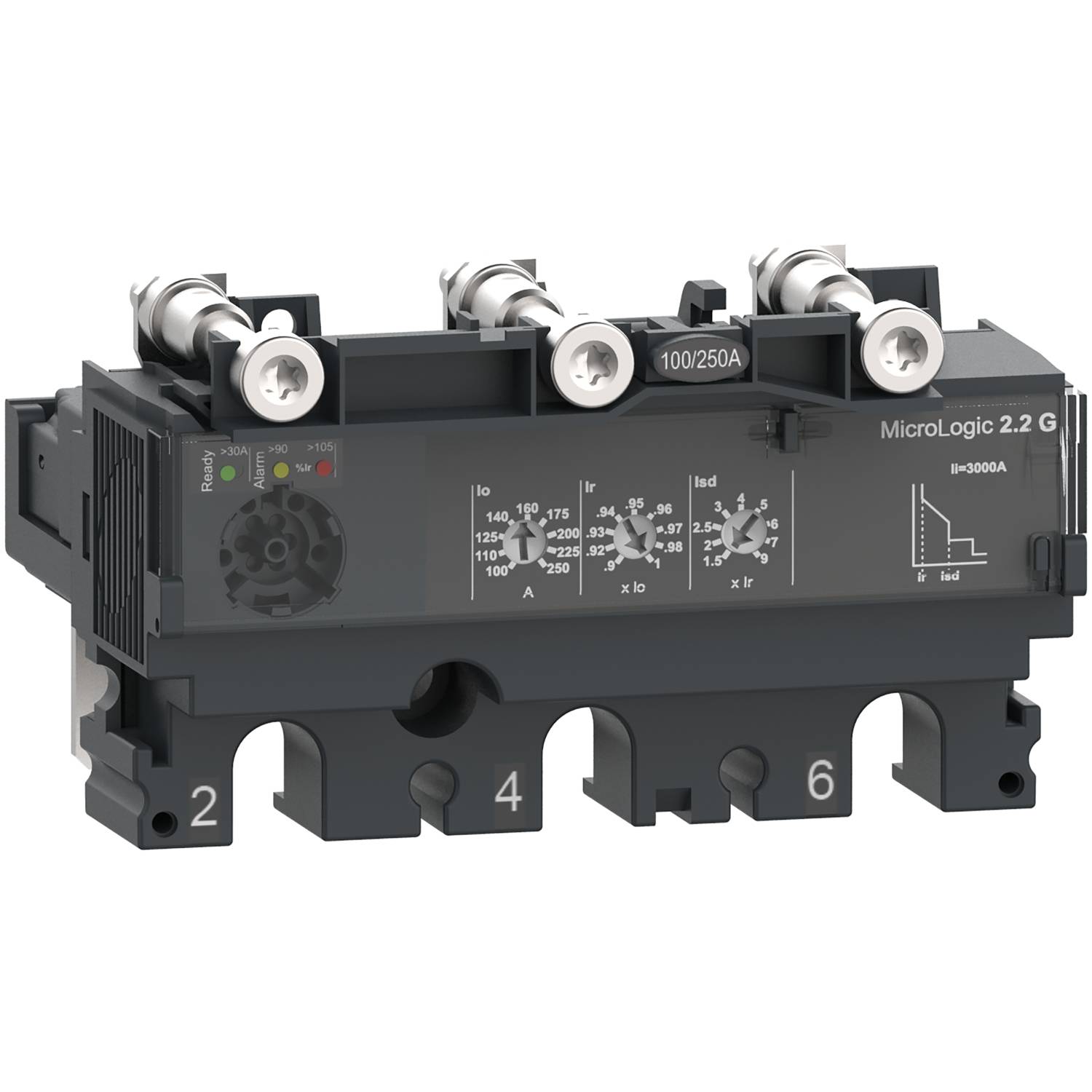

This MicroLogic 2.2 G is a 3-pin 3D-electronic trigger device, which is used in the Compact NSX 100/160/250 power circuit breakers. This electronic trip unit with a rated power of 100 A is the best choice for generator protection applications. They have an adjustable, long-term protection against overload. It also offers an adjustable short-term protection and a fixed instantaneous short-circuit protection. MicroLogic 2.2 G indicates overloads with alarm LEDs. The green Ready LED flashes when the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture, provided it is combined with the PowerTag NSX and Compact NSX Basic Switch.
