Schneider Electric C1034A100 Electronics module
EAN:
Part number:
Item no:
Product type
Electronics module
Content
10 pc(s)
Rated permanent current Iu
100 A
Number of poles
3.0
Short-circuit release function
Delayed
Sales and shipping:
Number (Package size 10 pc(s))
Total (€ 12,797.48 / piece)
€
Technical specifications
- Product type
Electronics module
- Content
10 pc(s)
100 A
3.0
Delayed
FALSE
1500
1500
Electronic release
AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3066216 Schneider Electric C1034A100 Electronics module
Description

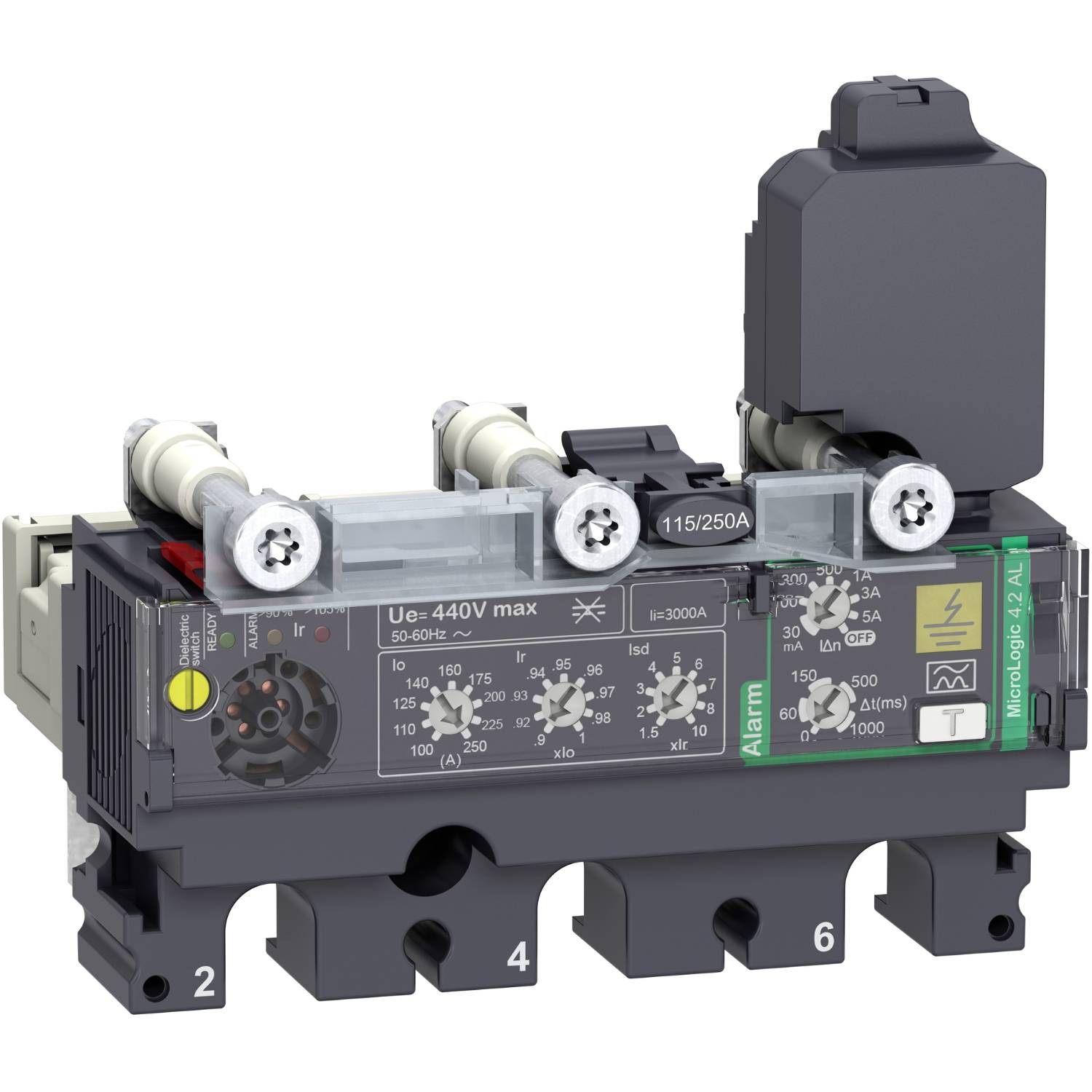

This MicroLogic 4.2 AL is an electronic 3P tripping unit used in Compact NSX 100/160/250 circuit breakers. This electronic trigger with a nominal power of 100 A is an optimal choice for all standard and special applications. It has an adjustable long-term protection against overload. It also offers an adjustable short-term protection and a fixed instantaneous short-circuit protection. MicroLogic 4.2 AL provides a no-tripping differential current alarm available on the terminal strip. MicroLogic 4.2 AL indicates overloads with alarm LEDs. The green Ready LED flashes when the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture, provided it is combined with the PowerTag NSX and Compact NSX Basic Switch.
This text is machine translated.
