Schneider Electric C1035E100 C1035E100 Electronics module
EAN:
Part number:
Item no:
Product type
Electronics module
Number of pins
3
Content
1 pc(s)
Switch/button features
+ status indicator
Rated permanent current Iu
100 A
Datasheet (PDF)
Number
Total (€ 940.34 / piece)
€ 940.34
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electronics module
- Number of pins
3
- Content
1 pc(s)
- Switch/button features
+ status indicator
100 A
3.0
Delayed
FALSE
150
1500
Electronic release
AC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2935157 Schneider Electric C1035E100 C1035E100 Electronics module
User & Safety Instructions
User & Safety Instructions 2935157 Schneider Electric C1035E100 C1035E100 Electronics module
Description

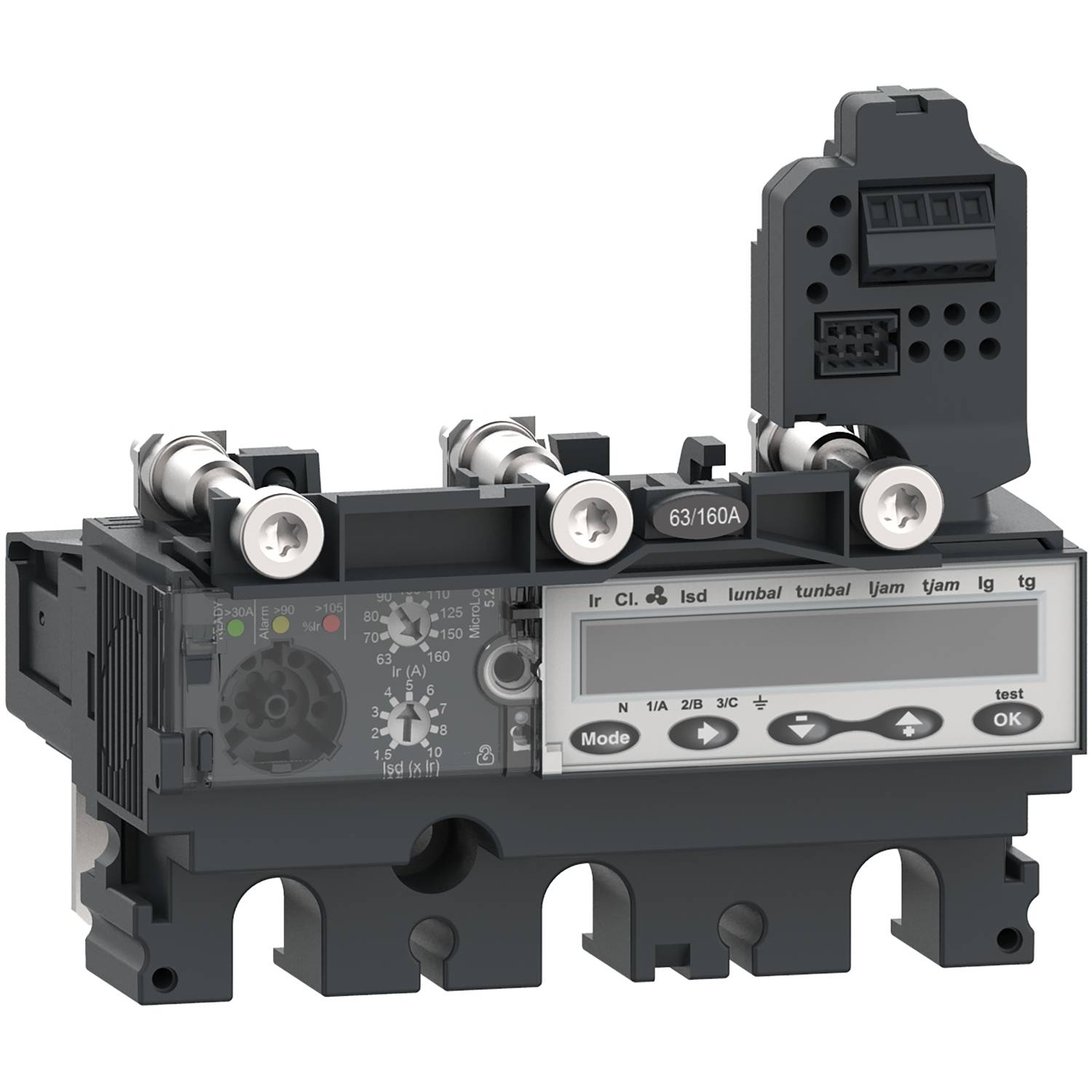

This MicroLogic 5.2 E (Energy) electronic trip unit is a 3-pole 3d tripping unit used in Compact NSX 100/160/250 circuit breakers. This electronic trigger with a nominal power of 100 A is an optimal choice for all standard and special applications. It has an adjustable long-term protection against overload. It also offers an adjustable short-time delayed short-circuit protection and instantaneous short-circuit protection. MicroLogic 5.2 E indicates overloads with alarm LEDs. The green Ready LED flashes when the circuit breaker is ready to trip. MicroLogic 5.2 E is equipped with a display module that enables power measurement and fine tuning. This product is part of our EcoStruxure Power architecture, provided it is combined with the PowerTag NSX and Compact NSX Basic Switch.
