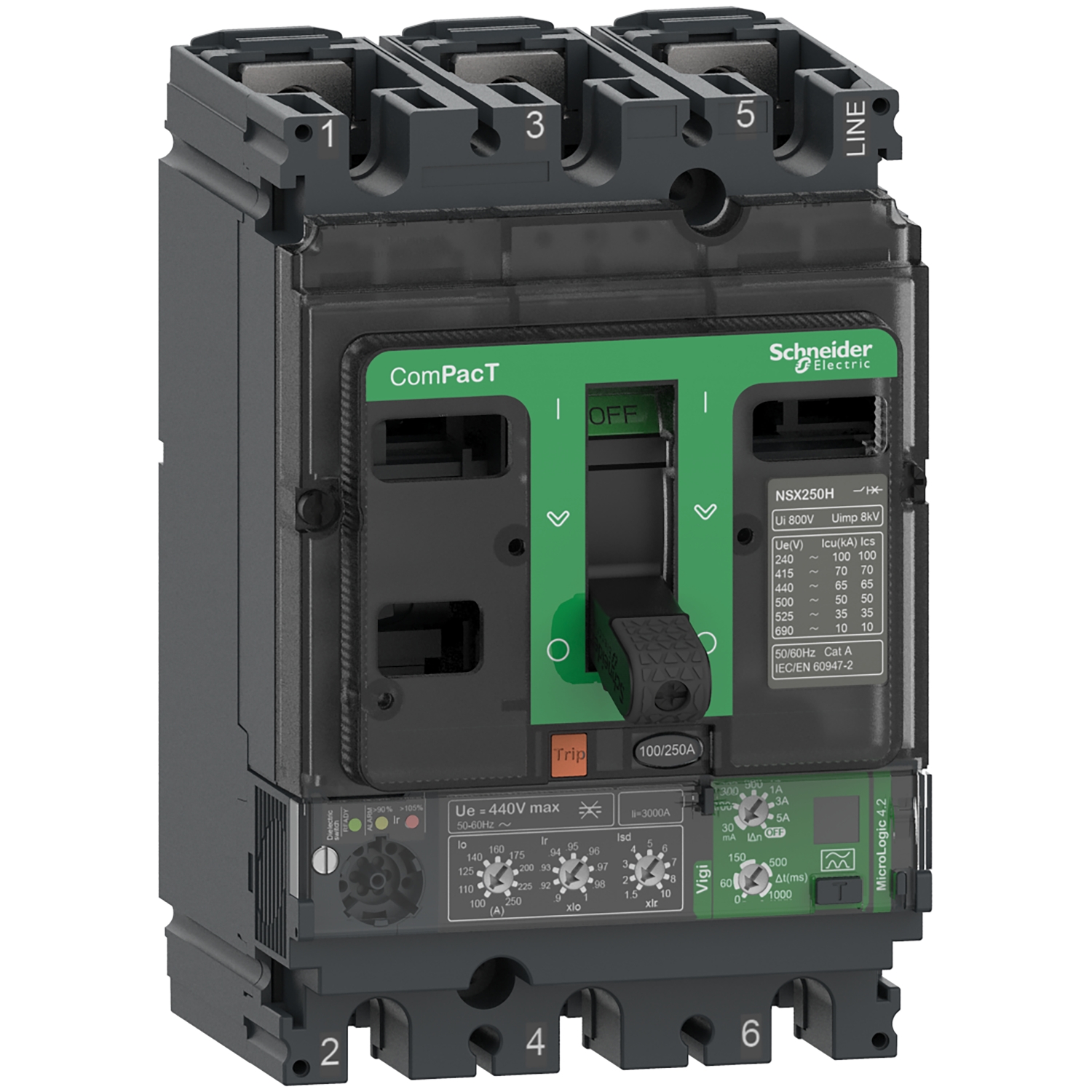

Schneider Electric C10N34V100 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 105 x 161 x 86 mm
EAN:
Part number:
Item no:
Product type
Circuit breaker
Type
C10N34V100
No. of pins
3-pin
Switching voltage (max.)
440 V AC
Mounting type
Fixed
Datasheet (PDF)
Number
Total (€ 1,373.95 / piece)
€ 1,373.95
plus VAT.
14-day return policy included
Technical specifications
- Product type
Circuit breaker
- Type
C10N34V100
- No. of pins
3-pin
- Switching voltage (max.)
440 V AC
- Mounting type
Fixed
- Depth
86 mm
- Width
105 mm
- Height
161 mm
- Dim
(W x H x D) 105 x 161 x 86 mm
- Content
1 pc(s)
0
0
100 A
3
5
IP40
Front side
FALSE
Screw connection
Toggle
TRUE
50 kA
FALSE
TRUE
TRUE
Built-in device fixed built-in technique
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2927517 Schneider Electric C10N34V100 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 105 x 161 x 86 mm
Datasheet 2927517 Schneider Electric C10N34V100 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 105 x 161 x 86 mm
User & Safety Instructions
User & Safety Instructions 2927517 Schneider Electric C10N34V100 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 105 x 161 x 86 mm
User & Safety Instructions 2927517 Schneider Electric C10N34V100 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 105 x 161 x 86 mm
Description
The NSX100N is a complete fixed 3P 3D circuit breaker designed to optimize space requirements and breaking capacity. It is an optimum choice for all standard and special applications. The breaking capacity (ICU) is 50 kA eff. At 415 VAC, 50/60 Hz. The operating voltage is 440 VAC 50/60 Hz. This product has an electronic release device MicroLogic 4.2 Vigi with a rated power of 100 A and an integrated, adjustable differential current protection. MicroLogic 4.2 Vigi also offers customizable long-term and short-term protection features and fixed instantaneous protection. This 3-pole version (105 mm x 161 mm x 86 mm) comes with a variety of optional functions and accessories. It complies with international standards (IEC 60947), CCC, EAC and Marine specifications. Compact NSX100N is part of Schneider Electric's EcoStruxure power architecture.
