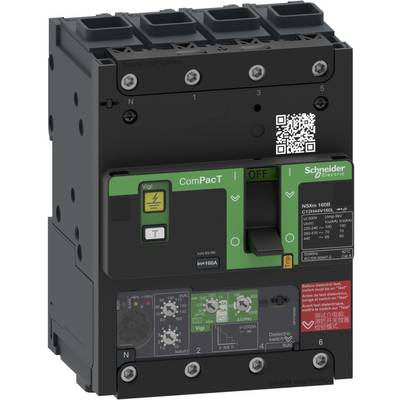

Schneider Electric C12B44V160L Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 108 x 144 x 80 mm
EAN:
Part number:
Item no:
Product type
Circuit breaker
Connection
Spring-loaded connector
Packaging type
Piece
Type
C12B44V160L
No. of pins
4-pin
Datasheet (PDF)
Number
Total (€ 1,315.13 / piece)
€ 1,315.13
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
C12B44V160L
- No. of pins
4-pin
- Switching voltage (max.)
440 V AC
- Mounting type
Fixed
- Connection
Spring-loaded connector
- Depth
80 mm
- Width
108 mm
- Height
144 mm
- Dim
(W x H x D) 108 x 144 x 80 mm
- Content
1 pc(s)
0
0
160 A
4
0
IP40
Front side
FALSE
Screw connection
Toggle
TRUE
25 kA
TRUE
TRUE
FALSE
Built-in device fixed built-in technique
FALSE
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2936016 Schneider Electric C12B44V160L Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 108 x 144 x 80 mm
Datasheet 2936016 Schneider Electric C12B44V160L Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 108 x 144 x 80 mm
User & Safety Instructions
User & Safety Instructions 2936016 Schneider Electric C12B44V160L Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 108 x 144 x 80 mm
User & Safety Instructions 2936016 Schneider Electric C12B44V160L Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 108 x 144 x 80 mm
Information
Information 2936016 Schneider Electric C12B44V160L Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 108 x 144 x 80 mm
Description
Compact NSXm160B is a complete fixed-mount 4P circuit breaker designed to optimize space requirements and breaking capacity. The breaking capacity (ICU) is 25 kA eff. At 415 VAC, 50/60 Hz. The operating voltage is 440 VAC 50/60 Hz. It introduces new features, such as EverLink connection technology. It offers built-in DIN rail and panel mounting capabilities as well as additional equipment with spring-loaded terminals that are externally visible. This 4-pole differential current circuit breaker (FI protection) is one of the smallest on the market. Dimensions are 108 mm (W) x 144 mm (H) x 80 mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
