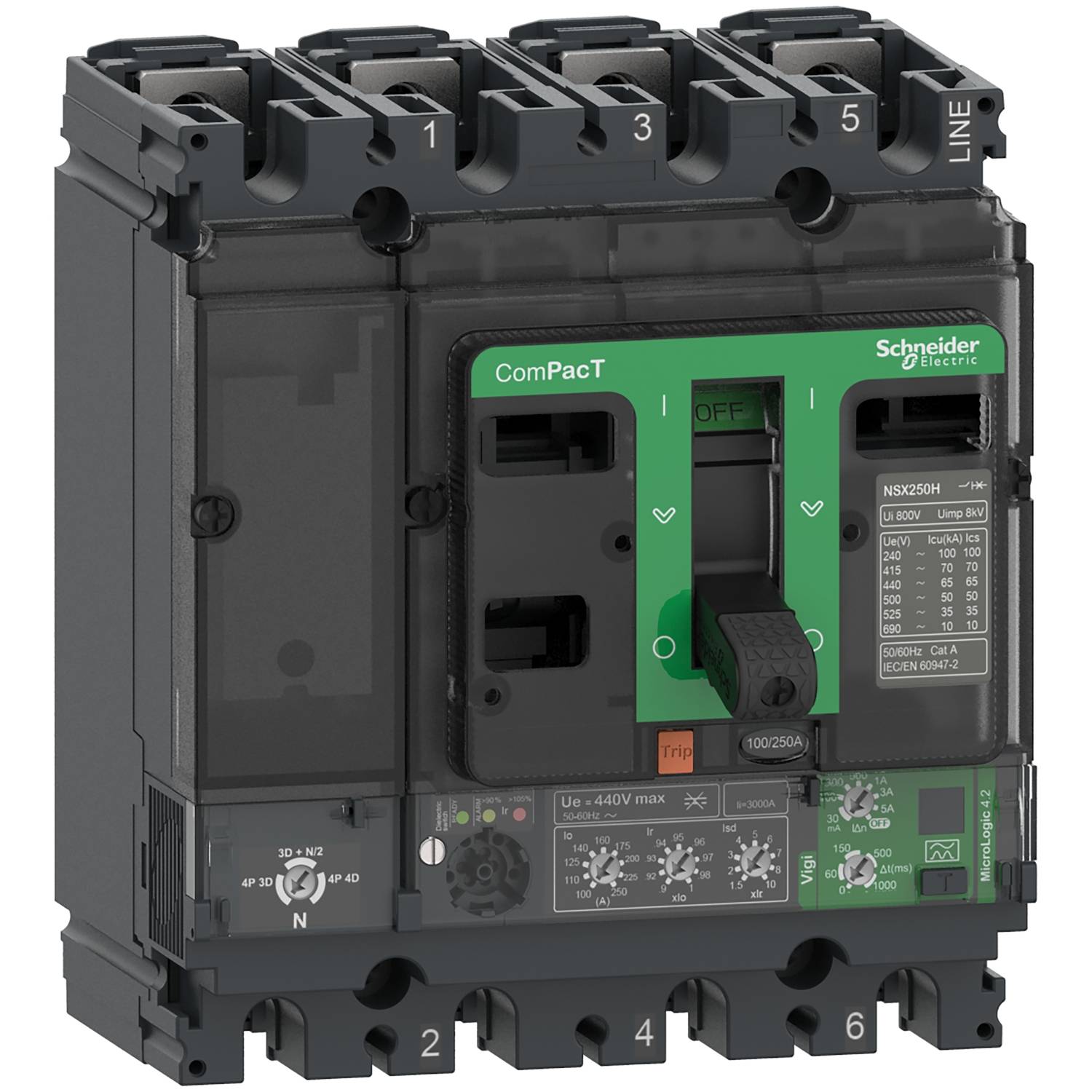

Schneider Electric C25F44V160 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 140 x 161 x 86 mm P
EAN:
Part number:
Item no:
Product type
Circuit breaker
Packaging type
Piece
Type
C25F44V160
No. of pins
4-pin
Switching voltage (max.)
440 V AC
Datasheet (PDF)
Number
Total (€ 2,105.04 / piece)
€ 2,105.04
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
C25F44V160
- No. of pins
4-pin
- Switching voltage (max.)
440 V AC
- Mounting type
Fixed
- Depth
86 mm
- Width
140 mm
- Height
161 mm
- Dim
(W x H x D) 140 x 161 x 86 mm
- Content
1 pc(s)
0
0
160 A
4
5
IP40
Front side
FALSE
Screw connection
Toggle
TRUE
36 kA
FALSE
TRUE
TRUE
Built-in device fixed built-in technique
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2928072 Schneider Electric C25F44V160 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 140 x 161 x 86 mm P
Datasheet 2928072 Schneider Electric C25F44V160 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 140 x 161 x 86 mm P
User & Safety Instructions
User & Safety Instructions 2928072 Schneider Electric C25F44V160 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 140 x 161 x 86 mm P
User & Safety Instructions 2928072 Schneider Electric C25F44V160 Circuit breaker 1 pc(s) Switching voltage (max.): 440 V AC (W x H x D) 140 x 161 x 86 mm P
Description
This compact NSX250F is a complete fixed-mount 4P 4d circuit breaker designed to optimize space and breaking capacity. It is an optimum choice for all standard and special applications. The breaking capacity (ICU) is 36 kA eff. At 415 VAC, 50/60 Hz. The operating voltage is 440 VAC 50/60 Hz. This product has an electronic release device MicroLogic 4.2 Vigi with a rated power of 160 A and an integrated, adjustable differential current protection. MicroLogic 4.2 Vigi also offers customizable long-term and short-term protection features and fixed instantaneous protection. This 4-pole version (140 mm x 161 mm x 86 mm) comes with a variety of optional functions and accessories. It complies with international standards (IEC 60947), CCC, EAC and Marine specifications. Compact NSX250F is part of Schneider Electric's EcoStruxure power architecture.
