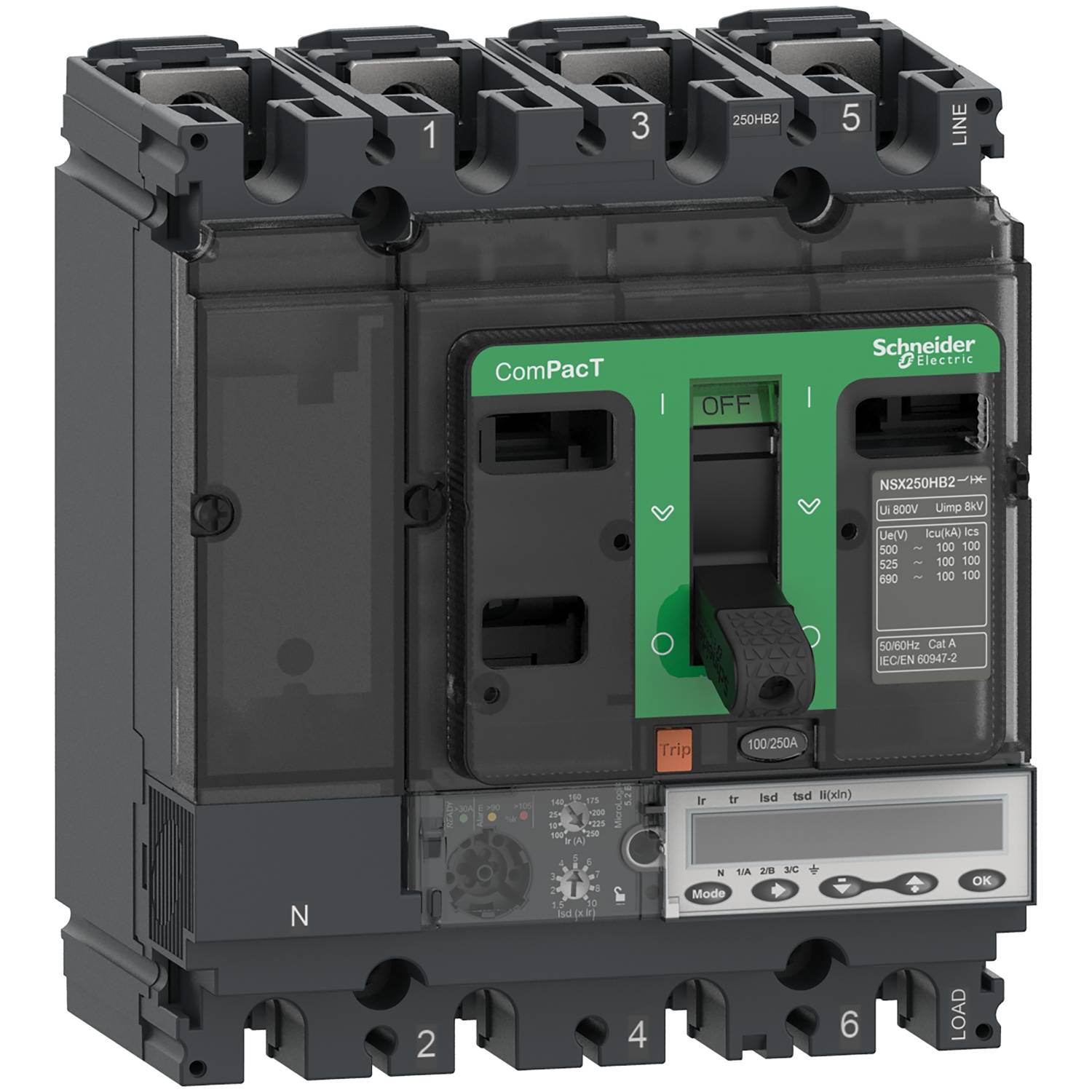

Schneider Electric C25V45E160 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 161 x 86 mm
EAN:
Part number:
Item no:
Product type
Circuit breaker
Type
C25V45E160
No. of pins
4-pin
Switching voltage (max.)
690 V AC
Mounting type
Fixed
Datasheet (PDF)
Number
Total (€ 2,310.08 / piece)
€ 2,310.08
plus VAT.
14-day return policy included
Technical specifications
- Product type
Circuit breaker
- Type
C25V45E160
- No. of pins
4-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Depth
86 mm
- Width
140 mm
- Height
161 mm
- Dim
(W x H x D) 140 x 161 x 86 mm
- Content
1 pc(s)
0
0
160 A
4
0
IP40
Front side
FALSE
Screw connection
Toggle
FALSE
FALSE
FALSE
TRUE
Built-in device fixed built-in technique
FALSE
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2928033 Schneider Electric C25V45E160 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 161 x 86 mm
Datasheet 2928033 Schneider Electric C25V45E160 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 161 x 86 mm
User & Safety Instructions
User & Safety Instructions 2928033 Schneider Electric C25V45E160 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 161 x 86 mm
User & Safety Instructions 2928033 Schneider Electric C25V45E160 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 161 x 86 mm
Information
Information 2928033 Schneider Electric C25V45E160 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 161 x 86 mm
Description
This compact NSX250HB1 is a complete fixed-mounted 4P 4d circuit breaker designed to optimize space requirements and switch-off capabilities. It is an optimum choice for all standard and special applications. The breaking capacity (ICU) is 85 kA eff. At 500 VAC 50/60 Hz and 75 kA eff. At 690 VAC 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product has an electronic trigger MicroLogic 5.2 E with a nominal power of 160 A. The trigger device MicroLogic 5.2 E offers an adjustable long-term, short-time and instantaneous protection. MicroLogic 5.2 E has an integrated display for fine-tuning and displaying the energy meter. This 4-pole version (140 mm x 161 mm x 86 mm) comes with a variety of optional functions and accessories. It complies with international standards (IEC 60947), CCC, EAC and Marine specifications. Compact NSX250HB1 is part of Schneider Electric's EcoStruxure power architecture.
